MRCOOL

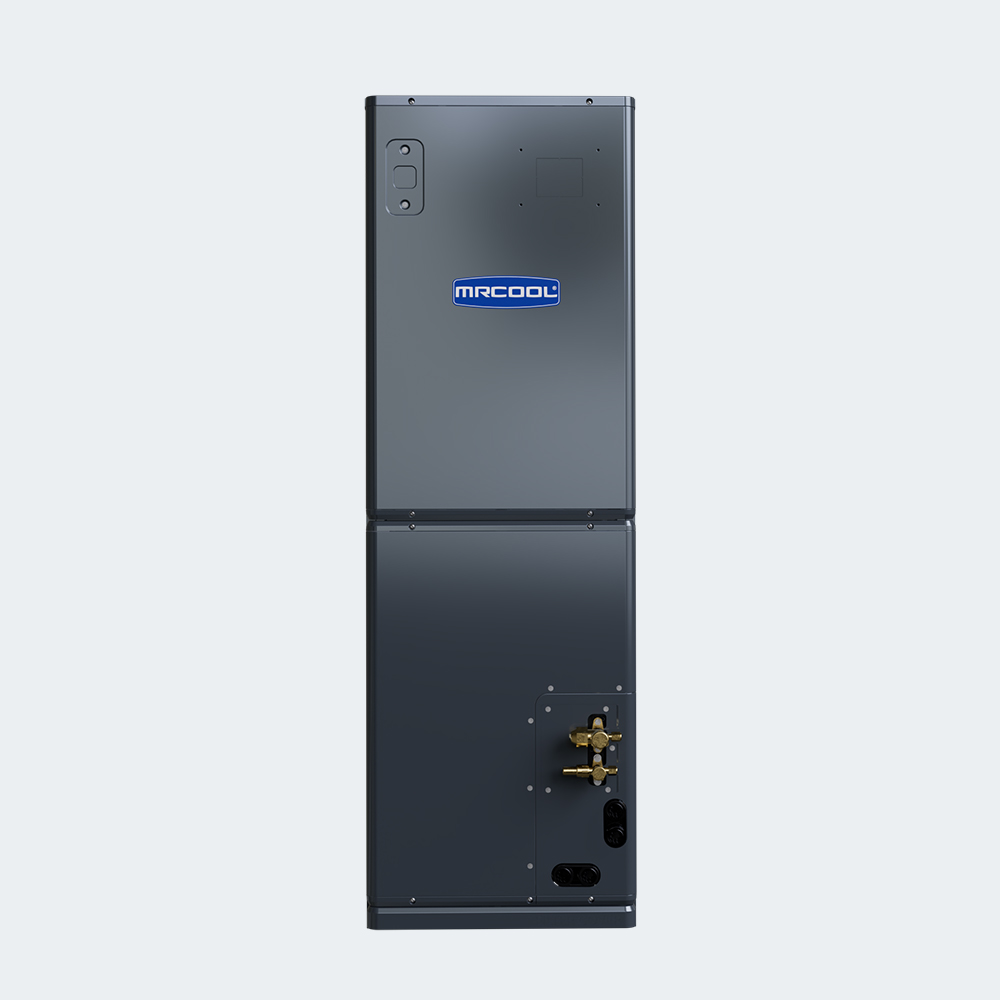

MRCOOL Universal Series 60,000 BTU Air Handler
5 Ton | R-454B | 115/208/230V
- 5 Ton capacity
- Uses R-454B refrigerant
- Runs on 115/208/230V power
Key Specifications
Product Overview
The MRCOOL® Universal® Series 60K Air Handler is built to deliver powerful, energy-efficient climate control for large residential spaces. No matter the season, it ensures consistent airflow and dependable indoor comfort—making it an ideal solution for homeowners seeking high-capacity performance without sacrificing efficiency.
Designed with installation versatility in mind, this air handler supports vertical, horizontal, and downflow configurations. Its compact footprint allows for easier placement in tight mechanical spaces, closets, attics, or basements—giving homeowners and contractors more flexibility during setup. To further simplify installation, the unit is fully compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately). This pre-charged, sealed line set eliminates the need for vacuuming or flaring, saving time, reducing labor, and minimizing the chance of installation error.
For enhanced performance in colder climates, the system also supports optional Universal® Series Heat Kits. These kits provide additional heating output when temperatures drop and serve as an emergency backup source of heat.
Engineered for durability and quiet operation, the 60K Air Handler features an M-shaped evaporator coil that increases the heat exchange surface area, boosts airflow, and helps maintain system efficiency. Constructed from 100% aluminum, the coil is corrosion-resistant, providing long-term reliability and reducing maintenance needs. Despite its power, the unit runs quietly—producing sound levels similar to a standard dishwasher or everyday conversation.
The MRCOOL® Universal® Series 60K Air Handler is backed by a 10-year parts warranty and a 2-year limited labor warranty, offering peace of mind and long-lasting value for your home.
Additional specifications
| UPC | 840255587860 |
|---|---|
| Series | Universal R-454B |
| Airflow (CFM) | 1801.1/1648.1/1500.9/1236.1/N\A |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14.5/10 |
| Max fuse / breaker (A) | 15 |
| Metering device | EXV |
| Max line set length (ft) | 246 |
| Filter type | Replaceable |
| Filter size | 20 x 20 x 1 |
| Mount type | Multi-Position |
| Sound level low (dBA) | 37 |
| Sound level high (dBA) | 60 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 10 KW / 15 KW / 20 KW |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Shipping W x H x D (in) | 25 x 59.84 x 31.1 |
| Shipping weight (lbs) | 238.32 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Universal Series Air Handler |
|---|---|
| Tonnage | 5 Ton |
| Sound Level | 60/57/54.5/37/N\A dBA |
Electrical & Fuel
| Voltage | 115/208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 21.5 x 55.94 x 21.5 |
|---|---|
| Weight | 188.05 lb |
| Color / Finish | Dark Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
