Key Specifications
Product Overview

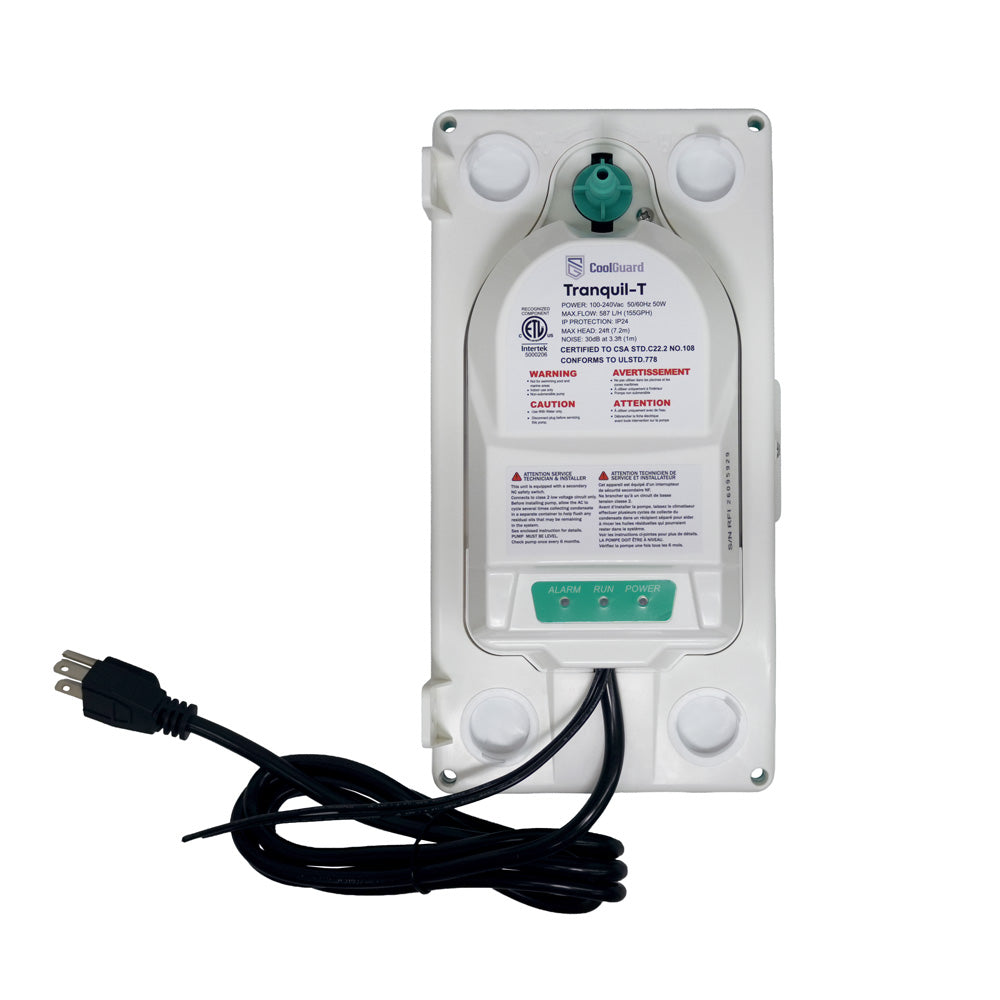

Doing the work of discharging condensation from the inside of your air handler, a condensate pump is critical to keep the internal hardware safe from water buildup within the system. Equipped with an automatic optical-level sensor switch, the CoolGuard Tranquil T Condensate Pump is an ETL-listed component that guarantees dependable and safe functionality. The 3 LED lights indicate the current operational mode at a glance, and has the option for a dual alarm system, ensuring you always know the pump’s status. Including a 6-foot power cord for easy installation, four 1-inch inlets, a removable 3/8” barbed check valve, and a max lift of 24ft., the CoolGuard Tranquil T Pump has everything you need and more to ensure your heating and cooling system stays dry and dependable, even when condensation forms on the coil. With a design that keeps sounds levels lower than 30 decibels, there’s no reason to look for another solution. Snag the CoolGuard Tranquil T Condensate Pump today.
Additional specifications
| UPC | 840433704270 |
|---|---|
| Series | CoolGuard |
| Cycle (Hz) | 50/60 |
| UL listed | Yes |
| ETL listed | Yes |
Technical Specifications
Performance
| System Type | Cooling Accessories |
|---|---|
| Sound Level | 30 dBA |
Electrical & Fuel
| Voltage | 100-240V |
|---|---|
| Phase | Single Phase |
Physical & Certifications
| Dimensions (W x H x D) | 5.7 x 5 x 11 |
|---|---|
| Weight | 2.932 lb |
| Color / Finish | Cyan/White |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
