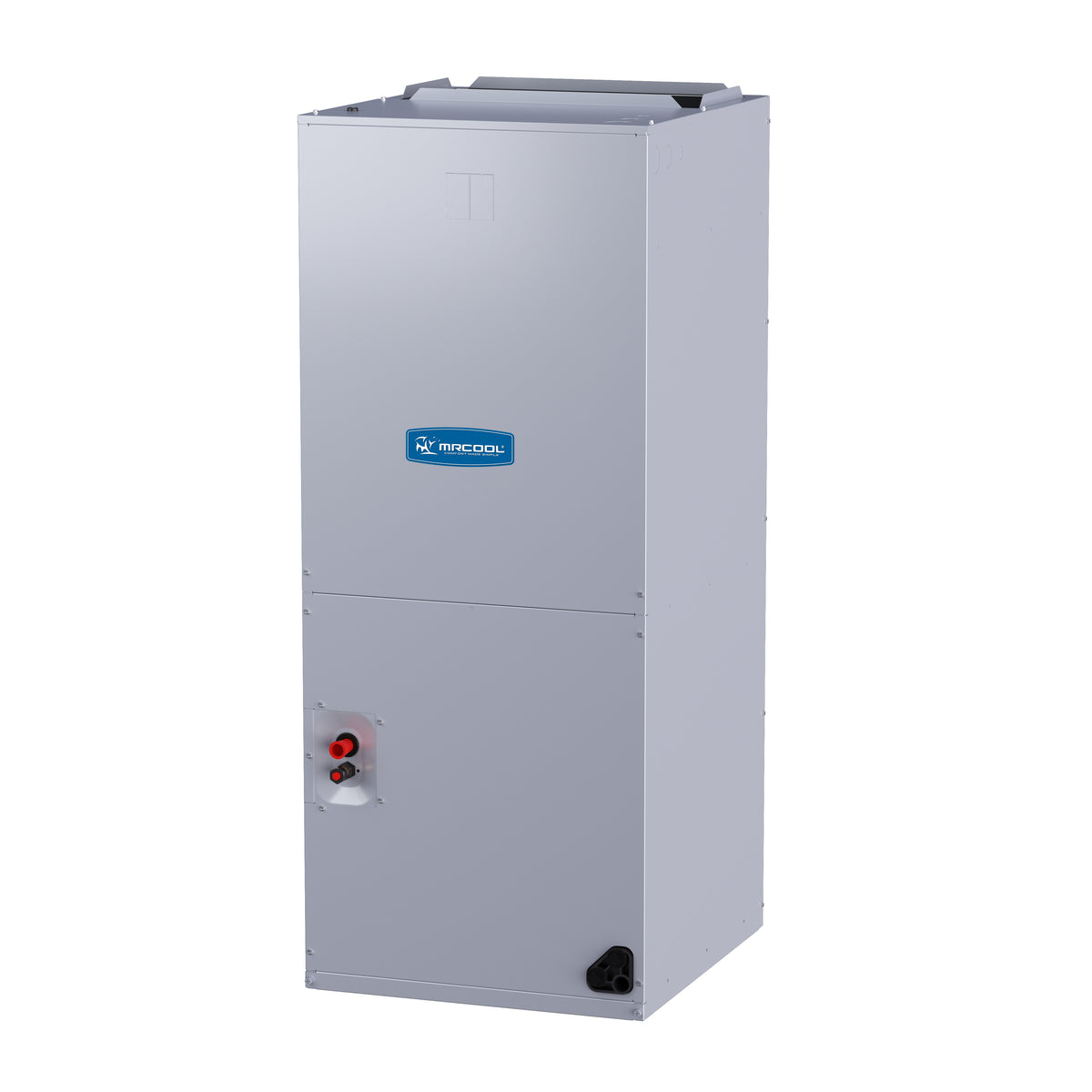

MRCOOL PRODIRECT Series 4 Ton BTU PSC Air Handler
R410a | 208/230V
- 48000 BTU cooling capacity
- Uses R410a refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The 4 Ton PRODIRECT™ Series PSC Air Handler is designed to enhance your home’s HVAC system with dependable, efficient performance. Compatible with cooling and heat pump applications, this air handler offers flexibility to suit various installation needs. With an impressive SEER2 rating of 15.2, it delivers energy-efficient operation that can help reduce your utility costs. This unit features corrosion-resistant all-aluminum tubes and fins, ensuring durability and longevity. The factory-sealed cabinet minimizes air leakage to 2% or less at 1.0-inch water column pressure, maintaining system efficiency. Its flexible design supports multi-positional installation, allowing it to fit in a variety of spaces and includes both horizontal and vertical condensate drain pans for easier installation. The 48K PRODIRECT™ Air Handler simplifies maintenance with easy access to the slide-out blower and coil components. For added heating capabilities, it accommodates optional heat kits ranging from 5 to 20 kW to meet your specific needs. Certified by AHRI and ETL-listed, this air handler meets high industry standards for performance and safety. MRCOOL® backs this unit with a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. Reliable, adaptable, and built for year-round comfort, the 4 Ton PRODIRECT™ Series PSC Air Handler is an excellent solution for your HVAC needs.
Features
- Multiposition installation
- Blower and coil easy slide out for ease of maintenance
- Evaporator Coil Tube Material: Aluminum
- Evaporator Coil Tube Size(in.): 9/32
- AHRI Listed & ETL Certified.
Additional specifications
| UPC | 840255585743 |
|---|---|
| Series | PRODIRECT Series PSC Air Handler |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 4.2 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | PSC |
| Blower motor HP | 1/2 |
| Aux heater included | N |
| Aux heater available | Y |
| Aux heater sizes (kW) | 5,7.5,10,15,20 |
Documents
Technical Specifications
Performance
| System Type | Mini Split Air Handler |
|---|---|
| Capacity | 48000 BTU |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410a |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 22 x 54 1/2 x 24 |
|---|---|
| Weight | 159 lb |
| Color / Finish | Silver |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
