MRCOOL

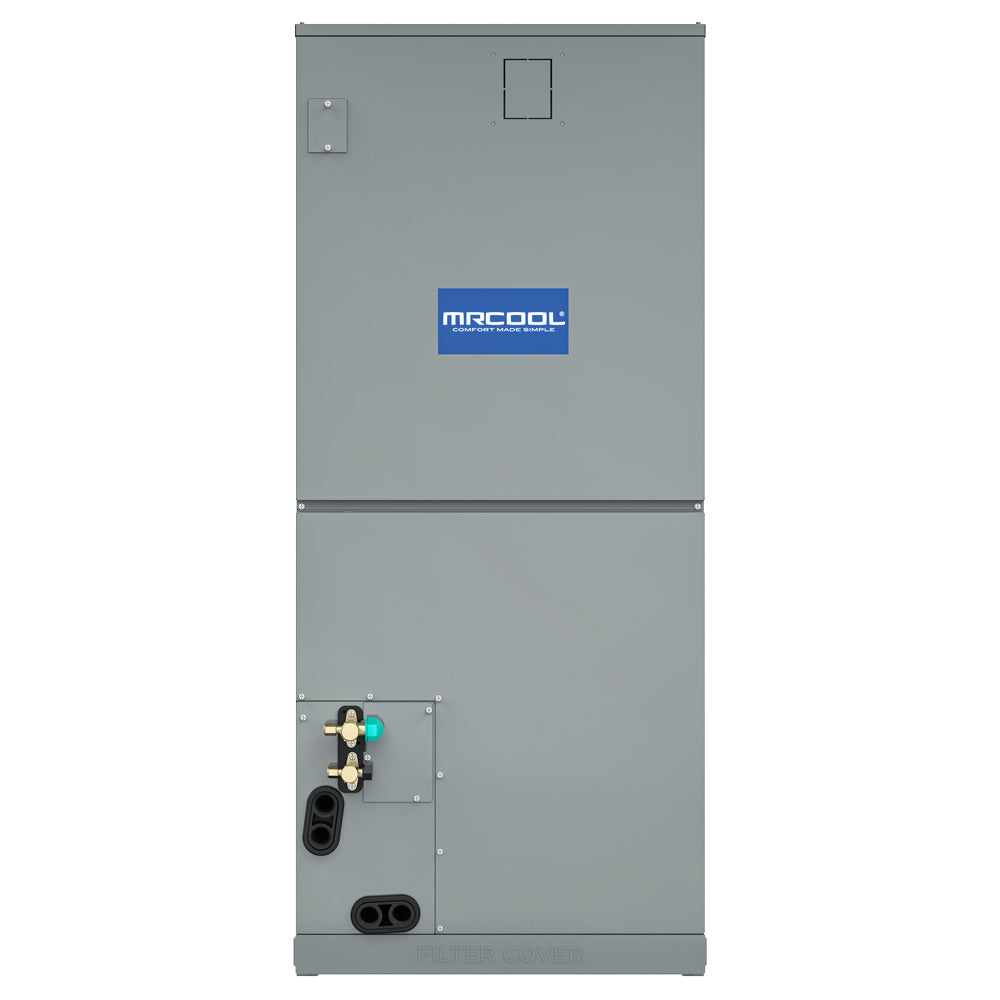

MRCOOL 60K MRCOOL® Hyper Heat Central Ducted Air Handler

Model: CENTRAL-60-HP-MUAH230A00 SKU: CENTRAL-60-HP-MUAH230A00

R-410A | 208-230V

55000 BTU cooling capacity
Uses R-410A refrigerant
Runs on 208-230V power

$1,370.00 Free Shipping

In Stock

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini Split Air Handler

Capacity 55000 BTU

Voltage 208-230V · Single Phase

Refrigerant R-410A

Overview

Product Overview

The 60K MRCOOL® Hyper Heat Central Ducted Air Handler offers an exceptional solution for your home's heating and cooling needs, regardless of the outdoor climate. Its efficiency results in utility cost savings, and it boasts a remarkable SEER2 rating of up to 15.3 and an HSPF2-4 rating of up to 9.4, attributable to its advanced heating capacity. Constructed with painted galvanized steel, this sturdy unit features a side-discharge layout, slide-out blower, self-diagnostics panel, and removable filters for easy upkeep. Effortless installation is possible for an HVAC technician, as the unit is designed to work with the optional MRCOOL® No-Vac® Quick Connect® Line Set. Pre-charged with eco-friendly R410-A refrigerant, this line set does away with the need for vacuuming or flare welding, is kink-resistant, and allows for various installation configurations. The handler also includes a wired thermostat and wireless remote, with an additional heat kit available for purchase if needed. In the rare occurrence of operational issues, the air handler is supported by a reassuring 10-year warranty for parts and labor, providing peace of mind. Moreover, there is no need for registration to access the included labor warranty.

Features

Enhanced Heating Capacity
Includes features such as timer mode, auto cool mode, fan only mode, and more
Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
Multi-Position Installation
Variable Speed
Optional Heat Kit
Compact, Side Discharge Design
R-410A environmentally friendly refrigerant
Follow Me™ Function
Easy-Access Removable Filter

Additional specifications

UPC	840255553148
Series	Central Ducted Hyper Heat
Heating capacity (BTU/h)	59000
Airflow (CFM)	1805.88/1582.35/1358.82/1135.29
Cycle (Hz)	60
Min circuit ampacity (A)	9
Max fuse / breaker (A)	15
Inverter	DC
Max line set length (ft)	213.25
Sound level low (dBA)	41.5
Sound level high (dBA)	51
Aux heater included	No
Aux heater available	Yes
Aux heater sizes (kW)	10kW, 15kW, 20kW
AHRI certified	Yes
UL listed	Yes
Shipping W x H x D (in)	27.36 x 56.60 x 27.76
Shipping weight (lbs)	190

Documents

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Technical Specifications

Performance

System Type	Mini Split Air Handler
Capacity	55000 BTU
Sound Level	45.5 dBA

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-410A
Connection Size	Liquid 3/8" / Suction 7/8"

Physical & Certifications

Dimensions (W x H x D)	24.49 x 52.99 x 21.02
Weight	164.02 lb

Shipping & Delivery

Orders typically ship within 1-3 business days. Freight items are delivered by appointment to a curbside address; someone must be present to receive and inspect the shipment. Inspect for damage before signing. Returns are accepted within 30 days on unused, uninstalled equipment in original packaging -- return shipping and a restocking fee may apply. See our Shipping Policy and Return & Refund Policy for full terms.

Manufacturer Warranty

Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.

Professional Installation Recommended

Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
