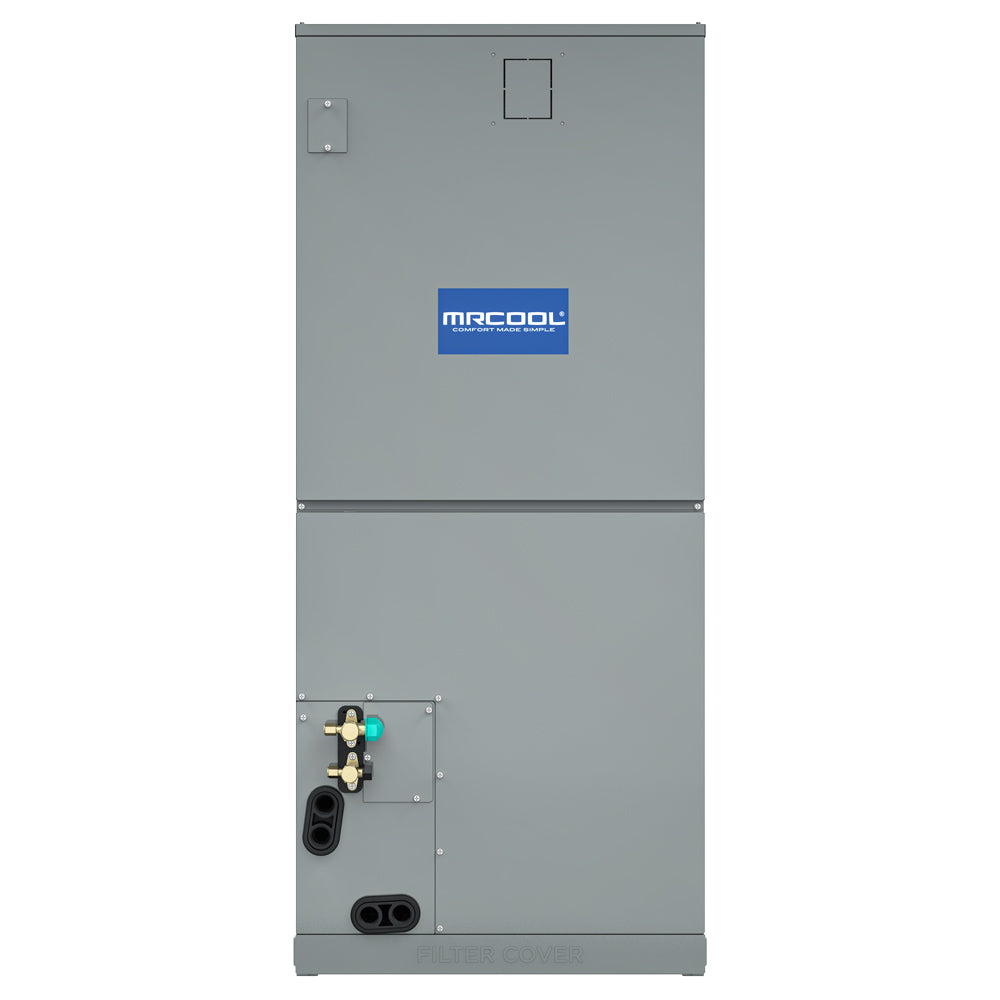

MRCOOL 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
5 Ton | 115/208-230V
- 5 Ton capacity
- Runs on 115/208-230V power
Key Specifications
Product Overview
The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward.
This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact. For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities.
The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control.
This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.
Additional specifications
| UPC | 840255586498 |
|---|---|
| Series | VersaPro® Central Ducted Air Handler |
| Airflow (CFM) | 1807.00/1583.33/1359.67/1136.00 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14.5/11.0 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 246 ft |
| Filter type | Replaceable |
| Filter size | 23x20x1 |
| Sound level low (dBA) | 34.5 |
| Sound level high (dBA) | 56 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 10kW/15kW/20kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 26.77 x 56.5 x 27.95 |
| Shipping weight (lbs) | 190.92 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 5 Ton |
| Sound Level | 34.5-56 dBA |
Electrical & Fuel
| Voltage | 115/208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 24.49 x 52.99 x 21.02 |
|---|---|
| Weight | 162.92 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
