MRCOOL

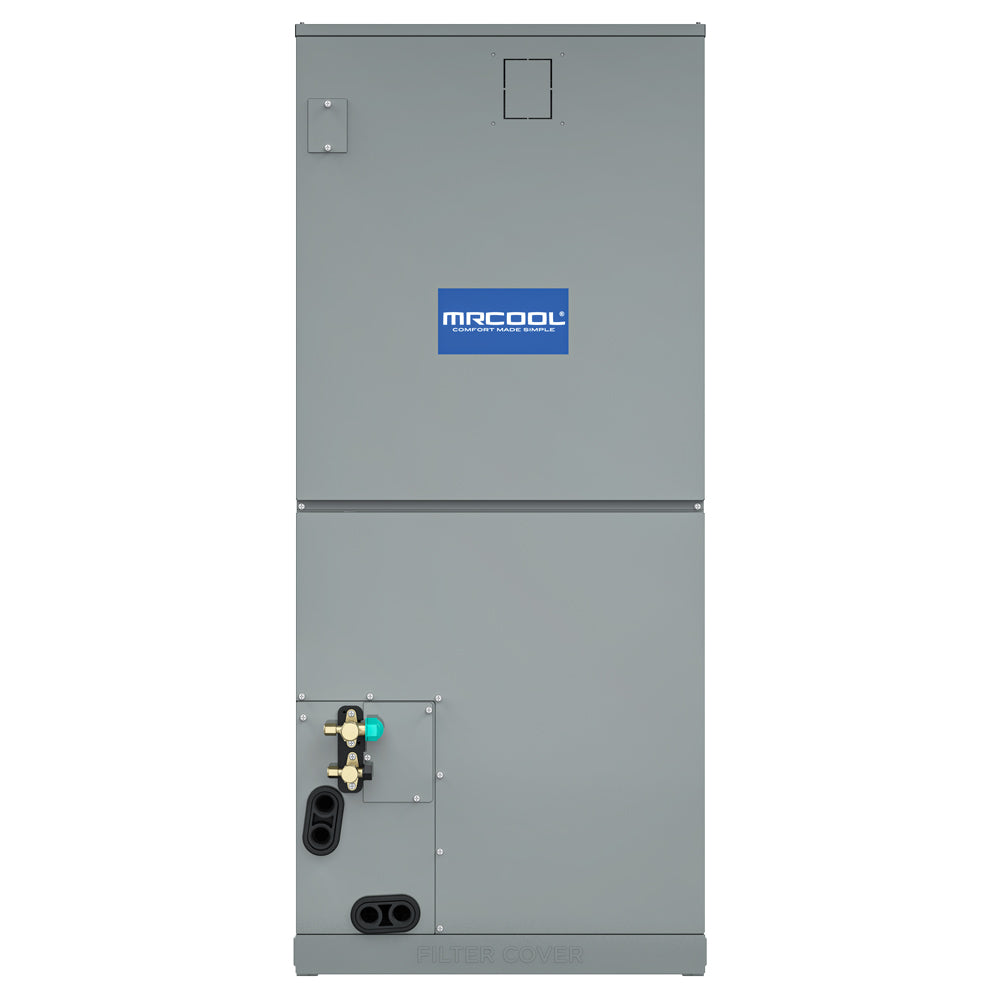

MRCOOL 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler
2 Ton | 115/208-230V
- 2 Ton capacity
- Runs on 115/208-230V power
Key Specifications
Product Overview
The 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient option for year-round heating and cooling your home. With a SEER2 rating of up to 18.3, it’s suitable for spaces up to 1,000 square feet, making it a practical choice for replacing older HVAC systems. Built with durability in mind, the air handler features a painted galvanized steel exterior, ensuring long-lasting performance. The self-diagnostics panel makes maintenance easier, helping identify error codes quickly and simplifying troubleshooting.
The unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations to fit various home layouts. It also uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining performance. Plus, this air handler works seamlessly with our Central Ducted Hyper Heat system for reliable whole-home comfort. If you need additional heating, an optional heat kit can be added.
Combined with the MRCOOL® Smart thermostat, which ensures reliable and easy temperature control, maintaining your home’s ideal comfort level has never been simpler.
With a 10-year warranty, the 2 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers dependable performance, energy efficiency, and flexibility, making it an innovative and cost-effective upgrade for your home’s HVAC system.
Additional specifications
| UPC | 840255586450 |
|---|---|
| Series | VersaPro® Central Ducted Air Handler |
| Airflow (CFM) | 824.04/759.29/694.55/629.80 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5.5/4.0 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 164 ft |
| Filter type | Replaceable |
| Filter size | 16x20x1 |
| Sound level low (dBA) | 28 |
| Sound level high (dBA) | 44 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW/8kW/10kW/15kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 20.87 x 48.62 x 26.57 |
| Shipping weight (lbs) | 127.43 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 28-44 dBA |
Electrical & Fuel
| Voltage | 115/208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 45 x 21.02 |
|---|---|
| Weight | 105.6 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
