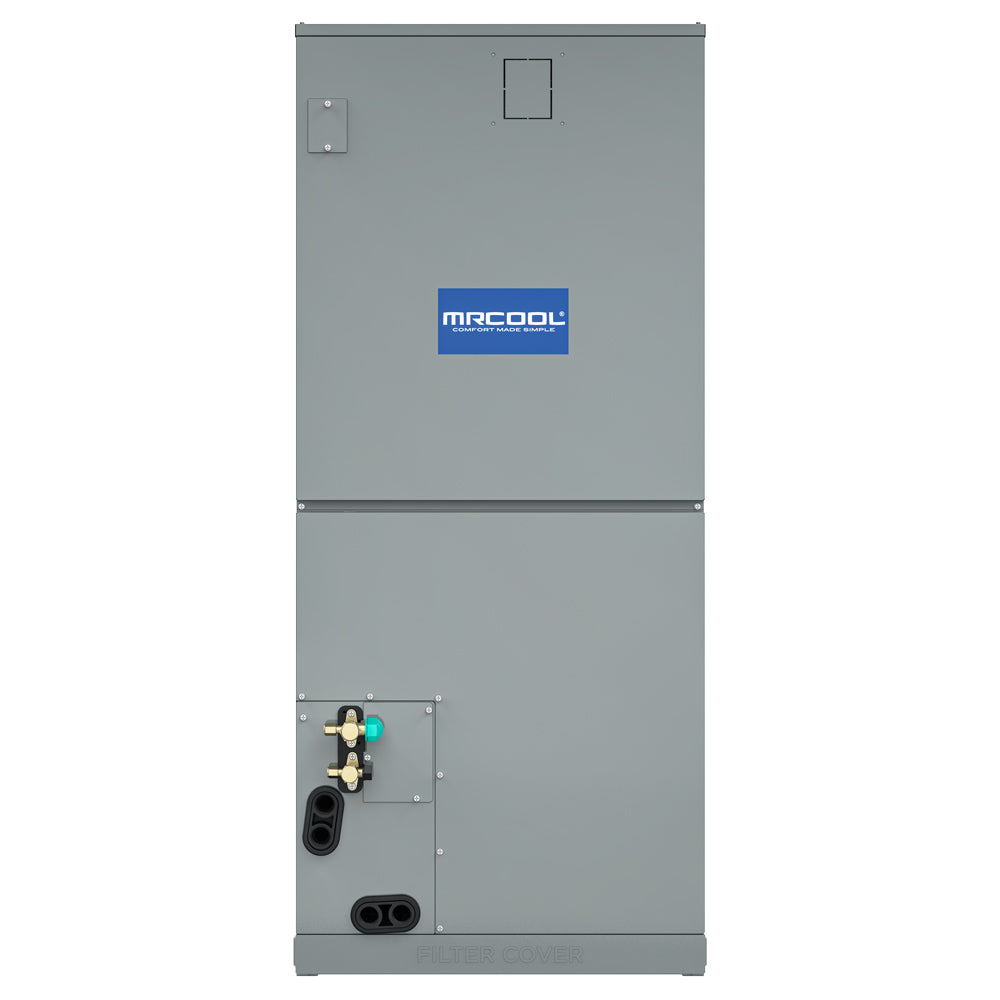

MRCOOL 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler
4 Ton | 115/208-230V
- 4 Ton capacity
- Runs on 115/208-230V power
Key Specifications
Product Overview
Experience year-round comfort with the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler, engineered for efficient and reliable heating and cooling. With an impressive SEER2 rating of up to 16.5, this unit is ideal for spaces up to 2,000 square feet, making it the perfect solution to modernize your older HVAC system. Crafted from durable painted galvanized steel, this air handler is built to last. Its self-diagnostics panel helps quickly identify issues, making maintenance easier and reducing troubleshooting time.
Versatility is key with this model, offering flexible installation options, including upflow, downflow, and horizontal configurations left or right configurations, so it can adapt to different layouts. This air handler utilizes R-454B refrigerant, and an optional heat kit is readily available for those seeking additional warmth, enhancing its versatility. Compatible with our Central Ducted Hyper Heat Condenser, this air handler ensures optimal performance and comfort.
The included MRCOOL® Smart Thermostat provides easy and precise temperature control for your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing you to adjust settings remotely for added convenience.
Backed by a 10-year warranty, the 4 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for upgrading your home’s HVAC system. It’s an affordable option that enhances comfort while offering energy savings.
Additional specifications
| UPC | 840255586481 |
|---|---|
| Series | VersaPro® Central Ducted Air Handler |
| Airflow (CFM) | 1600.99/1471.50/1283.15/1094.80 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14.5/11.0 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 246 ft |
| Filter type | Replaceable |
| Filter size | 23x20x1 |
| Sound level low (dBA) | 44 |
| Sound level high (dBA) | 53 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 8kW/10kW/15kW/20kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 26.77 x 56.5 x 27.95 |
| Shipping weight (lbs) | 190.92 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 4 Ton |
| Sound Level | 44-53 dBA |
Electrical & Fuel
| Voltage | 115/208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 24.49 x 52.99 x 21.02 |
|---|---|
| Weight | 162.92 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
