MRCOOL

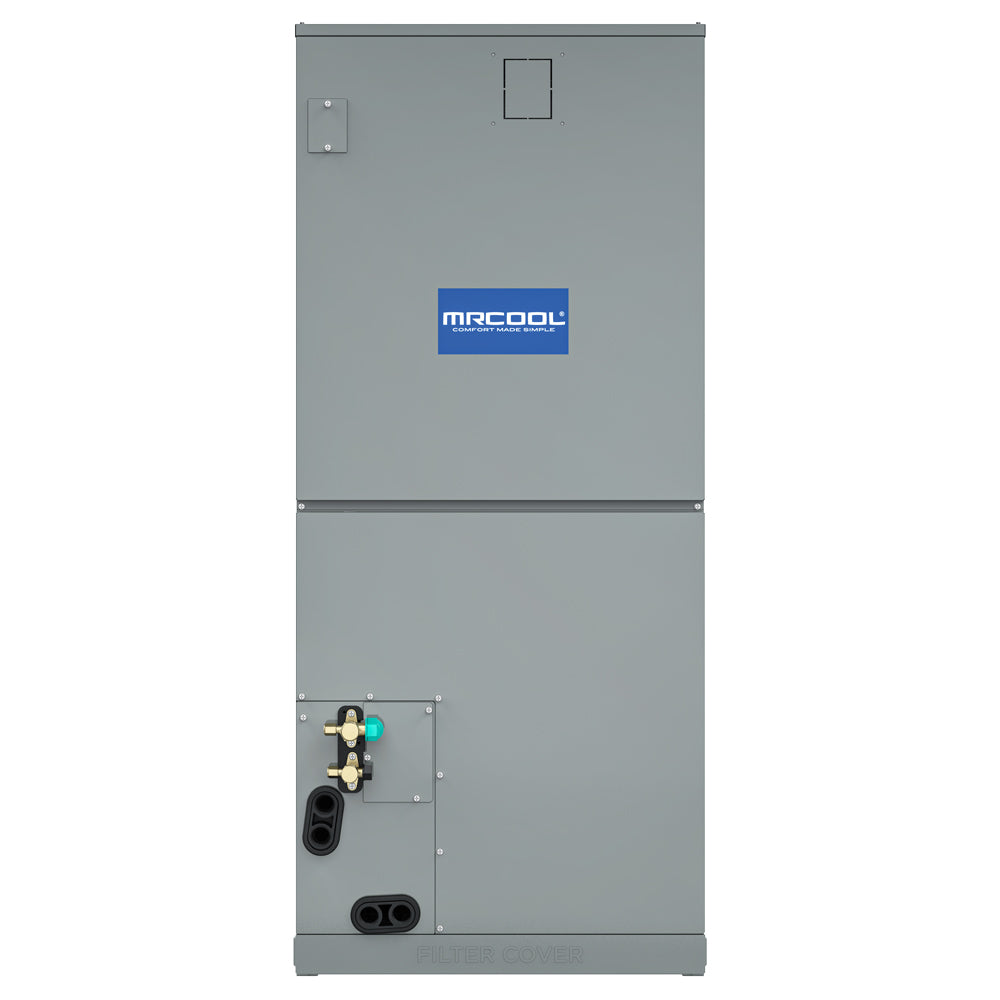

MRCOOL 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
2.5 Ton | 115/208-230V
- 2.5 Ton capacity
- Runs on 115/208-230V power
Key Specifications
Product Overview
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime.
This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available.
The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone.
Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system.
Additional specifications
| UPC | 840255586467 |
|---|---|
| Series | VersaPro® Central Ducted Air Handler |
| Airflow (CFM) | 988.85/894.67/806.38/712.21 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 8.0/6.0 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 164 ft |
| Filter type | Replaceable |
| Filter size | 19x20x1 |
| Sound level low (dBA) | 29 |
| Sound level high (dBA) | 46 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW/8kW/10kW/15kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 24.41 x 52.56 x 26.57 |
| Shipping weight (lbs) | 153.44 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 2.5 Ton |
| Sound Level | 29-46 dBA |
Electrical & Fuel
| Voltage | 115/208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 21.02 x 49.02 x 21.02 |
|---|---|
| Weight | 128.97 lb |
| Color / Finish | Gray |
