MRCOOL

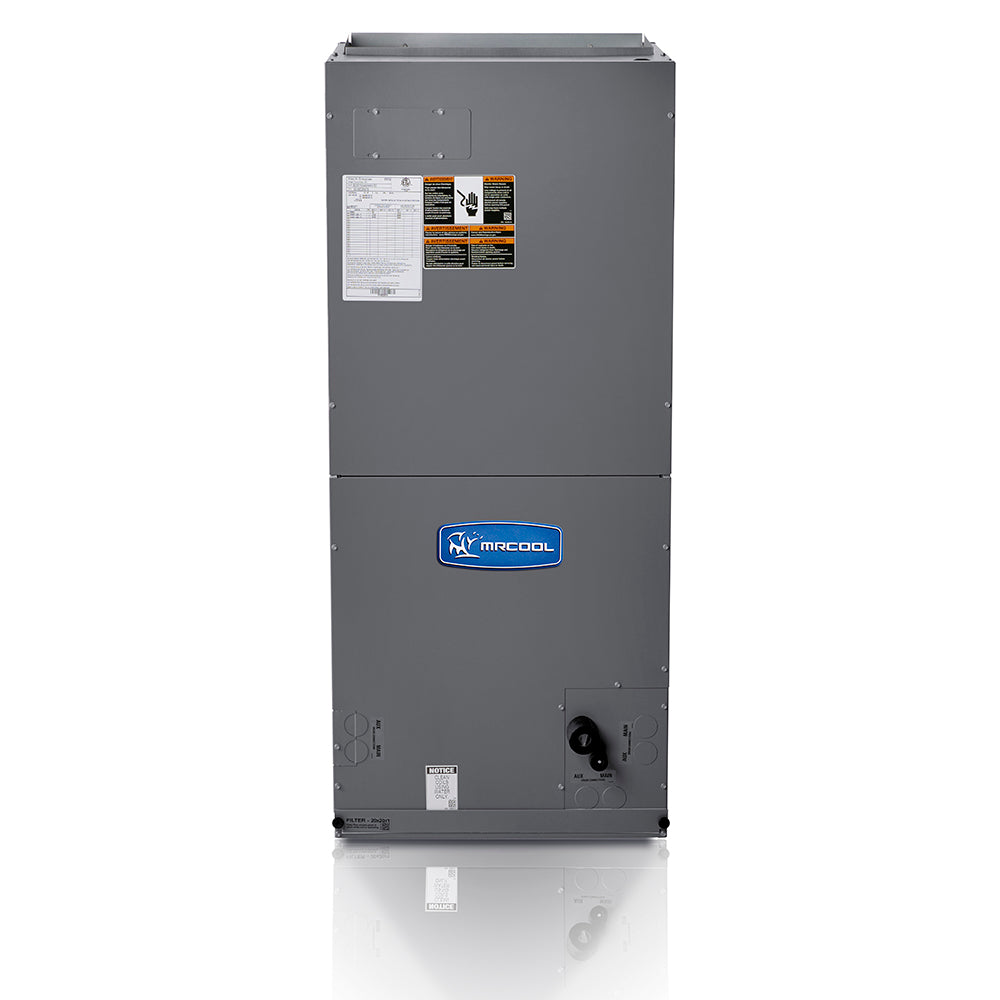

MRCOOL 2 Ton 14 SEER Split System Air Handler
2 Ton | R-410A | 208-230V
- 24000 BTU cooling capacity
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The permanent split capacitor (PSC) motor delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Features
- Smaller profile for closet applications
- Optional auxiliary heat kits available
- Baked polyester paint finished over galvanized steel for maximum duraility
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position=Upflow/Horizontal Left/Right
- AHRI certified and ETL listed
Additional specifications
| UPC | 810512031085 |
|---|---|
| Series | Signature Split Air Handler up to 14.5 SEER |
| Configuration | Multi-Position |
| SEER | Up to 14.5 |
| Airflow (CFM) | 800 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5 |
| Max fuse / breaker (A) | 15 |
| Inverter | No |
| Blower motor type | PSC |
| Blower motor HP | 1/3 |
| Blower speeds | 3 |
| Line set included (ft) | 15, 25, 35, 50 |
| Max line set length (ft) | 50 |
| Line set fitting | Sweat |
| Filter type | replacement |
| Filter size | 15x20 |
| Max coverage area | 1000 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 7.5kw, 10kw |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | No |
| ETL listed | Yes |
| Parts warranty (years) | 5 Year Parts Warranty |
| Shipping W x H x D (in) | 22.80 x 49.00 x 27.00 |
| Country of origin | Mexico |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Owner's manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Capacity | 24000 BTU |
| Tonnage | 2 Ton |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 18.50 x 45.50 x 16.50 |
|---|---|
| Weight | 127.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
