MRCOOL

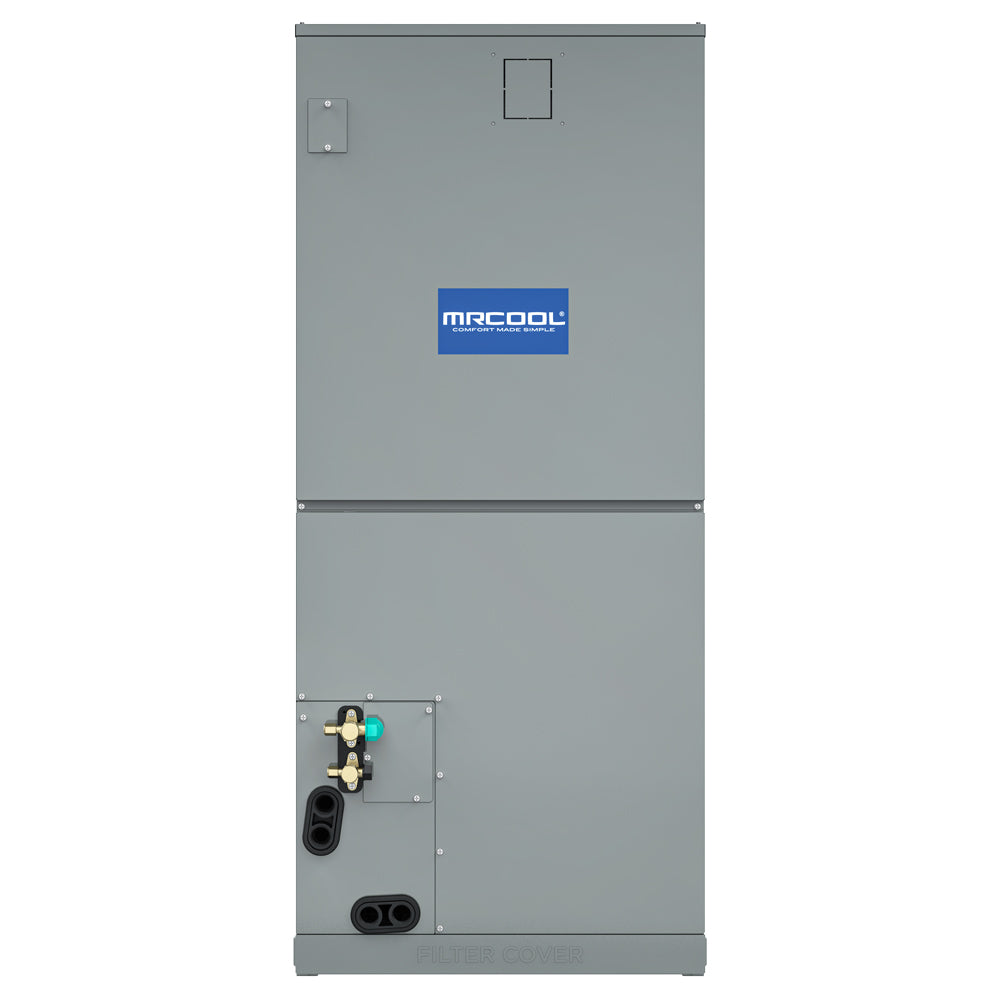

MRCOOL 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
1.5 Ton | 115/208-230V
- 1.5 Ton capacity
- Runs on 115/208-230V power
Key Specifications
Product Overview
The 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems. The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting.
This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance.
Additional specifications
| UPC | 840255586443 |
|---|---|
| Series | VersaPro® Central Ducted Air Handler |
| Airflow (CFM) | 618.03/576.83/529.74/488.54 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5.5/4.0 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 98.4 ft |
| Filter type | Replaceable |
| Filter size | 16x20x1 |
| Sound level low (dBA) | 33 |
| Sound level high (dBA) | 44 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW/8kW/10kW |
| Wi-Fi capable | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| Parts warranty (years) | 10 Years |
| Compressor warranty (yrs) | 10 Years |
| Shipping W x H x D (in) | 20.87 x 48.62 x 26.57 |
| Shipping weight (lbs) | 126.76 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 1.5 Ton |
| Sound Level | 33-44 dBA |
Electrical & Fuel
| Voltage | 115/208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 45 x 21.02 |
|---|---|
| Weight | 105.82 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
