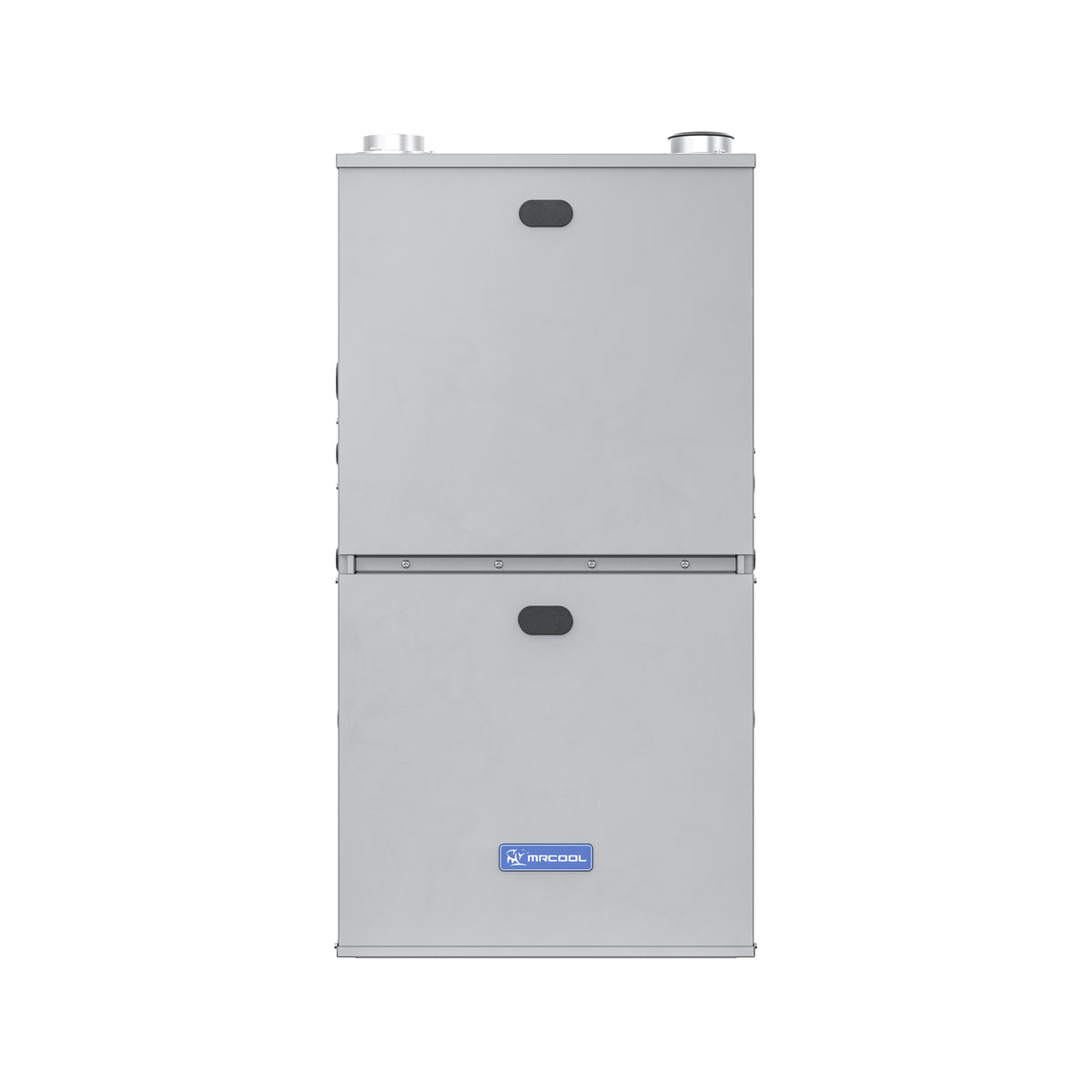

MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace
115V
- 96 AFUE heating efficiency
- Two compressor
- Runs on 115V power
Key Specifications
Product Overview
The coldest and most brutal winters are no match for the quiet-running, high-performance MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace. Rest easy knowing you’re saving money on your utility costs thanks to its two-stage, consistent torque DC motor and 96% AFUE which make this furnace energy efficient. With its aluminized steel tubular heat exchanger and stainless steel secondary heat exchanger, this unit is both durable and reliable. Installation is simple as well since it easily fits even where space is limited. The furnace is designed for multi-position installation in upflow or horizontal configurations, offers convenient left or right connections for gas or electric service, and features a removable bottom panel for side or bottom return applications, making both maintenance and installation simple. In addition, the furnace can be easily converted to propane with an optional LP kit. Since this furnace is both AHRI certified and ETL listed, you can count on it to provide dependable and high quality comfort in your home as it has undergone intensive testing to meet the highest standards in HVAC. For further peace of mind, the furnace is backed by a 10-year parts warranty in addition to a lifetime warranty on the heat exchanger.
Features
- Intertek Cert: 3124627
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 96% AFUE
- Two Stage
- Energy Efficient
- Compact Design
Additional specifications
| UPC | 840255582636 |
|---|---|
| Series | VersaPro 96% Gas Furnace |
| Configuration | Upflow or Horizontal |
| Input (BTU/h) | 60000 |
| Output (BTU/h) | 57000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 8 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 3/4 |
| Filter type | replaceable |
| AHRI certified | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 20.00 x 40.35 x 31.02 |
| Shipping weight (lbs) | 147.5 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Two |
| AFUE | 96 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 33.74 x 28.74 |
|---|---|
| Weight | 130 lb |
| Color / Finish | Gray |
