MRCOOL

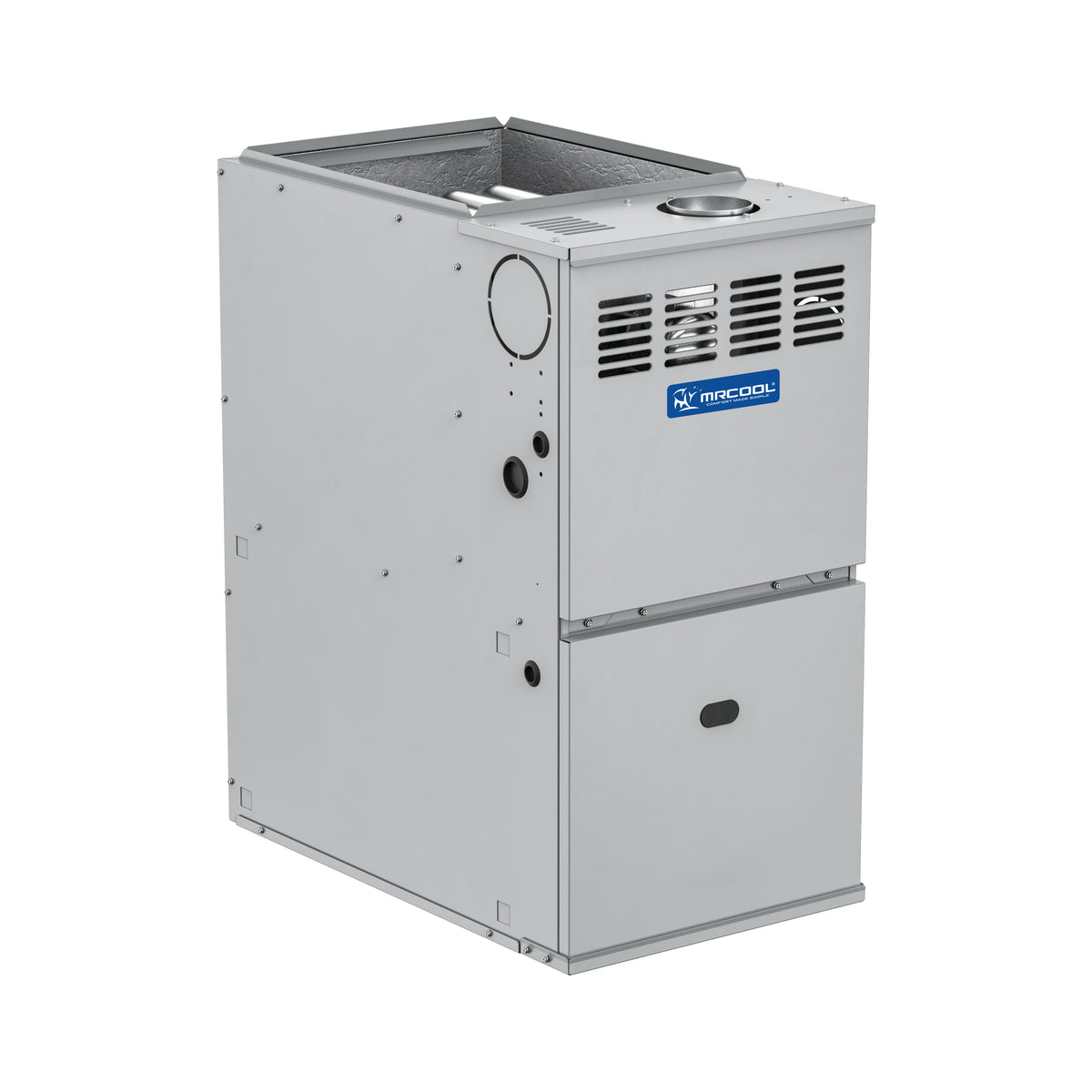

MRCOOL 80% AFUE 120K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with D Cabinet
115V
- 80 AFUE heating efficiency
- Single compressor
- Runs on 115V power
Key Specifications
Product Overview
For reliable heating all winter long, the MRCOOL® VersaPro® 120K BTU 80% AFUE Gas Furnace is designed to provide dependable warmth and comfort for your home throughout the colder months. With an 80% AFUE rating, this energy-efficient furnace ensures that most of the fuel is converted into usable heat, delivering reliable warmth while helping to lower your energy bills.
Crafted for durability and top-notch performance, the VersaPro® features a high-performance ECM blower motor that maximizes airflow efficiency, allows for easy speed adjustments, and reduces overall utility costs. Its compact design allows for versatile installation, making it an excellent choice for homes with limited space. Offering multi-position installation options for upflow, downflow, or horizontal applications, this furnace adapts to a wide variety of layouts. It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, you can easily switch from natural gas to propane when necessary.
Compatible with most 24V thermostats, this furnace ensures precise temperature control for your home. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty to ensure long-term performance and comfort in your home.
Features
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Energy Efficient
- Compatible with R454b Refrigerant
Additional specifications
| UPC | 840255588638 |
|---|---|
| Series | Versapro R-454B 80% AFUE Gas Furnace |
| Configuration | Multi-Position |
| Input (BTU/h) | 120000 |
| Output (BTU/h) | 96000 |
| Airflow (CFM) | 1950 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1 |
| Blower speeds | 5 |
| Gas connection (in) | 3/4in |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 26.77 x 41 x 31.02 |
| Shipping weight (lbs) | 190 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Single |
| AFUE | 80 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 24.5 x 33.75 x 28.5 |
|---|---|
| Weight | 152 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
