MRCOOL

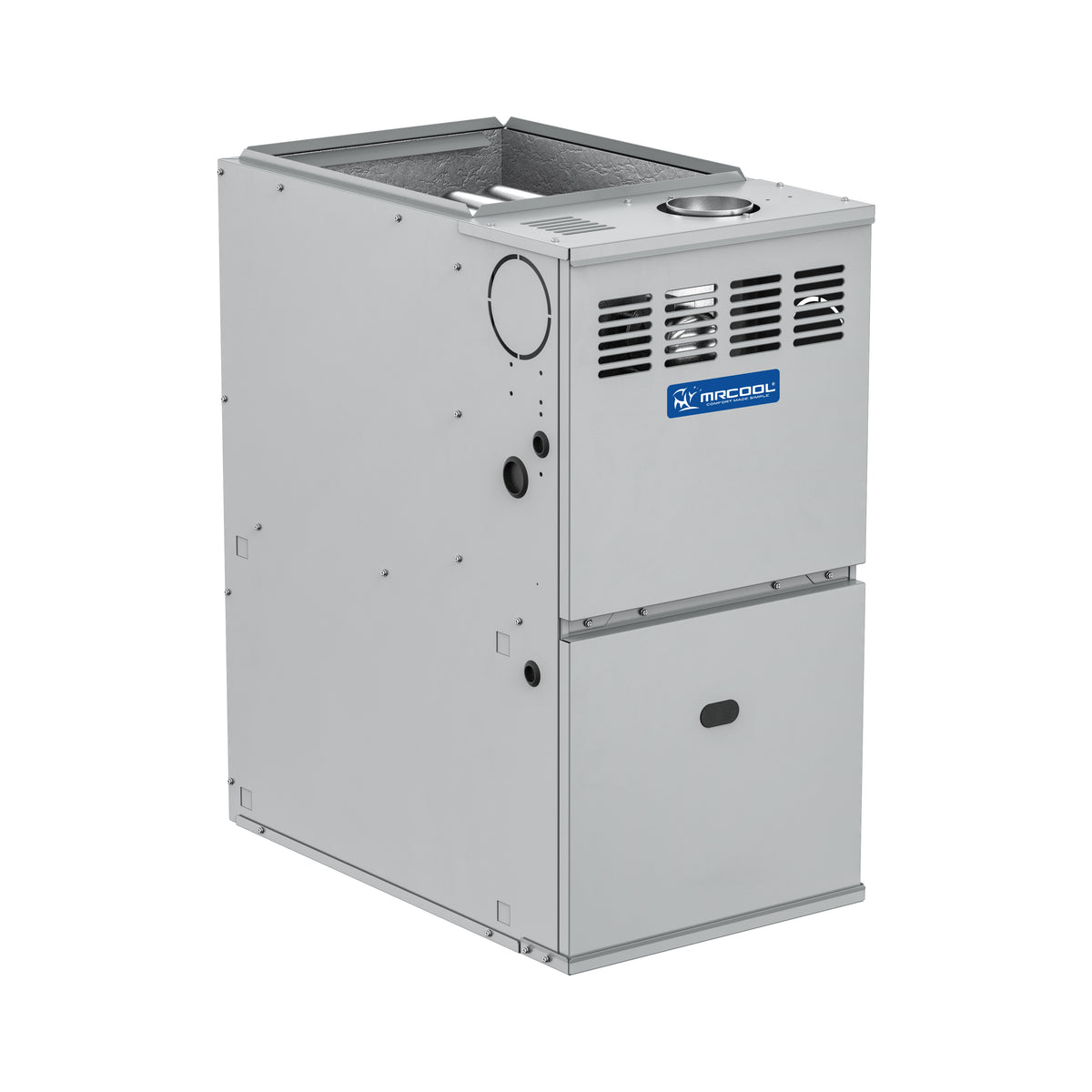

MRCOOL 80% AFUE 100K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with C Cabinet
115V
- 80 AFUE heating efficiency
- Single compressor
- Runs on 115V power
Key Specifications
Product Overview
The MRCOOL® VersaPro® 100K BTU 80% AFUE Gas Furnace is here to provide your home with consistent warmth and comfort throughout the winter season. With an 80% AFUE rating, this highly efficient furnace ensures that most of the fuel is turned into usable heat, delivering dependable warmth while helping to reduce your energy costs.
Built to last and perform, the VersaPro® is equipped with a robust ECM blower motor that optimizes airflow, allows for adjustable speed settings, and reduces utility bills. Its compact design makes it easy to install, even in homes with limited space. Whether you need upflow, downflow, or horizontal configurations, this furnace offers flexible installation options to suit various layouts. Additionally, it includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, you can easily switch from natural gas to propane.
This furnace is compatible with most 24V thermostats, ensuring easy and efficient temperature control. For added peace of mind, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty, offering long-term reliability and comfort for your home.
Features
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Energy Efficient
- Compatible with R454b Refrigerant
Additional specifications
| UPC | 840255588621 |
|---|---|
| Series | Versapro R-454B 80% AFUE Gas Furnace |
| Configuration | Multi-Position |
| Input (BTU/h) | 100000 |
| Output (BTU/h) | 80000 |
| Airflow (CFM) | 1750 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 14 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1 |
| Blower speeds | 5 |
| Gas connection (in) | 3/4in |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 23.5 x 41 x 31.02 |
| Shipping weight (lbs) | 177 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Single |
| AFUE | 80 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 21 x 33.75 x 28.5 |
|---|---|
| Weight | 146 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
