MRCOOL

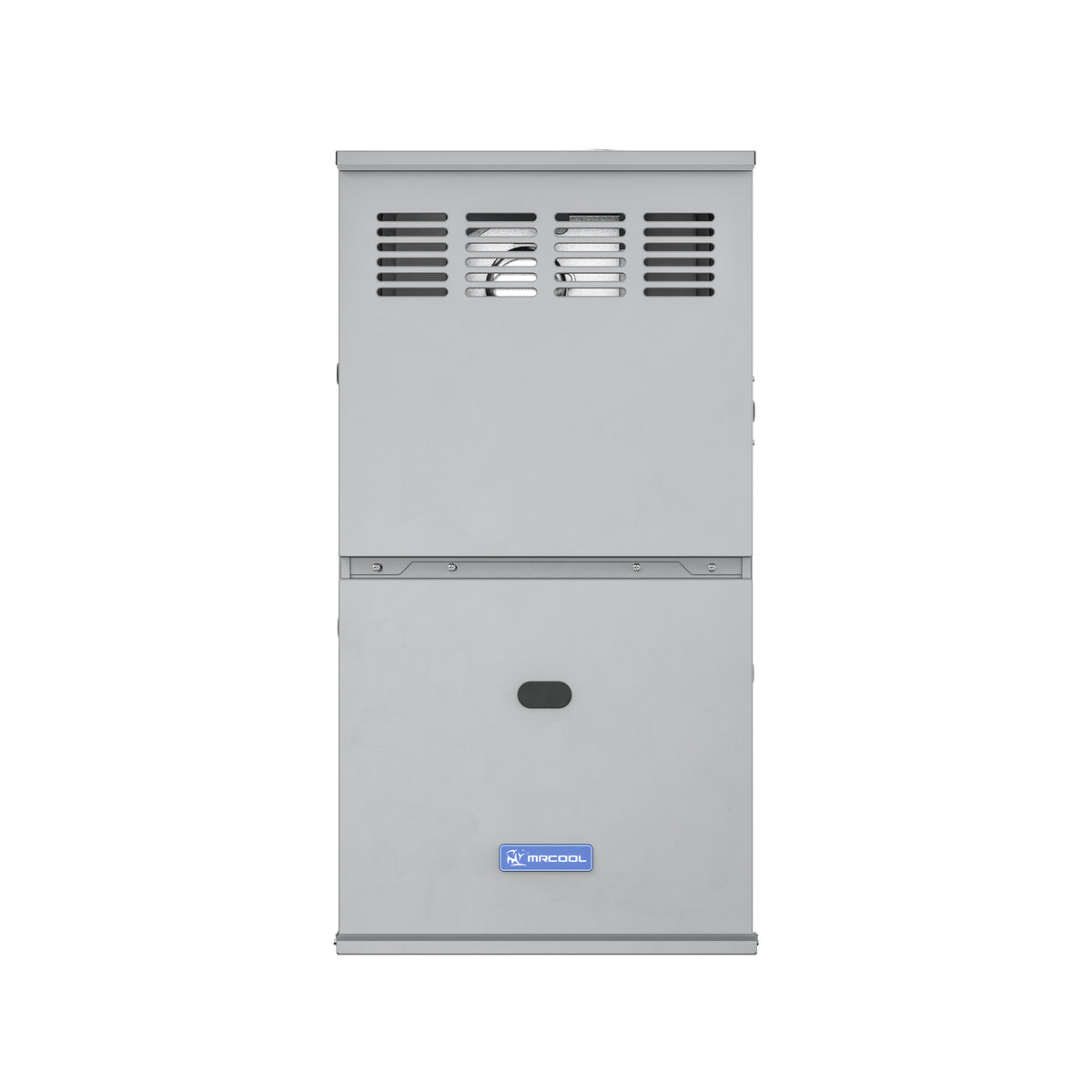

MRCOOL® VersaPro® 60k BTU 80% AFUE Gas Furnace
115V
- 80 AFUE heating efficiency
- Two compressor
- Runs on 115V power
Key Specifications
Product Overview
In the face of severe winter conditions, the MRCOOL® VersaPro® 60k BTU 80% AFUE Gas Furnace ensures unwavering warmth and comfort within your home. Crafted with a strong build and compact design, this furnace effortlessly accommodates most cabinet sizes, even in spatially restricted areas, simplifying installation, replacement, add-on cooling, and maintenance. Its adaptable multi-position installation caters to upflow, downflow, and horizontal applications, featuring convenient left or right connections for gas and electric service. Additionally, transitioning from natural gas to propane is simple with an optional LP kit. The uniquely engineered two-stage consistent flow DC motor promises substantial energy and utility cost savings over time. Count on reliable performance with its hot-surface ignition, guaranteeing consistent and reliable operation. Meanwhile, the multi-speed direct-drive blower operates efficiently and quietly, seamlessly blending into your daily routine without disruption. The furnace's reliability is further strengthened by its AHRI certification and ETL listing, signifying rigorous testing to meet stringent quality and operational benchmarks. Further peace of mind is offered when the unit is registered within 90 days of installation, unlocking a 10-year parts warranty and lifetime heat exchanger coverage. Even without registration, the furnace is safeguarded by a 5-year parts warranty and 20-year heat exchanger guarantee, reinforcing its durability and performance assurance.
Features
- Intertek Cert: 3124627
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Two Stage
- Energy Efficient
- Compact Design
Additional specifications
| UPC | 840255582544 |
|---|---|
| Series | VersaPro 80% Gas Furnace |
| Configuration | Multi-Position |
| Input (BTU/h) | 60000 |
| Output (BTU/h) | 48000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 6 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Filter type | replaceable |
| AHRI certified | yes |
| ETL listed | yes |
| Parts warranty (years) | 5 Years |
| Heat exchanger warranty | 20 Years |
| Shipping W x H x D (in) | 19.76 x 40.00 x 31.02 |
| Shipping weight (lbs) | 141 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Two |
| AFUE | 80 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 33.74 x 28.50 |
|---|---|
| Weight | 115 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
