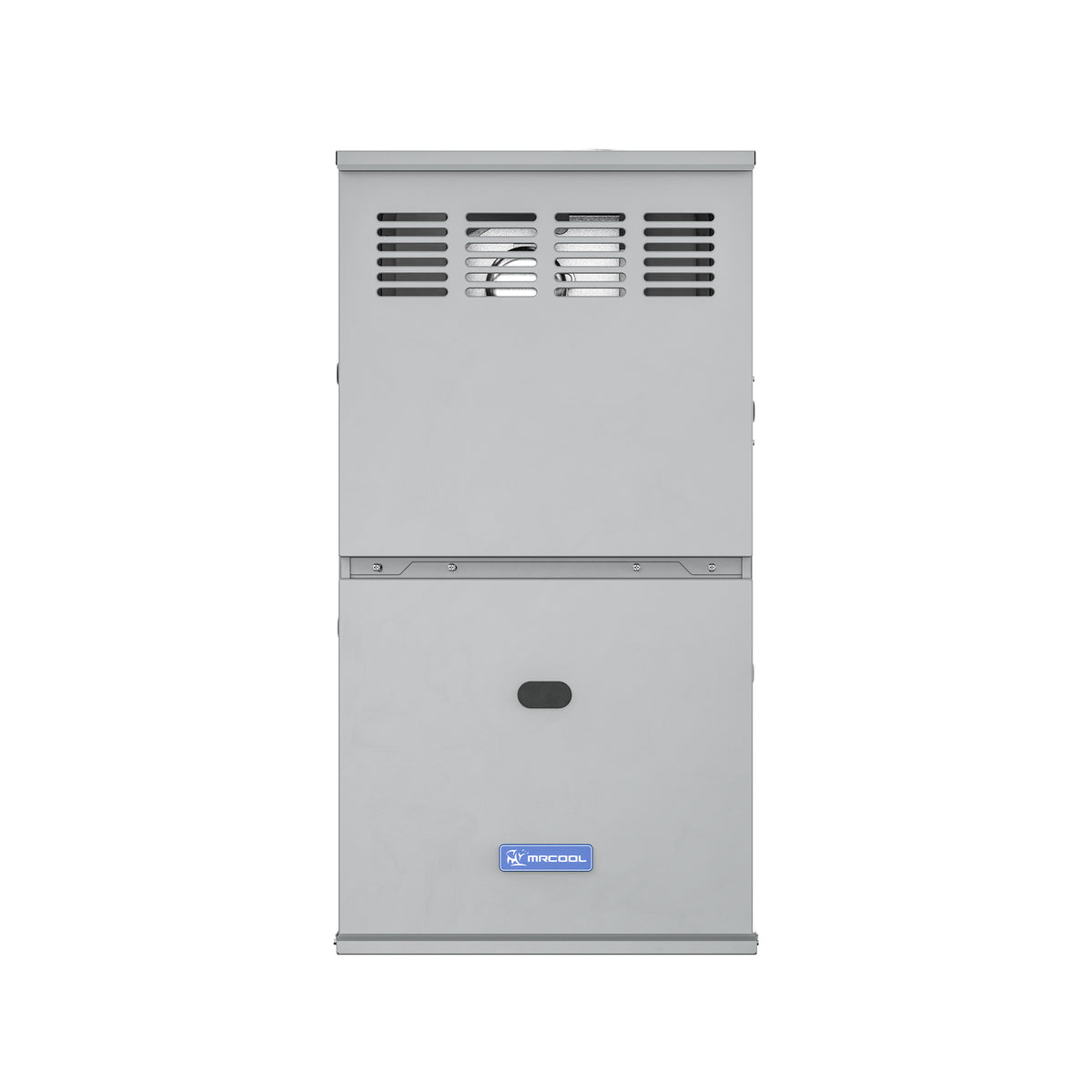

MRCOOL® VersaPro® 40k BTU 80% AFUE Gas Furnace
115V
- 80 AFUE heating efficiency
- Two compressor
- Runs on 115V power
Key Specifications
Product Overview
No matter how harsh the winter weather is outside, the MRCOOL® VersaPro® 40k BTU 80% AFUE Gas Furnace ensures you stay warm and comfortable inside your home. With a durable build and compact design, this furnace fits most cabinet sizes, even where space is limited, making installation, replacement, and maintenance easy. Its multi-position installation allows for upflow, downflow, and horizontal applications, and features convenient left or right connections for gas and electric service. It can also be easily converted from natural gas to propane with an optional LP kit. The innovative two-stage consistent flow DC motor ensures you’ll save both energy and money on utility costs. Rest assured the hot-surface ignition provides dependable operation and you can count on the multi-speed direct-drive blower to work effectively and quietly without disturbing your day-to-day activities. The furnace is also AHRI certified and ETL listed, so you can trust it has been vigorously tested to meet all quality and operation standards. Also ensuring peace of mind, when the furnace is registered within 90 days of installation, it is backed by a 10-year parts warranty and lifetime heat exchanger warranty. Even without registration, it is protected by a 5-year parts warranty and 20-year heat exchanger warranty.
Features
- Intertek Cert: 3124627
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Two Stage
- Energy Efficient
- Compact Design
Additional specifications
| UPC | 840255582537 |
|---|---|
| Series | VersaPro 80% Gas Furnace |
| Configuration | Multi-Position |
| Input (BTU/h) | 40000 |
| Output (BTU/h) | 32000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 6 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Filter type | replaceable |
| AHRI certified | yes |
| ETL listed | yes |
| Parts warranty (years) | 5 Years |
| Heat exchanger warranty | 20 Years |
| Shipping W x H x D (in) | 16.77 x 40.00 x 31.02 |
| Shipping weight (lbs) | 132 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Two |
| AFUE | 80 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 14.49 x 33.74 x 28.50 |
|---|---|
| Weight | 108 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
