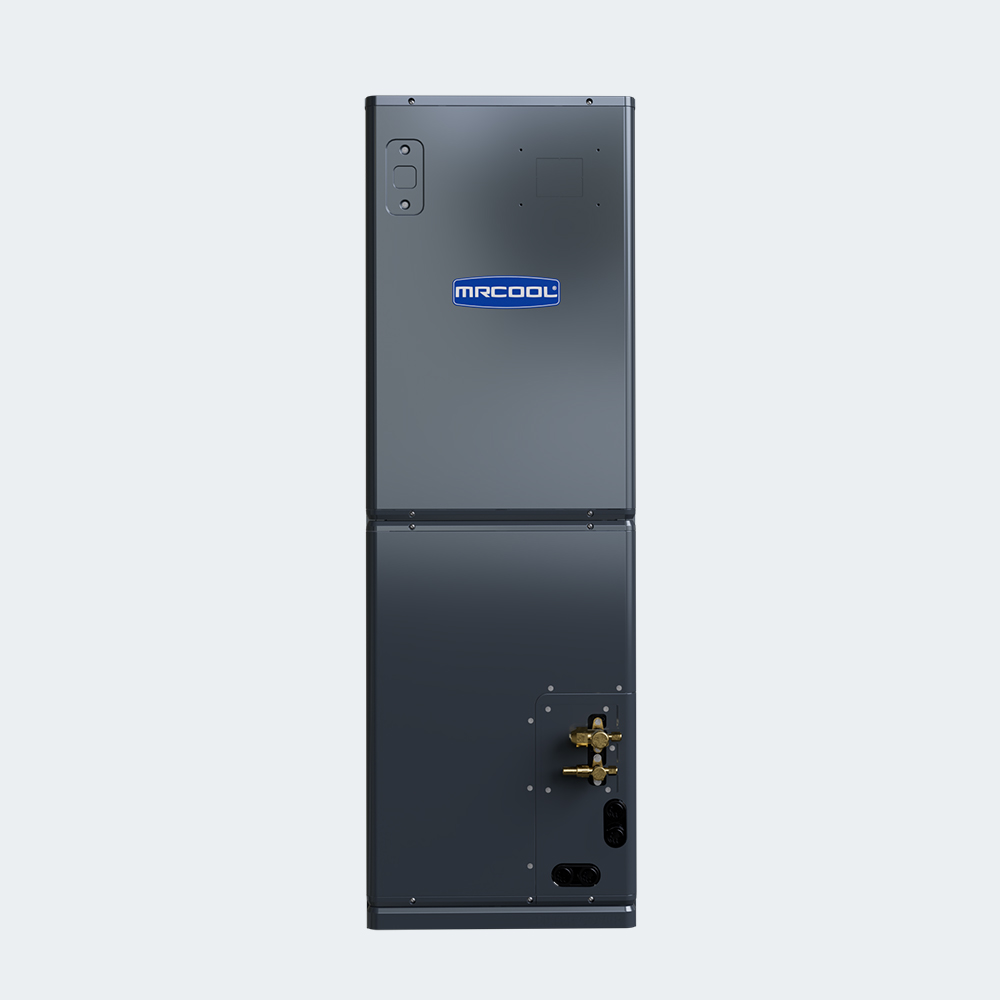

MRCOOL Universal Series 24,000 BTU Air Handler
2 Ton | R-454B | 115/208/230V
- 2 Ton capacity
- Uses R-454B refrigerant
- Runs on 115/208/230V power
Key Specifications
Product Overview
The MRCOOL® Universal® Series 24K Air Handler is built to deliver powerful, reliable, and energy-efficient comfort all year long. Whether you’re facing freezing winters or scorching summers, this compact unit works hard to maintain your ideal indoor temperature while reducing overall energy consumption—helping to lower monthly utility bills.
Designed with flexibility in mind, the 24K Air Handler supports upflow, downflow, and horizontal installations. Its slim profile makes it easy to install in a variety of spaces, including attics, closets, and crawlspaces. For added convenience, it’s compatible with the MRCOOL® NO-VAC® Quick Connect® line set (sold separately), which eliminates the need for vacuuming or flaring—streamlining installation and saving time.
To enhance performance during colder months, the unit also supports optional Universal® Series Heat Kits. These kits provide additional heating capacity and emergency backup heat when needed, boosting efficiency in extreme climates.
At the heart of the air handler is an M-shaped evaporator coil with a large surface area that improves airflow and maximizes heat exchange. Made from 100% aluminum, the coil is corrosion-resistant for long-lasting durability. Despite its powerful performance, the unit operates at whisper-quiet sound levels, ensuring comfort without disruption.
Backed by a 10-year parts warranty and a 2-year limited labor warranty, the MRCOOL® Universal® 24K Air Handler is a smart, dependable choice for homeowners looking to upgrade to efficient, long-lasting HVAC technology.
Additional specifications
| UPC | 840255587822 |
|---|---|
| Series | Universal R-454B |
| Airflow (CFM) | 824/759.3/694.5/629.8/N\A |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5.5/3.5 |
| Max fuse / breaker (A) | 15 |
| Metering device | EXV |
| Max line set length (ft) | 164 |
| Filter type | Replaceable |
| Filter size | 12 x 20 x 1 |
| Mount type | Multi-Position |
| Sound level low (dBA) | 33 |
| Sound level high (dBA) | 47.5 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5 KW / 8 KW / 10 KW / 15 KW |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Shipping W x H x D (in) | 17.52 x 52.95 x 31.1 |
| Shipping weight (lbs) | 154.76 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Universal Series Air Handler |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | N\A/47.5/44/33/N\A dBA |
Electrical & Fuel
| Voltage | 115/208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 14.49 x 49.72 x 21.5 |
|---|---|
| Weight | 123.02 lb |
| Color / Finish | Dark Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
