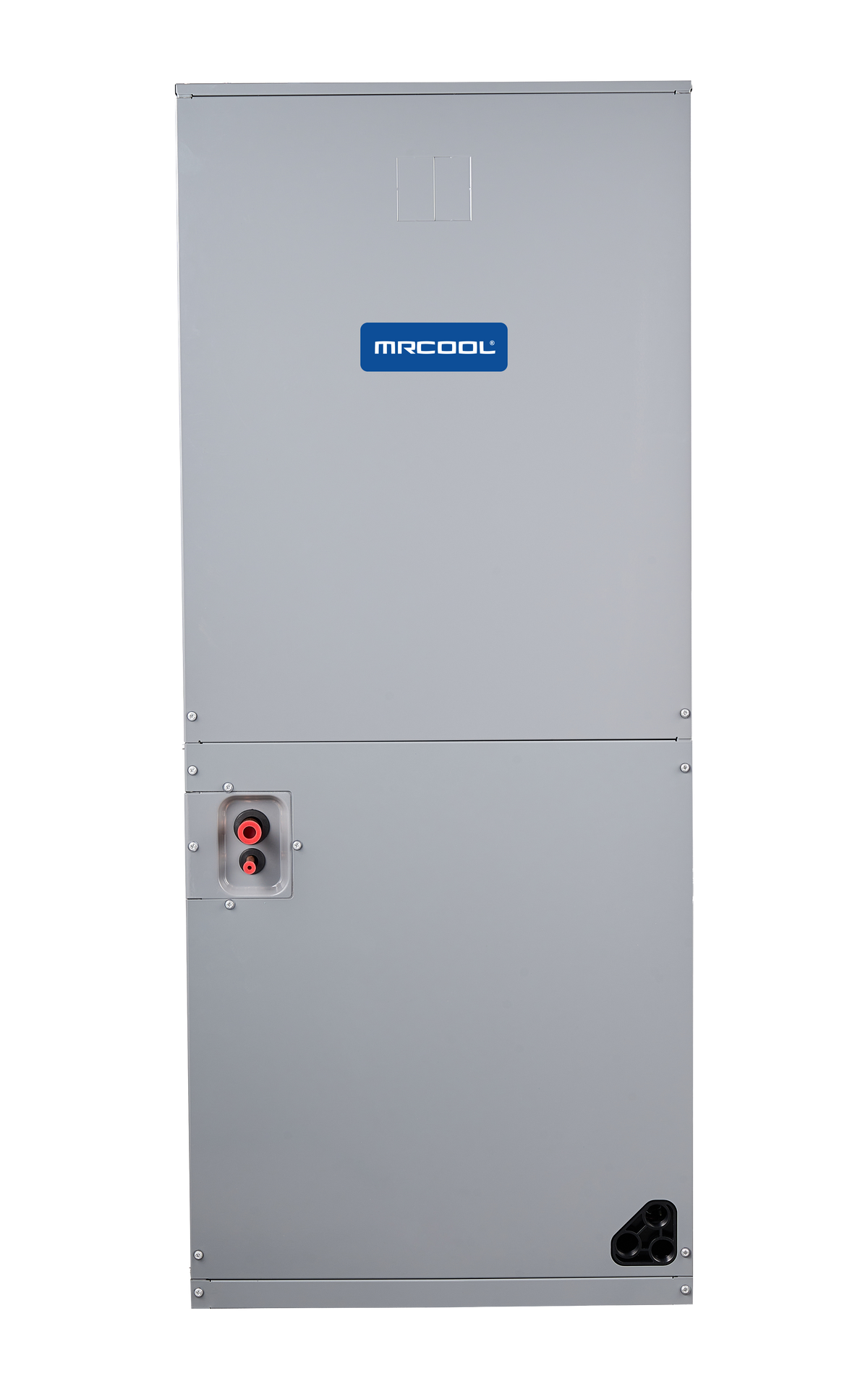

MRCOOL Signature 60,000 BTU Split System Air Handler Multi-Position
5 Ton | R-454B | 208/230V
- 5 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® Signature Series 60k Multi-Position Air Handler is designed to deliver reliable, efficient comfort all year long. Featuring advanced R-454B refrigerant, it meets modern environmental standards while helping reduce energy use and carbon emissions without sacrificing performance.
This unit’s multi-position capability allows for installation in upflow, downflow, or horizontal configurations, making it a flexible choice for any home layout. Whether it’s placed in a utility closet, attic, or crawl space, its slim, compact design ensures a seamless fit while delivering powerful heating and cooling when paired with a compatible condenser or heat pump.
Built for long-lasting performance, this unit is equipped with a galvanized steel cabinet that resists corrosion, dents, and daily wear. Its high-efficiency ECM blower motor delivers consistent, quiet airflow while helping to lower overall energy use. Inside, copper “A” coils and aluminum fins provide excellent heat exchange and effective humidity control. Meanwhile, internal thermal insulation helps minimize condensation and thermal loss, resulting in better comfort, quieter operation, and increased energy savings.
Installation is fast and simple, saving time and reducing labor costs. An air filter rack makes routine maintenance easy, and an optional electric heat kit is available to boost cold-weather performance.
This system is also compatible with most third-party smart thermostats, giving you the freedom to choose the control platform that works best for your home without proprietary limitations.
Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 60k Multi-Position Air Handler offers dependable performance, energy efficiency, and the flexibility to fit your space and lifestyle with ease.
Additional specifications
| UPC | 840255595902 |
|---|---|
| Series | Signature Series Multi-Position Air Handler |
| Configuration | Multi-Position |
| Airflow (CFM) | 1549 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 7.2 |
| Max fuse / breaker (A) | 10 |
| Blower motor type | ECM |
| Blower motor HP | 3/4 |
| Blower speeds | 5 |
| Metering device | Orifice |
| Drain connection (in) | 3/4 |
| Filter type | Replaceable |
| Filter size | 20 * 24 * 1 |
| Mount type | Multi-Position |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW, 10kW |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 27.75 x 54.89 x 25.2 |
| Shipping weight (lbs) | 190 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Tonnage | 5 Ton |
| Sound Level | 57 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 22 x 53.125 x 24.5 |
|---|---|
| Weight | 170 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
