MRCOOL

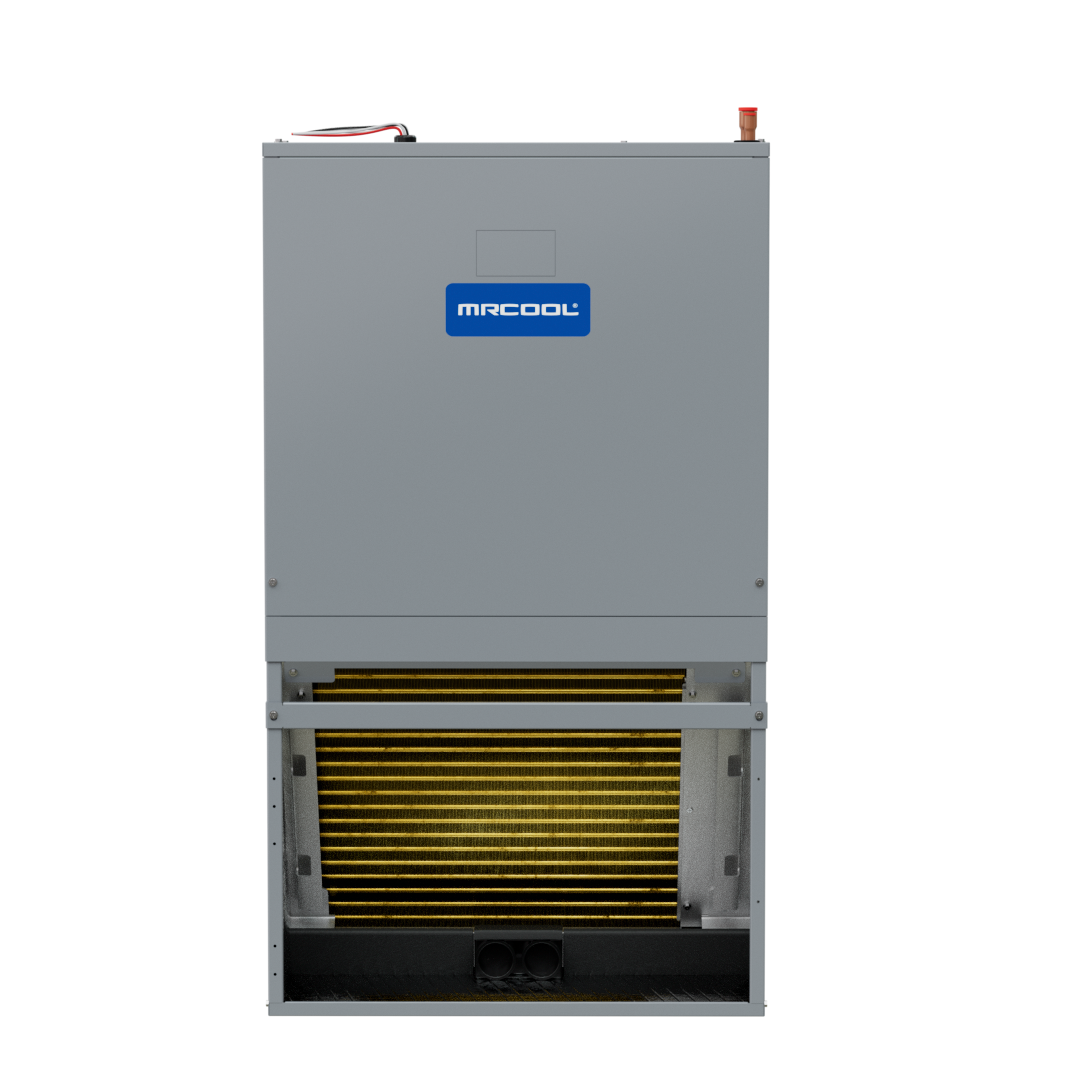

MRCOOL Signature 36,000 BTU Split System Air Handler Stud Mount
3 Ton | R-454B | 208/230V
- 3 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
Elevate your home comfort with the MRCOOL® Signature Series 36K Stud Mount Air Handler—designed for exceptional flexibility, energy efficiency, and easy installation. Built to fit cleanly between standard wall studs, this slim, space-saving unit is perfect for areas where conventional air handlers aren’t practical, offering a smart solution for a variety of installation scenarios.
Despite its compact size, the unit delivers strong and reliable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options available, it offers adaptable airflow configurations to suit your layout.
Built to last, the MRCOOL® Signature Series 36k Stud Mount Air Handler features a rugged galvanized steel cabinet and advanced blower technology for quiet, consistent operation. Full cabinet insulation helps prevent condensation and energy loss, while the high-efficiency ECM motor ensures balanced airflow and energy savings throughout your space.
Maintenance is quick and easy with the integrated filter rack, and optional electric heat kits are available to provide additional comfort during colder months.
Backed by a 10-year limited parts warranty, this unit delivers dependable performance and long-term peace of mind. Whether you're upgrading an existing system, starting a renovation, or building from the ground up, the MRCOOL® Signature Series 36K Stud Mount Air Handler is a smart, compact solution that never compromises on comfort.
Additional specifications
| UPC | 840255595940 |
|---|---|
| Series | Signature Series Stud Mount Air Handler |
| Configuration | Stud Mount |
| Airflow (CFM) | 1095 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 4.5 |
| Max fuse / breaker (A) | 6 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 5 |
| Metering device | Orifice |
| Drain connection (in) | 3/4 |
| Filter type | Replaceable |
| Filter size | 20 * 20 * 1 |
| Mount type | Stud Mount |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW, 10kW |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 24.6 x 42.89 x 22.25 |
| Shipping weight (lbs) | 120 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Tonnage | 3 Ton |
| Sound Level | 57 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 22.125 x 39.5 x 19 |
|---|---|
| Weight | 110 lb |
| Color / Finish | Grey |
