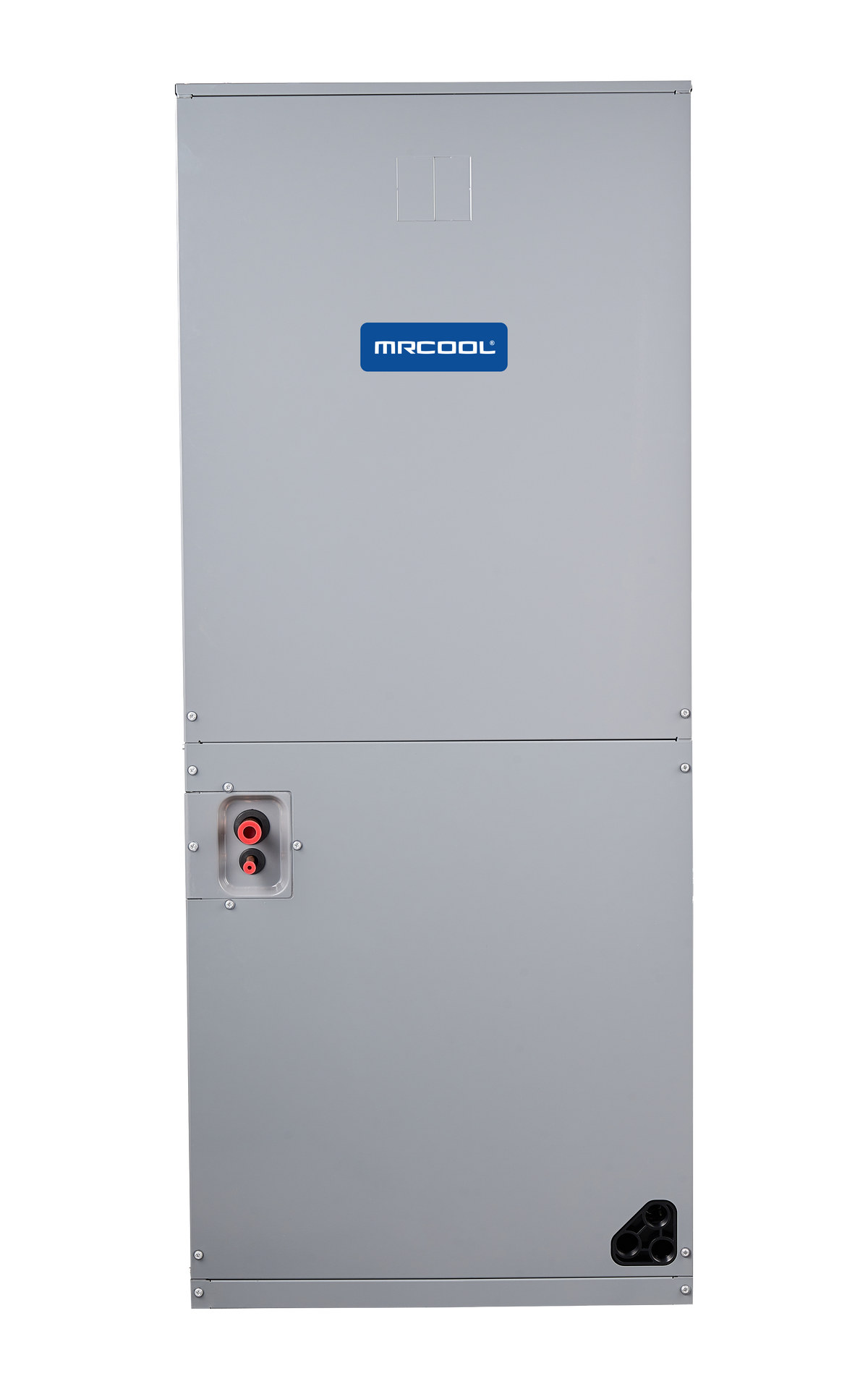

MRCOOL Signature 30,000 BTU Split System Air Handler Multi-Position
2.5 Ton | R-454B | 208/230V
- 2.5 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® Signature Series 30k Multi-Position Air Handler is engineered to provide powerful, efficient comfort in any season. Featuring advanced R-454B refrigerant, this system meets modern environmental standards while helping reduce your energy use and carbon footprint without compromising performance.
Its multipositional capability allows for flexible installation in upflow, downflow, or horizontal configurations, making it a smart fit for new builds, remodels, or system upgrades. The slim, compact design makes it ideal for tight spaces such as closets, attics, or crawlspaces, while still delivering full heating and cooling power when paired with a compatible MRCOOL® condenser or heat pump.
Built for long-term performance, the air handler includes a durable galvanized steel cabinet, a high-efficiency ECM blower motor, and copper “A” coils with enhanced aluminum fins for excellent heat transfer and humidity control. Internal thermal insulation helps reduce condensation and energy loss, supporting quieter operation and greater efficiency.
Installation is simple and cost-effective, with a design that minimizes labor time. A built in air filter rack makes regular maintenance fast and easy, and an optional electric heat kit adds extra comfort for colder climates.
The unit is fully compatible with most third-party smart thermostats, giving homeowners the freedom to control comfort with the platform of their choice.
Protected by a 10-year limited parts warranty, the MRCOOL® Signature Series 30k Multi-Position Air Handler is a reliable, space-saving, energy-efficient solution for total home comfort.
Additional specifications
| UPC | 840255595865 |
|---|---|
| Series | Signature Series Multi-Position Air Handler |
| Configuration | Multi-Position |
| Airflow (CFM) | 983 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 4.5 |
| Max fuse / breaker (A) | 6 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 5 |
| Metering device | Orifice |
| Drain connection (in) | 3/4 |
| Filter type | Replaceable |
| Filter size | 18 * 21 * 1 |
| Mount type | Multi-Position |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW, 10kW |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 22.83 x 47.625 x 25.6 |
| Shipping weight (lbs) | 142 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Tonnage | 2.5 Ton |
| Sound Level | 53 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 19.625 x 45.75 x 22 |
|---|---|
| Weight | 129 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
