MRCOOL

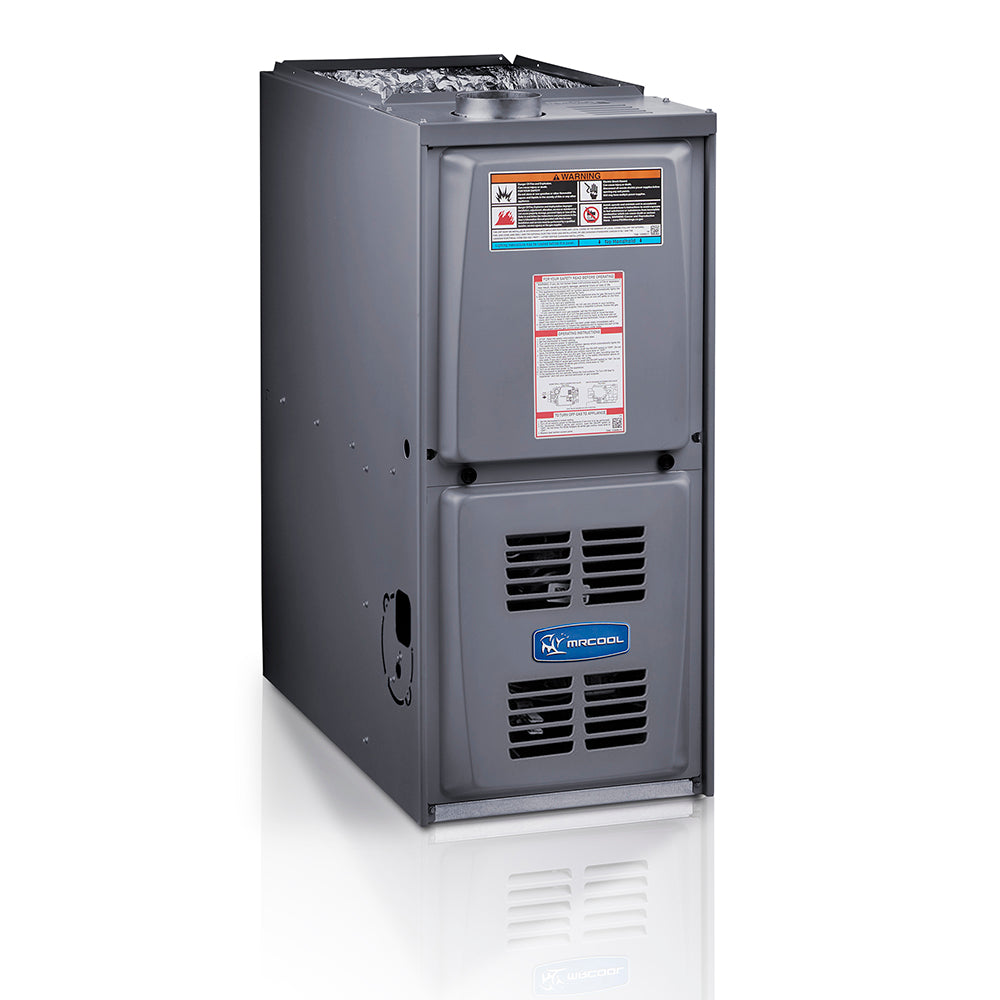

MRCOOL 80% AFUE 3 Ton 45,000 BTU Downflow Multi-Speed Gas Furnace
3 Ton | 120V
- 3 Ton capacity
- 80% AFUE heating efficiency
- Single compressor
- Runs on 120V power
Key Specifications
Product Overview
When harsh winter weather strikes, nothing compares to the warmth and safety a powerful reliable gas furnace can provide. While furnace heating technology has been around for decades, not all systems are created equally. Some are definitely better than others. One of the best on the market is the MRCOOL single stage, 80% AFUE gas furnace. This system can be installed down flow, and is designed to operate for decades, provide powerful heating capability, and, best of all, keep your heating bill affordable at the same time. It does the latter via its 80% AFUE energy efficiency rating. That mark of quality ensures 80% of every dollar you spend on heating fuel gets turned into real, effective heat for your home.
Features
- Easily removable slide out blower design
- Registered 10-year parts warranty
- Rotatable draft inducer for venting flexibility
- Downflow furnace
- Heating efficiency of 80% AFUE
- AHRI Certified
- LP kit not included
- Aluminized steel tapered crimped non-welded clam shell heat exchanger design
- Compact 33" height
- Left or right utility connections
- Multi-speed high efficiency (constant torque) blower motor
- Zero step horizontal conversion
Additional specifications
| UPC | 810512033676 |
|---|---|
| Series | Signature Downflow 80% AFUE Furnace |
| Configuration | Downflow |
| Heating capacity (BTU/h) | 44,000 |
| Input (BTU/h) | 44000 |
| Output (BTU/h) | 35200 |
| Airflow (CFM) | 1275 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 6.8 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 5 |
| Gas connection (in) | 1/2 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| Heat exchanger warranty | 20 year Heat Exchanger Warranty |
| Shipping weight (lbs) | 113 |
| Country of origin | Mexico |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Owner's manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Tonnage | 3 Ton |
| Compressor / Stages | Single |
| AFUE | 80% |
Electrical & Fuel
| Voltage | 120V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural Gas |
Physical & Certifications
| Dimensions (W x H x D) | 14.50 x 33.00 x 28.38 |
|---|---|
| Weight | 113.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
