MRCOOL 80% AFUE 80K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with C Cabinet
115V
- 80 AFUE heating efficiency
- Single compressor
- Runs on 115V power
Key Specifications
Product Overview

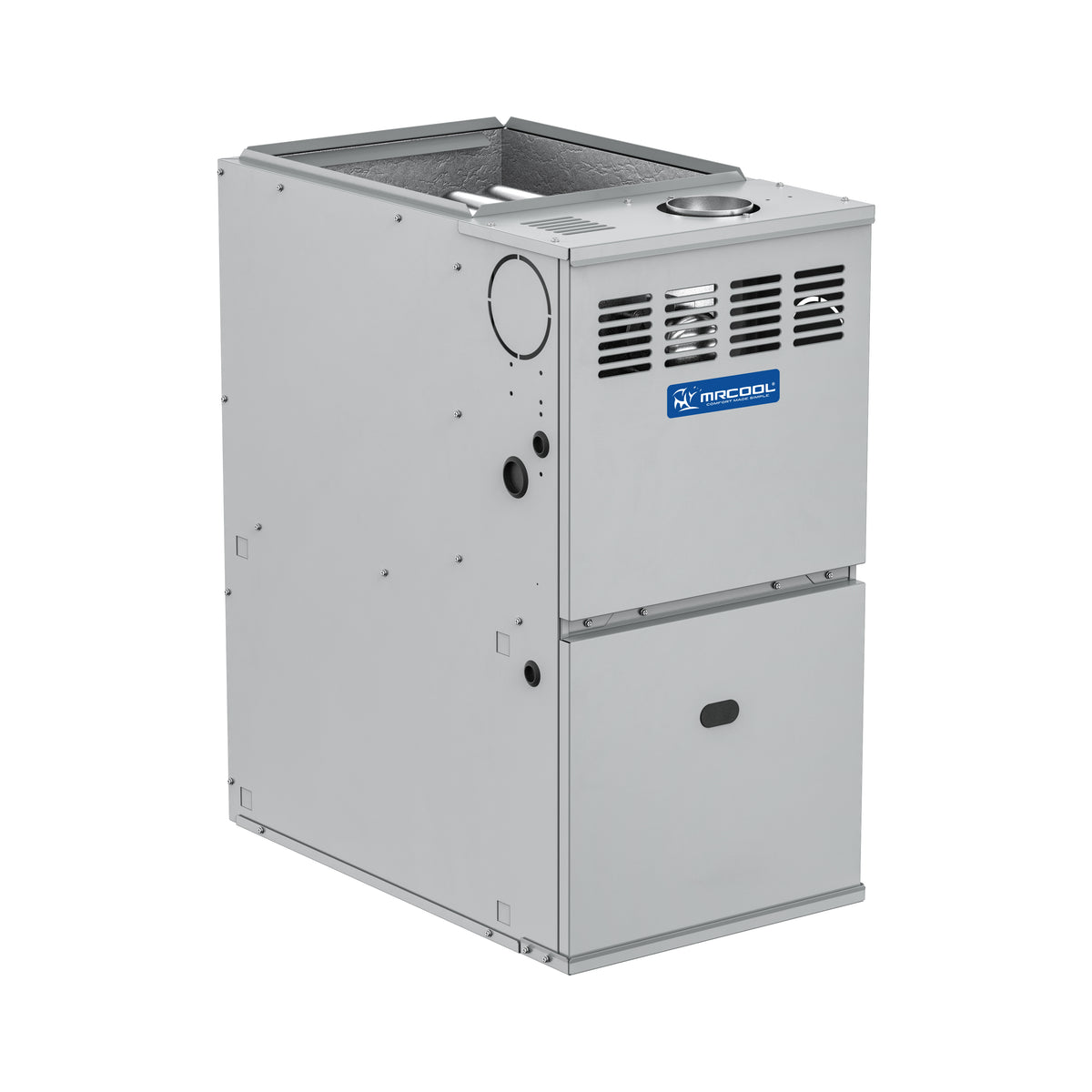

Presenting the MRCOOL® VersaPro® 80K BTU 80% AFUE Gas Furnace, engineered to provide consistent warmth and comfort throughout the winter months. With an 80% AFUE rating, this high-efficiency furnace transforms the majority of the fuel it uses into heat, offering an affordable and dependable heating solution while helping to lower energy bills.
Designed for both performance and longevity, the VersaPro® features a robust ECM blower motor that boosts airflow efficiency, enables smooth speed adjustments, and aids in reducing energy costs. Its compact design allows for versatile installation, making it an excellent option for homes with space constraints with its 21in cabinet. Whether you need upflow, downflow, or horizontal installation, this furnace adapts to multiple configurations. It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, switching from natural gas to propane is simple.
Compatible with most 24V thermostats, this furnace ensures easy operation and precise temperature control. For added reassurance, it comes with a 10-year parts warranty and a lifetime heat exchanger warranty to ensure long-lasting comfort and reliability in your home.
Features
- Filter Size: Side Return: 16x25x1 Bottom Return: varies on furnace casing width 14x25 16x25 20x25 24x25
- Durable Build & Finish
- Multi-Position Application
- Two-Stage DC motor
- Quiet Operation
- Superior Performance
- Durable Build & Finish
- Optional LP Kit
- Multi-Position Application
- 80% AFUE
- Energy Efficient
- Compatible with R454b Refrigerant
Additional specifications
| UPC | 840255588614 |
|---|---|
| Series | Versapro R-454B 80% AFUE Gas Furnace |
| Configuration | Multi-Position |
| Input (BTU/h) | 80000 |
| Output (BTU/h) | 64000 |
| Airflow (CFM) | 1300 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 8 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 5 |
| Gas connection (in) | 3/4in |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Years |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 23.5 x 41 x 31.02 |
| Shipping weight (lbs) | 163 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Gas Furnace |
|---|---|
| Compressor / Stages | Single |
| AFUE | 80 |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Fuel Type | Natural/Propane Gas |
Physical & Certifications
| Dimensions (W x H x D) | 21 x 33.75 x 28.5 |
|---|---|
| Weight | 135 lb |
