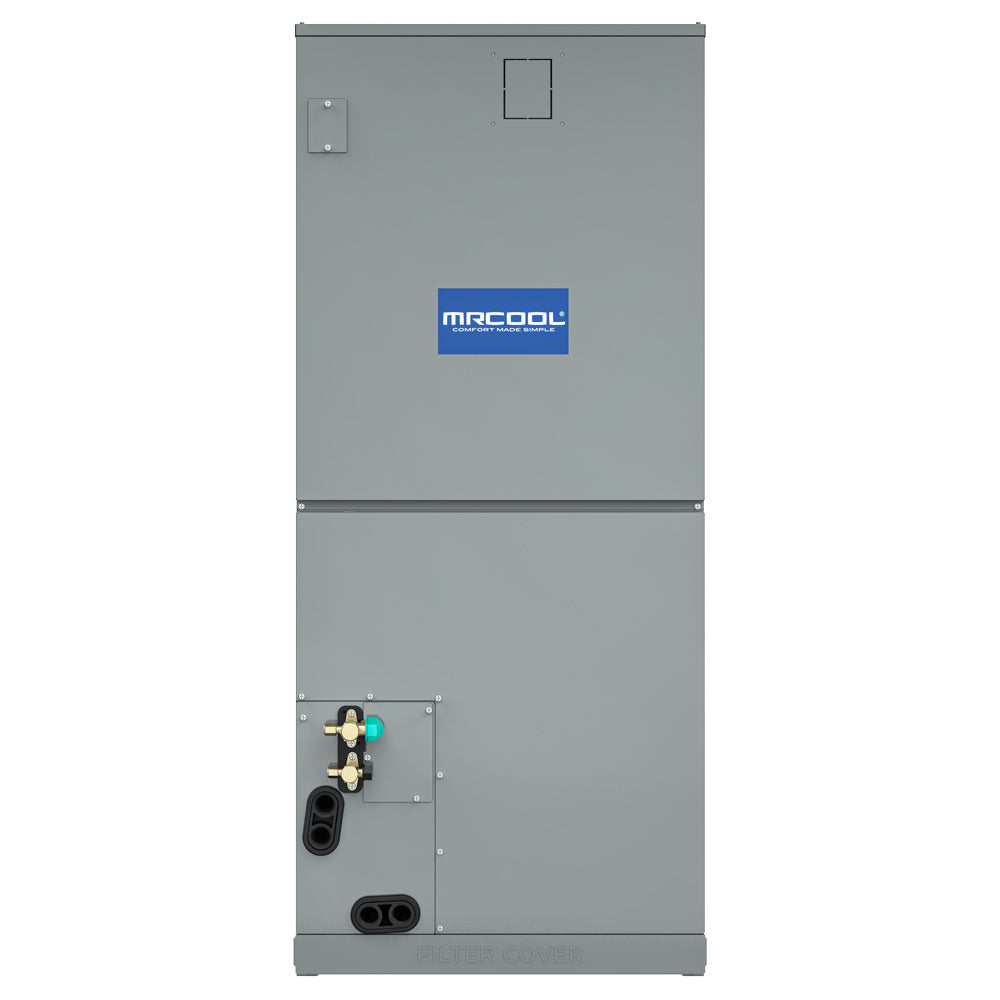

MRCOOL 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
2.5 Ton | 208-230V
- 2.5 Ton capacity
- Runs on 208-230V power
Key Specifications
Product Overview
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler offers a prudent and economical solution to maintain ideal indoor temperatures year-round, providing efficiency, quiet operation, and effectiveness. With a SEER2 rating of 16.5, this handler efficiently caters to spaces of approximately 1250 square feet, serving as a reliable upgrade from older units. Constructed from robust painted galvanized steel, the MRCOOL® VersaPro® Central Ducted Air Handler ensures durability and longevity in serving your household. Maintenance is simplified with its easily removable filter and self-diagnostic panel, facilitating quick identification and resolution of any issues. Installation versatility is another standout feature of this air handler, providing multiple positioning options including upflow, downflow, and horizontal orientations, both left and right. Thanks to the 25-foot Quick Connect® precharged line set, installation is straightforward and hassle-free. Each line set comes precharged with eco-friendly R-410A refrigerant, eliminating the need for additional vacuuming. Moreover, an optional heat kit is available for enhanced functionality. Equipped with a wireless remote featuring the innovative Follow Me function, this air handler automatically adjusts airflow temperature based on the remote's location within the room, ensuring consistent comfort regardless of your whereabouts. Additionally, the inclusion of a wired thermostat provides convenient and reliable temperature control in any area. Investing in the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler comes with the added peace of mind of a 10-year parts and compressor warranty provided by MRCOOL®. This comprehensive warranty coverage further enhances the value of this top-tier air handler, offering homeowners hassle-free protection and assurance.
Additional specifications
| UPC | 840255577557 |
|---|---|
| Series | VersaPro |
| Airflow (CFM) | 1088.24/894.12/805.88/711.76 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 4.5 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 164.04 |
| Sound level low (dBA) | 36.5 |
| Sound level high (dBA) | 43.5 |
| AHRI certified | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 24.41 x 52.56 x 26.57 |
| Shipping weight (lbs) | 157.41 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 2.5 Ton |
| Sound Level | 40.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 21.02 x 49.02 x 21.02 |
|---|---|
| Weight | 128.53 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
