MRCOOL

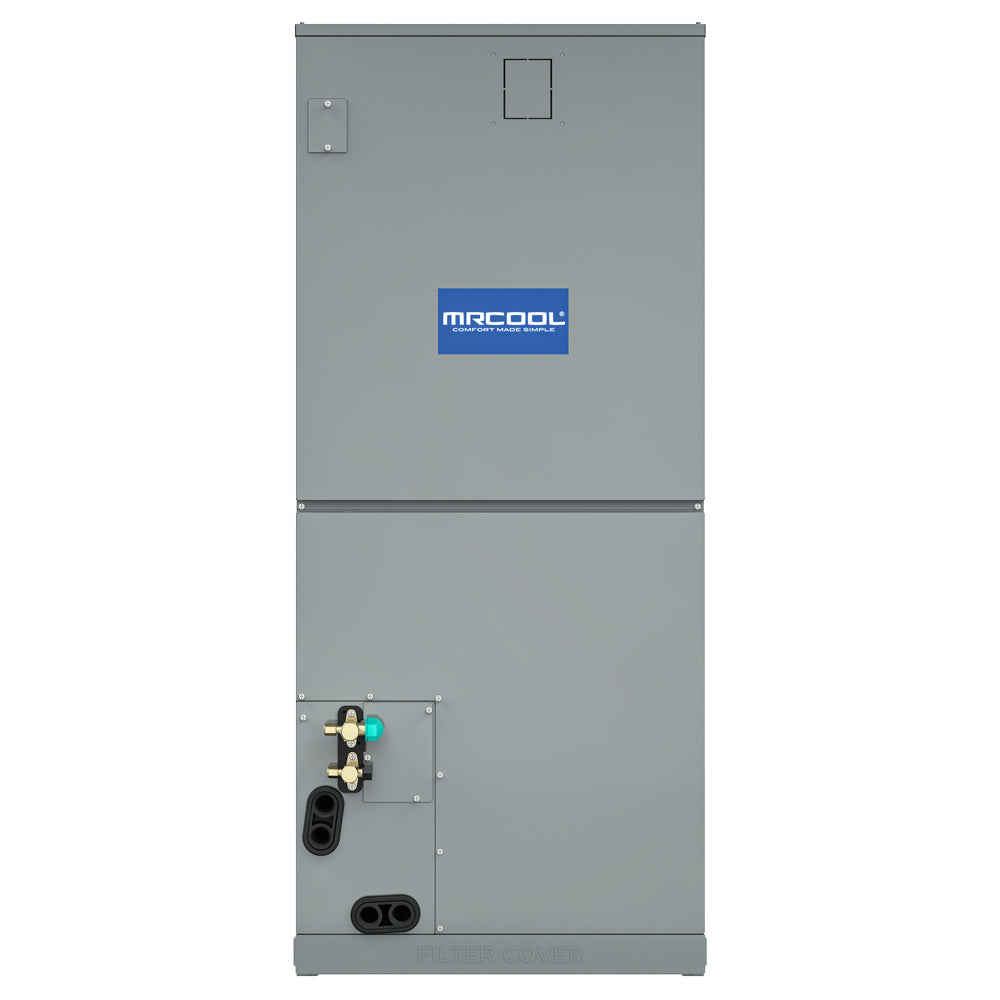

MRCOOL 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler
1.5 Ton | 208-230V
- 1.5 Ton capacity
- Runs on 208-230V power
Key Specifications
Product Overview
Selecting the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 750 square feet of space and boasting a SEER2 rating of 16.6, this air handler serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes. Installation versatility is a key feature of the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations on both sides. Thanks to the included 25-foot Quick Connect® precharged line set, installation is straightforward and eco-friendly, requiring no additional vacuuming. Additionally, an optional heat kit is available for enhanced functionality. Equipped with a wireless remote featuring the Follow Me function, this air handler adjusts airflow temperature automatically based on the remote's location in the room, ensuring consistent comfort throughout your home. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space. Investing in the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL®, offering comprehensive coverage and enhancing ease of ownership.
Additional specifications
| UPC | 840255577533 |
|---|---|
| Series | VersaPro |
| Airflow (CFM) | 617.65/576.47/529.41/494.12 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 2.5 |
| Max fuse / breaker (A) | 15 |
| Max line set length (ft) | 98.42 |
| Sound level low (dBA) | 35.5 |
| Sound level high (dBA) | 39.5 |
| AHRI certified | yes |
| Parts warranty (years) | 10 years |
| Compressor warranty (yrs) | 10 years |
| Shipping W x H x D (in) | 20.87 x 48.62 x 26.57 |
| Shipping weight (lbs) | 131.61 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Tonnage | 1.5 Ton |
| Sound Level | 38.5 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 17.52 x 45 x 21.02 |
|---|---|
| Weight | 106.48 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
