Trane

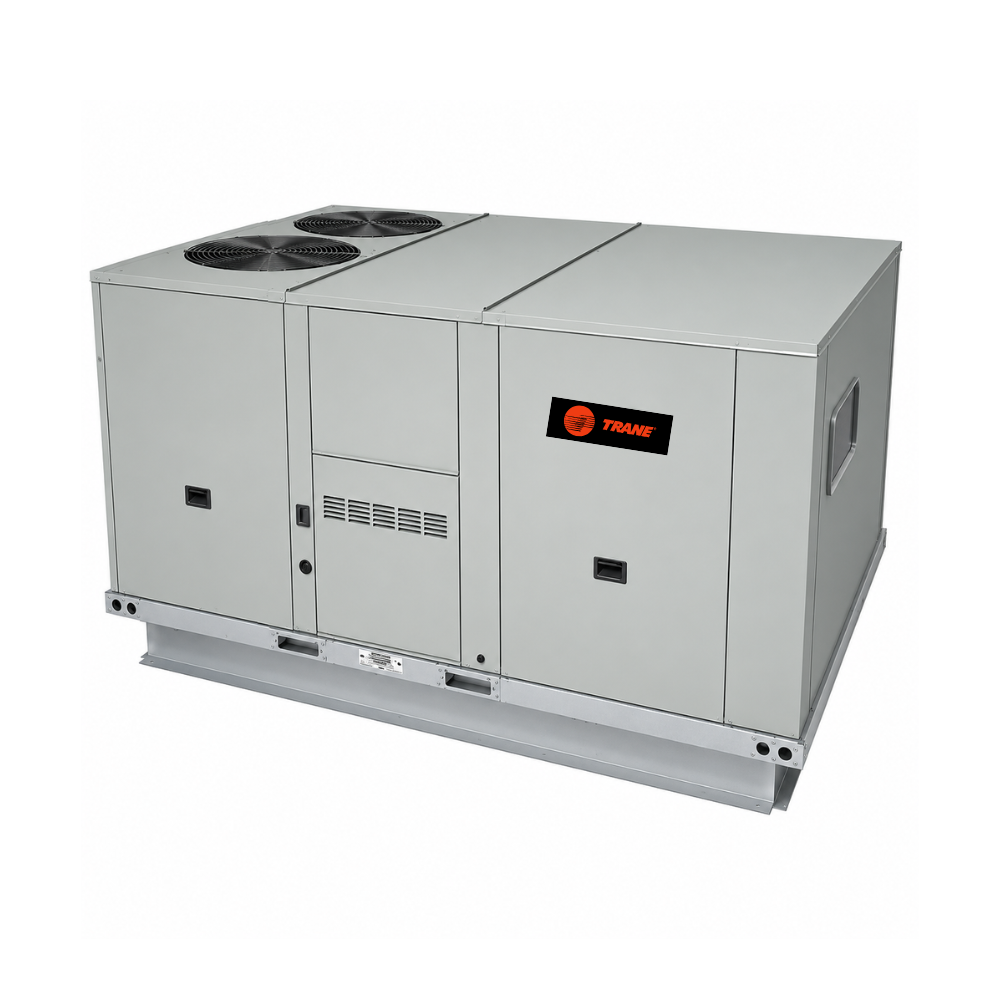

Trane 7.5 Ton 86,000 BTU Commercial Gas/Electric Packaged Unit | 14.6 IEER | R-454B | 208/230V 3-Phase | Foundation Series | Single Stage
7.5 Ton | R-454B | 208-230V
- 86,000 BTU cooling capacity
- Single-Stage compressor
- Uses R-454B refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Trane Foundation Series 7.5 Ton Commercial Gas/Electric Packaged Unit — Built for Demanding Commercial Applications
When your building needs dependable year-round climate control, the Trane Foundation Series commercial packaged unit delivers. At 7.5 tons and 86,000 BTU, this gas/electric rooftop unit is engineered for light commercial buildings, retail spaces, schools, and office environments where reliability and efficiency aren't optional.
Certified Efficiency That Cuts Operating Costs
With a 14.6 IEER and 11.6 EER rating, the Foundation Series meets and exceeds current commercial energy efficiency standards. For facility managers and building owners, that translates directly to lower monthly utility bills without sacrificing comfort or capacity.
Next-Generation Refrigerant — R-454B
This unit operates on R-454B, a low-GWP refrigerant that replaces R-410A and meets current and upcoming environmental regulations. Choosing R-454B now means your system is future-proofed against refrigerant phase-out compliance requirements.
Single-Stage Gas/Electric Design
The integrated gas heating and electric cooling design eliminates the need for separate heating and cooling equipment. Single-stage operation keeps controls simple, service straightforward, and installation costs lower — a practical advantage for contractors and building owners alike.
Electrical Specs Built for Commercial Power
Rated for 208/230V 3-phase power, this unit is ready for standard commercial electrical infrastructure. No special transformers or costly electrical modifications required on most commercial installations.
Why Contractors and Facilities Teams Choose Trane Foundation Series
- Proven Trane reliability backed by one of the industry's most trusted HVAC brands
- All-in-one heating and cooling simplifies rooftop equipment planning
- R-454B refrigerant compliance eliminates future retrofit costs
- 3-phase power compatibility for direct commercial installation
- Single-stage simplicity reduces service calls and diagnostic complexity
Specifications at a Glance
| Spec | Detail |
|---|---|
| Capacity | 7.5 Ton / 86,000 BTU |
| IEER | 14.6 |
| EER | 11.6 |
| Refrigerant | R-454B |
| Voltage | 208/230V |
| Phase | 3-Phase |
| Heating | Gas |
| Cooling | Electric |
| Stages | Single Stage |
| Series | Foundation Series |
Technical Specifications
Performance
| System Type | Packaged Systems |
|---|---|
| Application | Light Commercial |
| Capacity | 86,000 BTU |
| Tonnage | 7.5 Ton |
| Compressor / Stages | Single-Stage |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Fuel Type | Electric |
Shipping & Delivery
Manufacturer Warranty
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
