MRCOOL

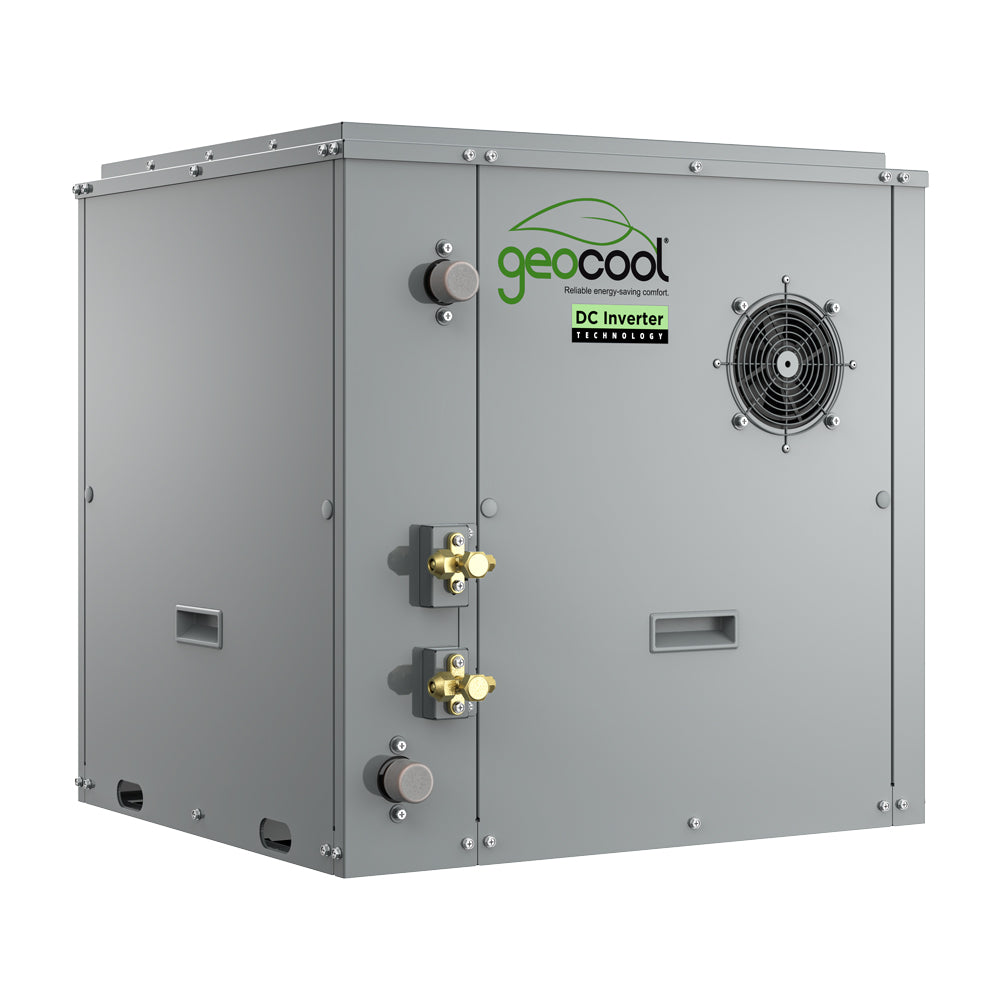

MRCOOL GeoCool 48K BTU 4T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
R-410A | 208 / 230V
- Up to 50500 BTU cooling capacity
- Uses R-410A refrigerant
- Runs on 208 / 230V power
Key Specifications
Product Overview
Embrace comfort with the GeoCool® all DC Inverter Technology. Equipped with the highprecision Electronic Expansion Valve, allowing for more accurate temperature control while also keeping the utility bill down. The flexibility of four independent modules makes it easy to meet the installation requirements of different air outlet methods and applications. Space constraints are less of an issue when a custom built layout is an option! For a long term solution with lower maintenance costs, design your own GeoCool® Inverter Series Geothermal unit
Features
- Up to 70 EER
- DC Inverter technology
- Closed loop - Full load - Cooling Current Input: 13 Heating Current Input: 17 || Open Loop- Full Load - Cooling Current Input: 10 Heating Current Input: 17
- Open loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
- Closed loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
- Cooling Operating Range: Inlet: 44.6F - 107.6F || Ambient: 50F - 100.4F || Return Air: 60.8F - 89.6F
- Heating Operating Range: Inlet 21.2F - 89.6F || Ambient: 39.2F - 84.2F || Return Air: 50F - 80.6F
- Open loop - Full load - EER: 27.02 COP: 4.2 || Open Loop- Part Load - EER: 70.97 COP: 6.2
- Closed loop - Full load - EER: 18.29 COP: 3.4 || Closed Loop- Part Load - EER: 48.79 COP: 5.1
- Full Fluid Flow (GPM): 7.93 || Partial Fluid Flow (GPM): 7.93
- Open loop - Full load - Cooling Capacity: 50500 BTU Heating Capacity: 48000 BTU || Open Loop- Part Load - Cooling Capacity: 13300 BTU Heating Capacity: 11000 BTU
- Closed loop - Full load - Cooling Capacity: 46500 BTU Heating Capacity: 40000 BTU || Closed Loop- Part Load -Cooling Capacity: 14500 BTU Heating Capacity: 9800 BTU
Additional specifications
| UPC | 840255577960 |
|---|---|
| Series | GeoCool Inverter Series |
| Configuration | Multi Positional |
| Heating capacity (BTU/h) | Up to 46500 |
| EER | Up to 70 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 26 |
| Max fuse / breaker (A) | 35 |
| Inverter | DC |
| Parts warranty (years) | 10 years |
| Shipping W x H x D (in) | 28.54 x 30.71 x 27.56 |
| Shipping weight (lbs) | 254 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Geothermal Heat Pump |
|---|---|
| Capacity | Up to 50500 BTU |
Electrical & Fuel
| Voltage | 208 / 230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
Physical & Certifications
| Dimensions (W x H x D) | 24.80 x 25.12 x 22.44 |
|---|---|
| Weight | 231.53 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
