MRCOOL

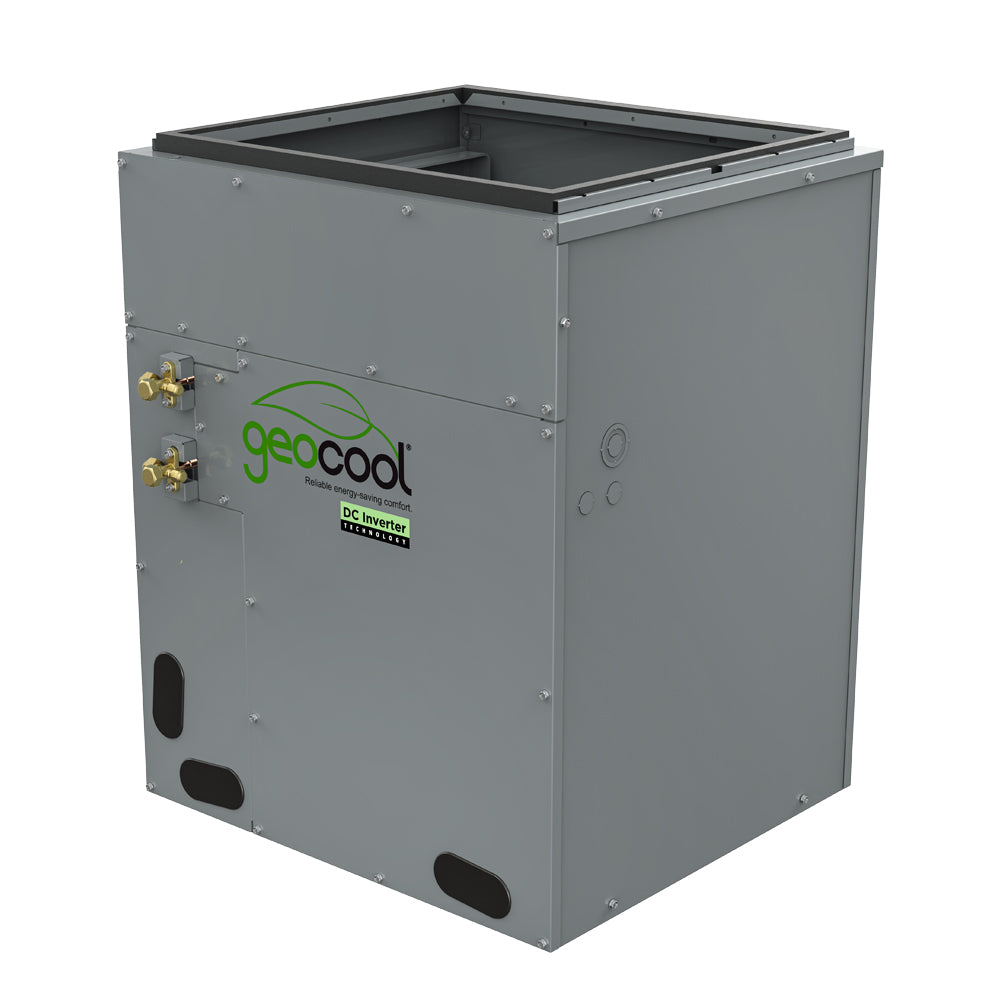

MRCOOL GeoCool 60K BTU 5T Multi Positional Water/Ground CuNi Coil
R-410A | 208 / 230V
- Uses R-410A refrigerant
- Runs on 208 / 230V power
Key Specifications
Product Overview
For supremely high efficiency and energy savings, the MRCOOL® Geocool® Geothermal Split System A-Coil module is an excellent choice for reliable heating and cooling with lower utility costs. Expect easier installation thanks to the compatible MRCOOL® Geocool® No-Vac® Line Set, and more accurate temperature control with the high precision electronic expansion valve. The system boasts an impressive EER of up to 70 and is reliably built to last with a durable finish. When combined with the MRCOOL® Geocool® Geothermal Split System compressor, blower, and optional return air box, the complete system offers flexible installation options including vertical, horizontal, and split configurations. This is an attractive feature for homes with space constraints and alternative air outlet methods and situations. For additional peace of mind, the MRCOOL® Geocool® Geothermal Split System A-Coil module offers a 5-year limited labor warranty as well as a 10-year parts warranty.
Additional specifications
| UPC | 840255577991 |
|---|---|
| Series | GeoCool Inverter Series |
| Configuration | Multi Positional |
| Refrigerant charge (oz) | 35.27 |
| EER | Up to 70 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5 |
| Max fuse / breaker (A) | 6 |
| UL listed | Yes |
| Parts warranty (years) | 10 years |
| Shipping W x H x D (in) | 28.74 x 33.86 x 28.74 |
| Shipping weight (lbs) | 146 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Geothermal Heat Pump |
|---|
Electrical & Fuel
| Voltage | 208 / 230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 24.80 x 31.30 x 22.44 |
|---|---|
| Weight | 124.85 lb |
| Color / Finish | Gray |
