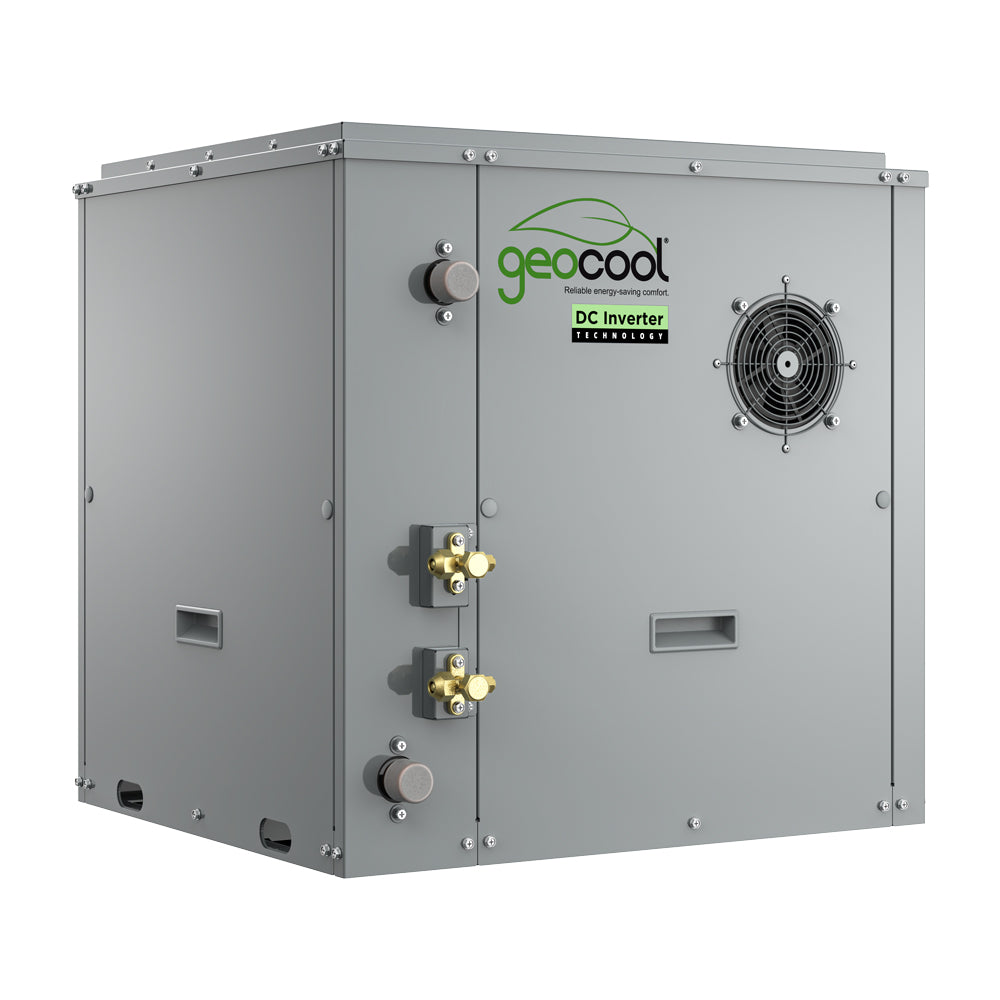

MRCOOL GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
R-410A | 208 / 230V
- Up to 62000 BTU cooling capacity
- Rotary Inverter compressor
- Uses R-410A refrigerant
- Runs on 208 / 230V power
Key Specifications
Product Overview
Prepare to enjoy impressive performance and exceptional energy efficiency with the MRCOOL® Geocool® Geothermal Split System Compressor. With an all DC inverter system and a high precision electronic expansion valve, you can expect a much quieter, stable, and energy-saving experience with more accurate temperature control than with standard heating and cooling systems. The open loop water-to-air system’s superb energy efficiency boasts up to 70 EER, significantly lowering utility costs. Installation is easy with the compatible MRCOOL® Geocool® No-Vac® Line Set. The system features multiple flexible installation options including vertical, horizontal, and split configurations. This makes this system an excellent solution if your home has space constraints or requires modification to a different air outlet method. The compressor features multiple protections against potential damage along with a reliable and durable build and finish. The co-axial copper-nickel heat exchanger makes the system suitable for salt solution and lower water quality, and improves corrosion resistance and unit reliability. With a cooling noise level as low as 58dBA and heating noise level as low as 60dBa, you’re able to enjoy superior comfort without any distraction. For peace of mind, this MRCOOL® Geocool® Geothermal Split System Compressor offers a 10-year parts warranty as well as a 5-year limited labor warranty.
Features
- Up to 70 EER
- Any way you want it - Multi-Position Installation capabilities
Additional specifications
| UPC | 840255577977 |
|---|---|
| Series | GeoCool Inverter Series |
| Configuration | Multi Positional |
| Heating capacity (BTU/h) | Up to 55600 |
| EER | Up to 70 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 26 |
| Max fuse / breaker (A) | 35 |
| Inverter | DC |
| UL listed | Yes |
| Parts warranty (years) | 10 years |
| Shipping W x H x D (in) | 28.54 x 30.71 x 27.56 |
| Shipping weight (lbs) | 254 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Geothermal Heat Pump |
|---|---|
| Capacity | Up to 62000 BTU |
| Compressor / Stages | Rotary Inverter |
Electrical & Fuel
| Voltage | 208 / 230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 24.80 x 25.12 x 22.44 |
|---|---|
| Weight | 231.53 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
