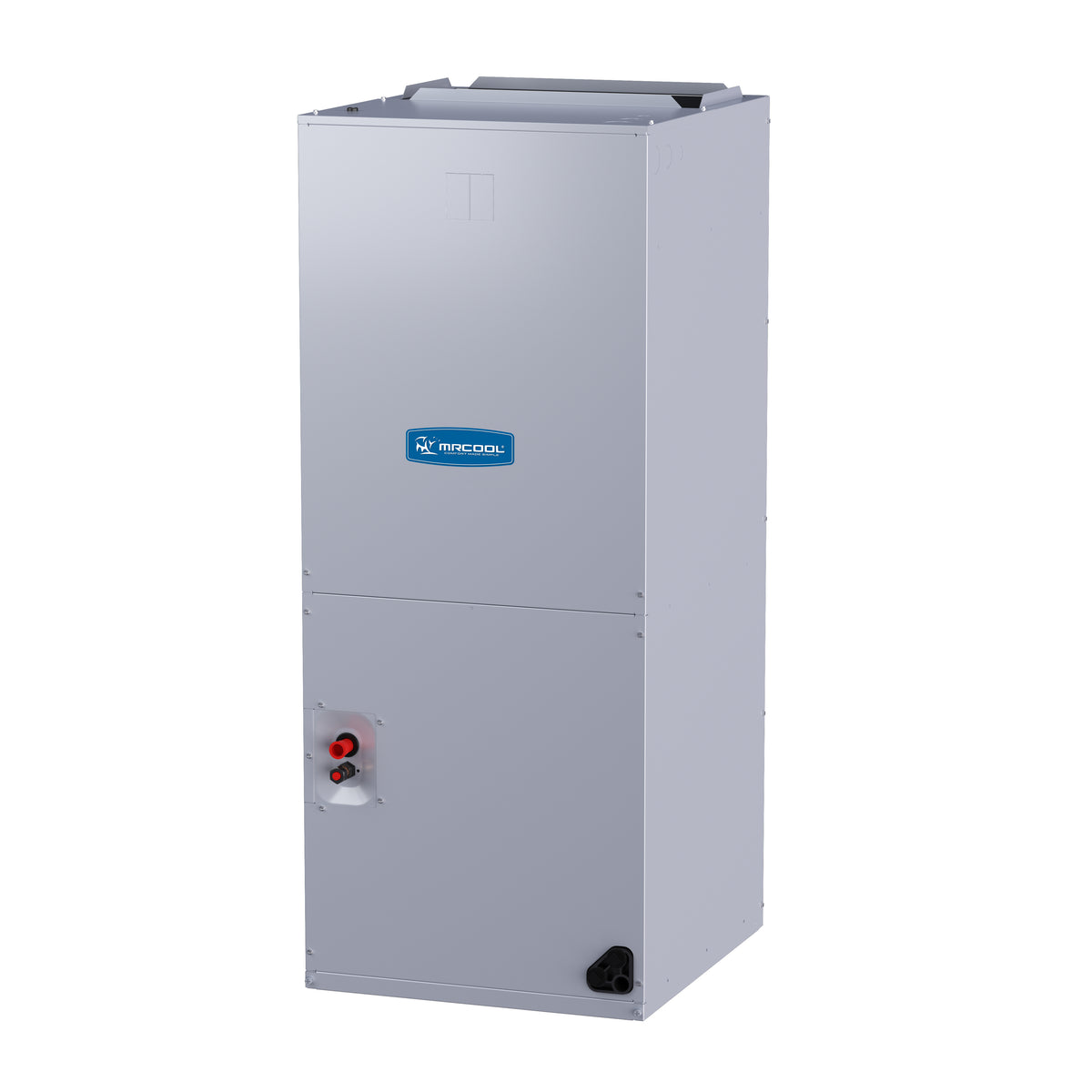

MRCOOL PRODIRECT Series 2 Ton BTU PSC Air Handler
R410a | 208/230V
- 24000 BTU cooling capacity
- Uses R410a refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The 2 Ton PRODIRECT™ Series PSC Air Handler is an excellent choice for enhancing your home's HVAC system. It is compatible with both cooling and heat pump systems, offering flexibility for various home configurations. With a SEER2 rating of 15.2, this air handler delivers good energy efficiency. Constructed with all-aluminum tubes and fins, it is designed for durability and resistance to corrosion, instilling long-lasting performance. The factory-sealed cabinet of the 24K PRODIRECT™ Series PSC Air Handler minimizes air leakage to 2% or less at 1.0 inch water column pressure, which helps maintain energy consumption. Additionally, its versatile design allows for multi-positional installation, making it suitable for different spaces. The unit features both horizontal and vertical condensate drain pans, and routine maintenance is straightforward, thanks to the slide-out blower and coil components. The heating capacity can also be adjusted with optional heat kits ranging from 5 to 20 kW to meet your comfort needs. This air handler is AHRI-certified and ETL-listed, ensuring it meets high industry standards. MRCOOL® provides a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. The 2 Ton PRODIRECT™ Series PSC Air Handler is a reliable and efficient solution for maintaining consistent comfort in your home year-round.
Features
- Multiposition installation
- Blower and coil easy slide out for ease of maintenance
- Evaporator Coil Tube Material: Aluminum
- Evaporator Coil Tube Size(in.): 9/32
- AHRI Listed & ETL Certified.
Additional specifications
| UPC | 840255585729 |
|---|---|
| Series | PRODIRECT Series PSC Air Handler |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 2.9 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | PSC |
| Blower motor HP | 1/4 |
| Aux heater included | N |
| Aux heater available | Y |
| Aux heater sizes (kW) | 5,7.5,10 |
Documents
Technical Specifications
Performance
| System Type | Mini Split Air Handler |
|---|---|
| Capacity | 24000 BTU |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410a |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 19 5/8 x 46 1/2 x 21 5/8 |
|---|---|
| Weight | 128 lb |
| Color / Finish | Silver |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
