MRCOOL

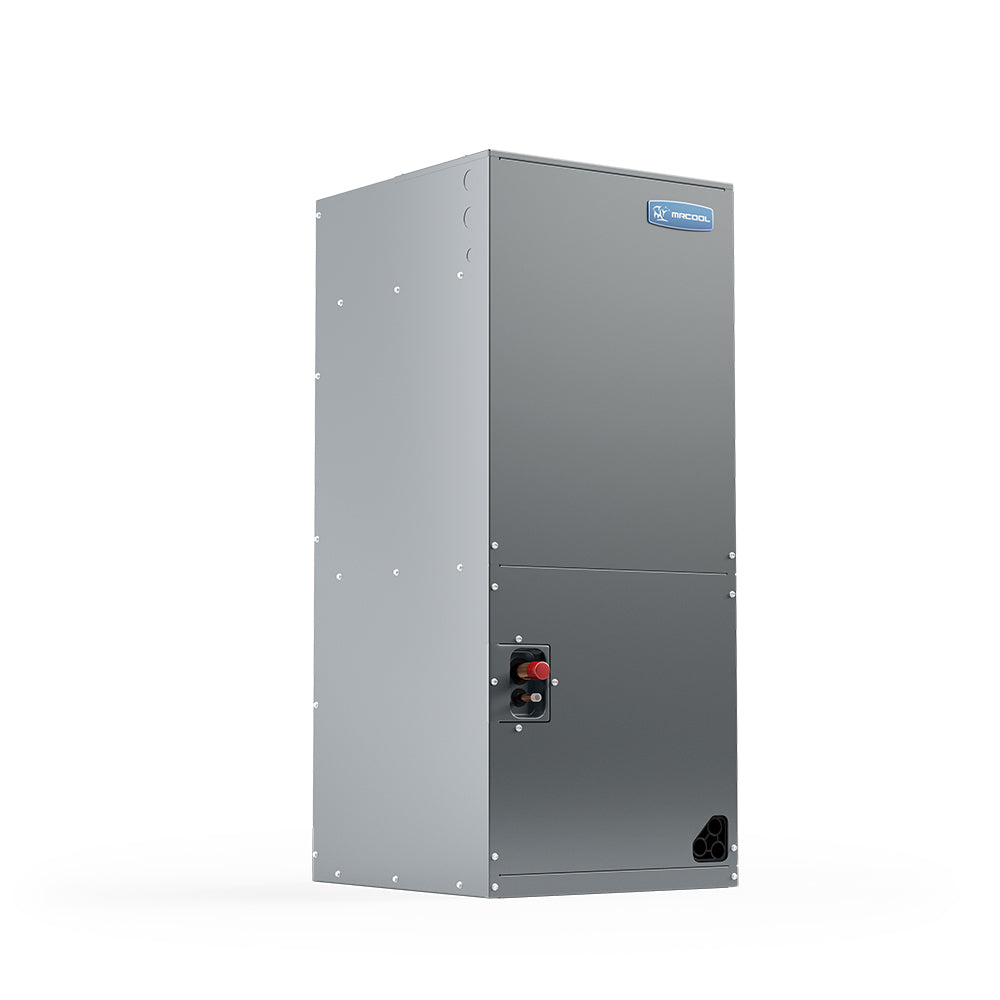

MRCOOL ProDirect 3 Ton up to 15 SEER2 Split System A/C Air Handler - Multiposition
208-230V
Key Specifications
Product Overview
You don’t have to compromise your comfort to save money! Just get this ProDirect 3 Ton 15 SEER Multiposition Split System Air Handler. When this unit is installed, you’ll just sit back, relax, and let the “A” shaped evaporator coil take the discomfort away from your home. The three-speed direct drive blower motor will then push the comfortable air through a removable filter to clean it and out into your home for you and your family to enjoy. You can also have electric heat kits installed in this air handler to keep you toasty on freezing nights. It’ll be hard to remember how your home felt before you got this air handler started providing comfort for the entire family. The galvanized steel cabinet that encases the air handler protects it from corrosion and other harm. To reassure you of its quality, this unit is AHRI certified and ETL listed. When you register this product online, you’ll be given a long term warranty for extra peace of mind. Make your life at home more comfortable with this MRCOOL ProDirect 3 ton split system air handler.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Additional specifications
| UPC | 840255553926 |
|---|---|
| Series | PRODIRECT Air Handler |
| Configuration | Multi-position |
| Airflow (CFM) | 1042 |
| Cycle (Hz) | 60 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW, 10kW, 15kW |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 22.83 x 47.63 x 25.60 |
| Shipping weight (lbs) | 140 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Sound Level | 56 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
Physical & Certifications
| Dimensions (W x H x D) | 19.67 x 45.75 x 22.00 |
|---|---|
| Weight | 131.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
