MRCOOL

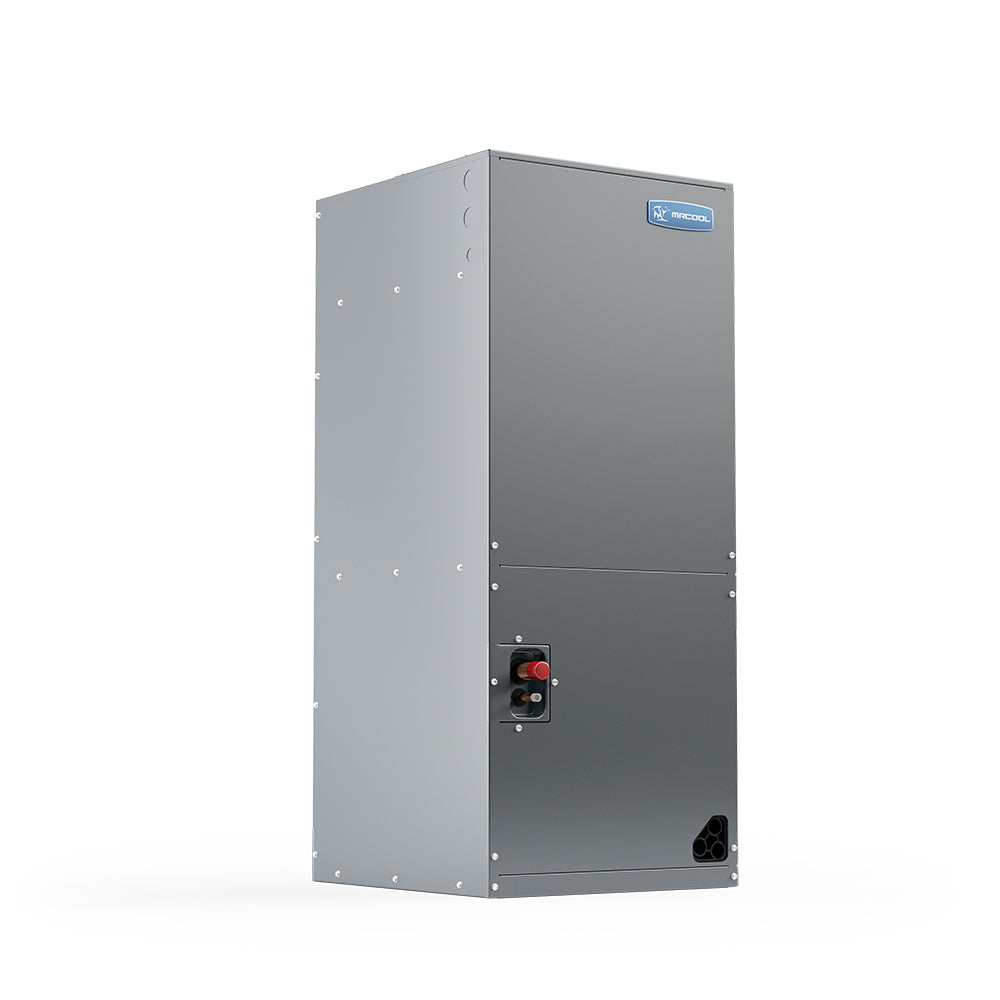

MRCOOL ProDirect 1.5 Ton up to 15 SEER2 Split System A/C Air Handler - Multiposition
208-230V
Key Specifications
Product Overview
Make your life easier by bringing comfort into your home for you and your family to relax in with this multiposition MRCOOL ProDirect 1.5 Ton 15 SEER Split System Air Handler. There’s nothing like getting home and getting greeted by the precisely cooled or heated air that the unit’s “A” shaped evaporator coil helped create. You’ll feel this comforting air throughout every corner of your home with the help of the three-speed direct drive blower motor. This air will make its way through the removable filter that is easy to clean and replace when needed. When you need extra heat, you can install an electric heat kit in this air handler. The galvanized steel cabinet offers the best protection, because it won’t let anything, like corrosion, get in the way of you and your comfort. The warranty that covers this AHRI certified, ETL listed air handler when you register your product online will reassure you that everything will be fine in case something goes wrong. You don’t want to struggle to keep comfortable within your own home, so you need the MRCOOL 1.5 ton ProDirect split system air handler to ensure absolute comfort.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- AHRI Certified & ETL listed
Additional specifications
| UPC | 840255553896 |
|---|---|
| Series | PRODIRECT Air Handler |
| Configuration | Multi-position |
| Airflow (CFM) | 678 |
| Cycle (Hz) | 60 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 22.83 x 47.63 x 25.60 |
| Shipping weight (lbs) | 134 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Sound Level | 50 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
Physical & Certifications
| Dimensions (W x H x D) | 19.67 x 45.75 x 22.00 |
|---|---|
| Weight | 123.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
