MRCOOL

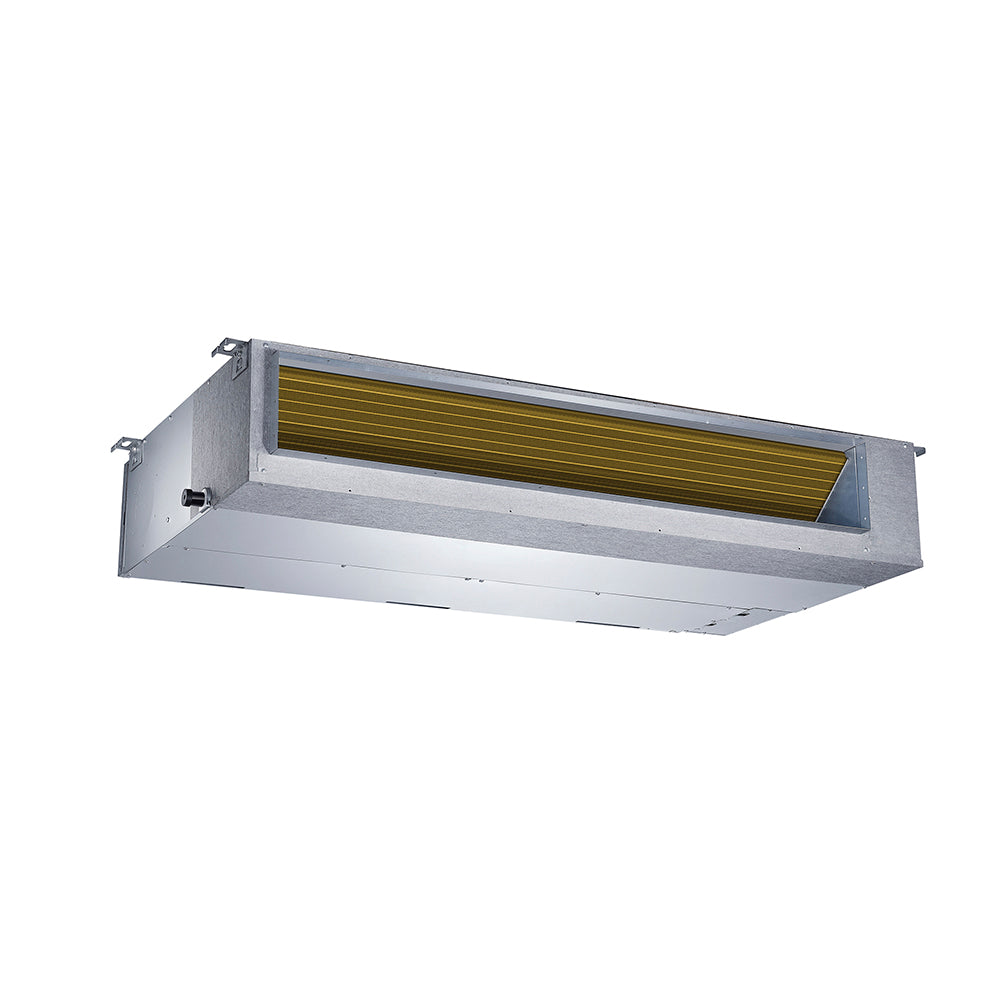

MRCOOL Olympus 9,000 BTU 3/4 Ton Ducted Mini-Split Air Handler - 230V/60Hz
0.75 Ton | R-454B | 208/230V
- 0.75 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® OLYMPUS 9K DUCT Air Handler is a reliable solution for heating and cooling spaces up to 400 square feet, making it an excellent fit for bedrooms, home offices, or other compact areas. Its ceiling-integrated design allows for a discreet, flush installation that blends effortlessly into any interior, providing a sleek and contemporary appearance. This space-saving setup is ideal for both residential and light commercial environments where aesthetics and functionality are equally important.
For convenient operation, the unit includes both a wall-mounted wired controller and a handheld remote, allowing you to adjust your settings from across the room or right at your fingertips. Whether you're relaxing on the couch or managing temperature throughout the day, controlling your climate is simple and user-friendly.
The air handler utilizes R-454B refrigerant, a next-generation, eco-conscious option that combines high performance with environmental responsibility. Its low global warming potential (GWP) significantly reduces the unit’s ecological impact while maintaining energy efficiency and reliable operation. For environmentally mindful homeowners, R-454B is a smart choice that supports sustainability without compromising performance.
Backed by a 7-year compressor coverage and a 5-year parts warranty, the MRCOOL® OLYMPUS 9K DUCT Air Handler is built to deliver dependable, long-term comfort. It’s a perfect solution for those who appreciate energy efficiency, quiet operation, and sleek design all in one dependable system.
Additional specifications
| UPC | 840255587662 |
|---|---|
| Series | Olympus Duct |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 323.7/264.9/206/147.2/117.7 |
| Line set fitting | Flare |
| Mount type | Ducted |
| Max coverage area | Up to 400 |
| Sound level low (dBA) | 23 |
| Sound level high (dBA) | 32.5 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | No |
| Remote included | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Shipping weight (lbs) | 46.74 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 0.75 Ton |
| Sound Level | 32.5/32.5/31/29.5/23 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 27.56 x 7.87 x 19.92 |
|---|---|
| Weight | 39.46 lb |
| Color / Finish | Metal |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
