MRCOOL

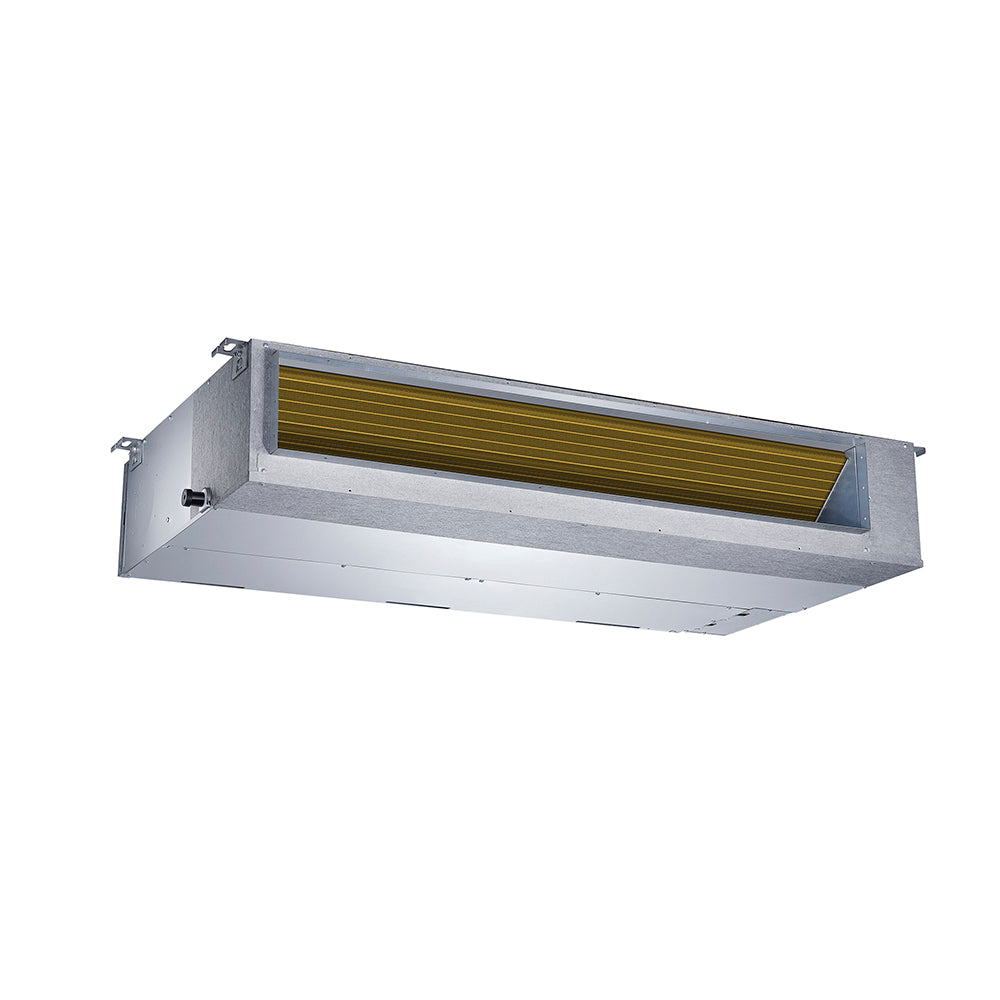

MRCOOL Olympus 18,000 Btu 1.5 Ton Ducted Mini-Split Air Handler - 230V/60Hz
1.5 Ton | R-454B | 208/230V
- 1.5 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® OLYMPUS 18K DUCT Air Handler delivers dependable heating and cooling for areas up to 800 square feet, making it an excellent solution for spacious bedrooms, home offices, or compact commercial spaces. Its low-profile, ceiling-concealed installation allows it to virtually disappear from view, maintaining a clean and modern interior without sacrificing performance.
Designed with versatility in mind, this system seamlessly blends into residential or light commercial environments, offering both elegance and efficiency in one compact package. Whether you're looking to optimize comfort at home or in a workspace, this unit is engineered to provide precise climate control without dominating your space.
Control is effortless thanks to the included wired wall-mounted controller and handheld remote. Adjusting your temperature preferences is simple and convenient—no need to interrupt your routine or leave your seat.
Environmentally conscious performance is also a hallmark of this system, utilizing advanced R-454B refrigerant. This low global warming potential refrigerant provides outstanding heating and cooling while significantly reducing your carbon footprint. It's an ideal choice for anyone seeking high performance paired with sustainability.
The MRCOOL® OLYMPUS 18K DUCT Air Handler is backed by a 7-year compressor protection and a 5-year parts warranty. It’s the perfect choice for those who prioritize comfort, energy efficiency, and modern convenience in a sleek, discreet design.
Additional specifications
| UPC | 840255587686 |
|---|---|
| Series | Olympus Duct |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 600.4/559.2/500.3/441.4/441.4 |
| Line set fitting | Flare |
| Mount type | Ducted |
| Max coverage area | Up to 800 |
| Sound level low (dBA) | 32 |
| Sound level high (dBA) | 40 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | No |
| Remote included | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Shipping weight (lbs) | 66.14 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 1.5 Ton |
| Sound Level | 40/40/39/38/32 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 1/2" |
Physical & Certifications
| Dimensions (W x H x D) | 34.65 x 8.27 x 26.54 |
|---|---|
| Weight | 54.45 lb |
| Color / Finish | Metal |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
