MRCOOL

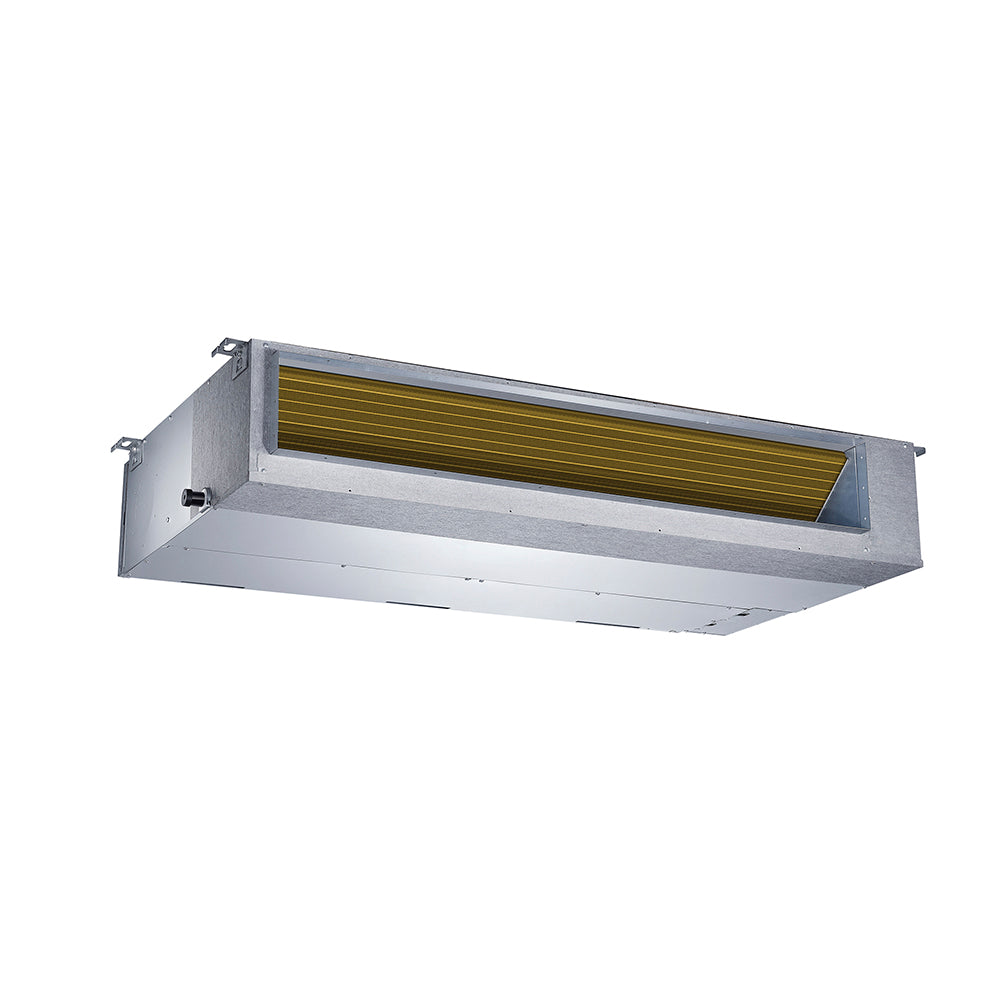

MRCOOL Olympus 12,000 BTU 1 Ton Ducted Mini-Split Air Handler - 230V/60Hz
1 Ton | R-454B | 208/230V
- 1 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® OLYMPUS 12K DUCT Air Handler delivers efficient and reliable heating and cooling for spaces up to 550 square feet, making it a great choice for bedrooms, home offices, and similarly sized areas. Designed for a discreet ceiling installation, the unit offers a flush-mount finish that seamlessly integrates with your space, enhancing the room’s aesthetic with a clean, modern look. Its compact and versatile design suits both residential and commercial applications, providing an ideal climate solution without sacrificing valuable square footage.
For added convenience, the system includes both a wired wall-mounted controller and a handheld remote. Whether you prefer adjusting settings from the wall or without leaving the comfort of your couch, climate control is always within easy reach.
This model features R-454B refrigerant, a high-efficiency, environmentally friendly option that delivers outstanding performance while minimizing environmental impact. With a low global warming potential, R-454B supports sustainability and helps reduce your household’s carbon footprint, all without compromising system effectiveness or energy efficiency.
The MRCOOL® OLYMPUS 12K DUCT Air Handler is backed by a 7-year compressor protection and a 5-year parts warranty—ensuring long-lasting performance and peace of mind. For those seeking energy-conscious comfort, modern design, and reliable climate control, this unit offers a high-performance solution tailored to today’s demands.
Additional specifications
| UPC | 840255587679 |
|---|---|
| Series | Olympus Duct |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 400.2/323.7/264.9/176.6/117.7 |
| Line set fitting | Flare |
| Mount type | Ducted |
| Max coverage area | Up to 550 |
| Sound level low (dBA) | 25.5 |
| Sound level high (dBA) | 36 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | No |
| Remote included | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Shipping weight (lbs) | 46.74 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 1 Ton |
| Sound Level | 36/36/34.5/32.5/25.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 27.56 x 7.87 x 19.92 |
|---|---|
| Weight | 39.46 lb |
| Color / Finish | Metal |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
