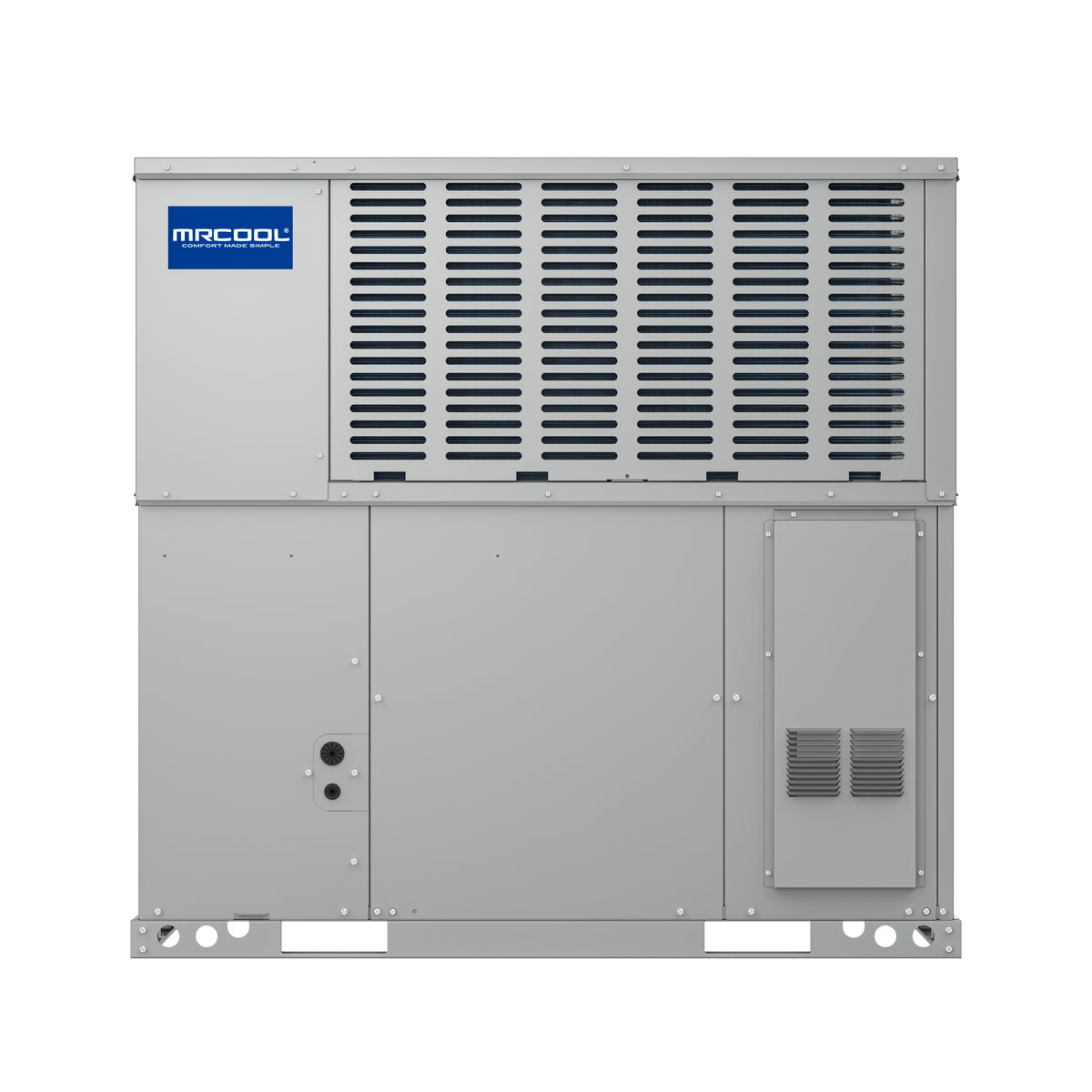

MRCOOL 3.5 Ton 90K BTU Downflow/Horizontal VersaPro® Packaged A/C & Gas - R454B
3.5 Ton | SEER2 13.4 | R-454B | 208/230V
- 40000 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- 81 AFUE heating efficiency
- 1 compressor
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 42K 90,000 BTU Gas Package Unit is an all-in-one heating and cooling solution engineered for consistent, year-round comfort. By combining a 13.4 SEER2 high-efficiency air conditioner with an 81% AFUE gas furnace, it delivers powerful cooling during summer heatwaves and dependable warmth in the coldest winter months. Its hybrid design provides an effective upgrade that encourages comfort and helps reduce monthly energy costs.
The system uses R-454B refrigerant, a next-generation formula with a dramatically lower global warming potential than older refrigerants, reducing environmental impact while maintaining excellent heating and cooling capabilities.
Built for durability, its power-painted galvanized steel cabinet defends against rust, weather damage, and wear, ensuring long-term reliability. The horizontal discharge configuration keeps operation quiet, while aluminum tubing with microchannel coils maximizes heat transfer efficiency and offers superior corrosion resistance compared to copper, reducing maintenance needs over time.
Inside, high-efficiency compressors and an ECM blower motor work together to deliver smooth, quiet, and consistent performance. Integrated safety controls guard against extreme pressure or coil temperature fluctuations, helping to maintain optimal operation even under demanding conditions.
The VersaPro® 42K’s compact footprint and support for both horizontal and downflow installations make it easy to fit into tight spaces. An LP conversion kit is included for quick propane compatibility, and the convenient access panel simplifies servicing.
Backed by a 10-year limited parts warranty and a lifetime heat exchanger warranty, the VersaPro® 42K is built to deliver lasting comfort, efficiency, and peace of mind.
Additional specifications
| UPC | 840255588744 |
|---|---|
| Series | VersaPro® R-454B Package Gas |
| Refrigerant charge (oz) | 60 |
| Input (BTU/h) | 90,000 |
| Output (BTU/h) | 72,000 |
| Airflow (CFM) | 1400 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 29.9 |
| Max fuse / breaker (A) | 45 |
| Inverter | No |
| Blower motor type | ECM |
| Blower motor HP | 1/2 |
| Blower speeds | 4 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Gas connection (in) | 1/2 |
| Min ambient cooling (F) | 64.4 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 52.125 x 45.25 x 52.375 |
| Shipping weight (lbs) | 559 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Gas |
|---|---|
| Capacity | 40000 BTU |
| Tonnage | 3.5 Ton |
| Compressor / Stages | 1 |
| SEER2 | 13.4 |
| EER2 | 11 |
| AFUE | 81 |
| Sound Level | 80 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Fuel Type | Natrual Gas / Propane |
Physical & Certifications
| Dimensions (W x H x D) | 51.56 x 44.81 x 49.75 |
|---|---|
| Weight | 539 lb |
| Color / Finish | Grey |
