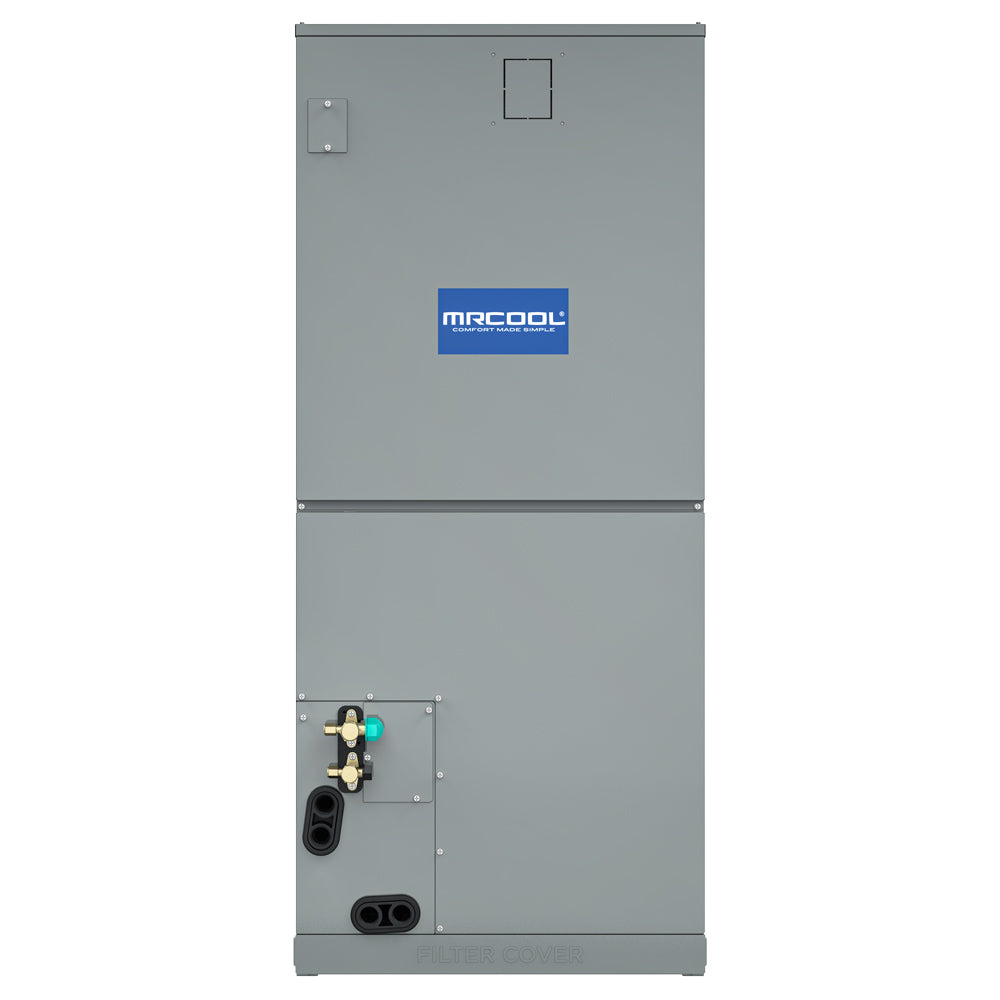

MRCOOL 24K MRCOOL® Hyper Heat Central Ducted Air Handler

Model: CENTRAL-24-HP-MUAH230A00 SKU: CENTRAL-24-HP-MUAH230A00

R-410A | 208-230V

24000 BTU cooling capacity
Uses R-410A refrigerant
Runs on 208-230V power

$1,009.00 Free Shipping

In Stock

Talk to a Product Expert

Free shipping on qualifying equipment Manufacturer warranty included Licensed HVAC product support Secure checkout 30-day returns on unused equipment

Shipping Policy Return & Refund Policy Price Match

At a Glance

Key Specifications

System Type Mini Split Air Handler

Capacity 24000 BTU

Voltage 208-230V · Single Phase

Refrigerant R-410A

Overview

Product Overview

The 24K MRCOOL® Hyper Heat Central Ducted Air Handler is an affordable and efficient choice for your home's heating and cooling requirements, regardless of external weather conditions. With an impressive SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10, its enhanced heating capacity ensures optimal performance. Constructed from painted galvanized steel, the unit's side-discharge design, slide-out blower, self-diagnostics panel, and removable filters make maintenance simple and easy. Effortless installation is possible by an HVAC technician, as the unit is compatible with the optional MRCOOL® No-Vac® Quick Connect® Line Set. Pre-charged with environmentally friendly R410-A refrigerant, this line set removes the need for vacuuming or flare welding and is kink-resistant. It also provides versatile installation possibilities due to its adaptability to various configurations. If required, an optional heat kit can be acquired separately. The unit also includes a wired thermostat and wireless remote. In the unlikely event of any operational concerns, the air handler is backed by a reassuring 10-year warranty for parts and labor, offering you peace of mind. Furthermore, registration is not required for the included labor warranty.

Features

Enhanced Heating Capacity
Includes features such as timer mode, auto cool mode, fan only mode, and more
Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
Multi-Position Installation
Variable Speed
Optional Heat Kit
Compact, Side Discharge Design
R-410A environmentally friendly refrigerant
Follow Me™ Function
Easy-Access Removable Filter

Additional specifications

UPC	840255553100
Series	Central Ducted Hyper Heat
Heating capacity (BTU/h)	24000
Airflow (CFM)	823.53/758.82/694.12/629.41
Cycle (Hz)	60
Min circuit ampacity (A)	4
Max fuse / breaker (A)	15
Inverter	DC
Max line set length (ft)	164.04
Sound level low (dBA)	33
Sound level high (dBA)	39
Aux heater included	No
Aux heater available	Yes
Aux heater sizes (kW)	5kW, 8kW, 10kW, 15kW
AHRI certified	Yes
UL listed	Yes
Shipping W x H x D (in)	20.87 x 48.62 x 26.57
Shipping weight (lbs)	127

Documents

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Technical Specifications

Performance

System Type	Mini Split Air Handler
Capacity	24000 BTU
Sound Level	36 dBA

Electrical & Fuel

Voltage	208-230V
Phase	Single Phase
Refrigerant	R-410A
Connection Size	Liquid 3/8" / Suction 3/4"

Physical & Certifications

Dimensions (W x H x D)	17.52 x 45.00 x 21.02
Weight	105.60 lb
