MRCOOL

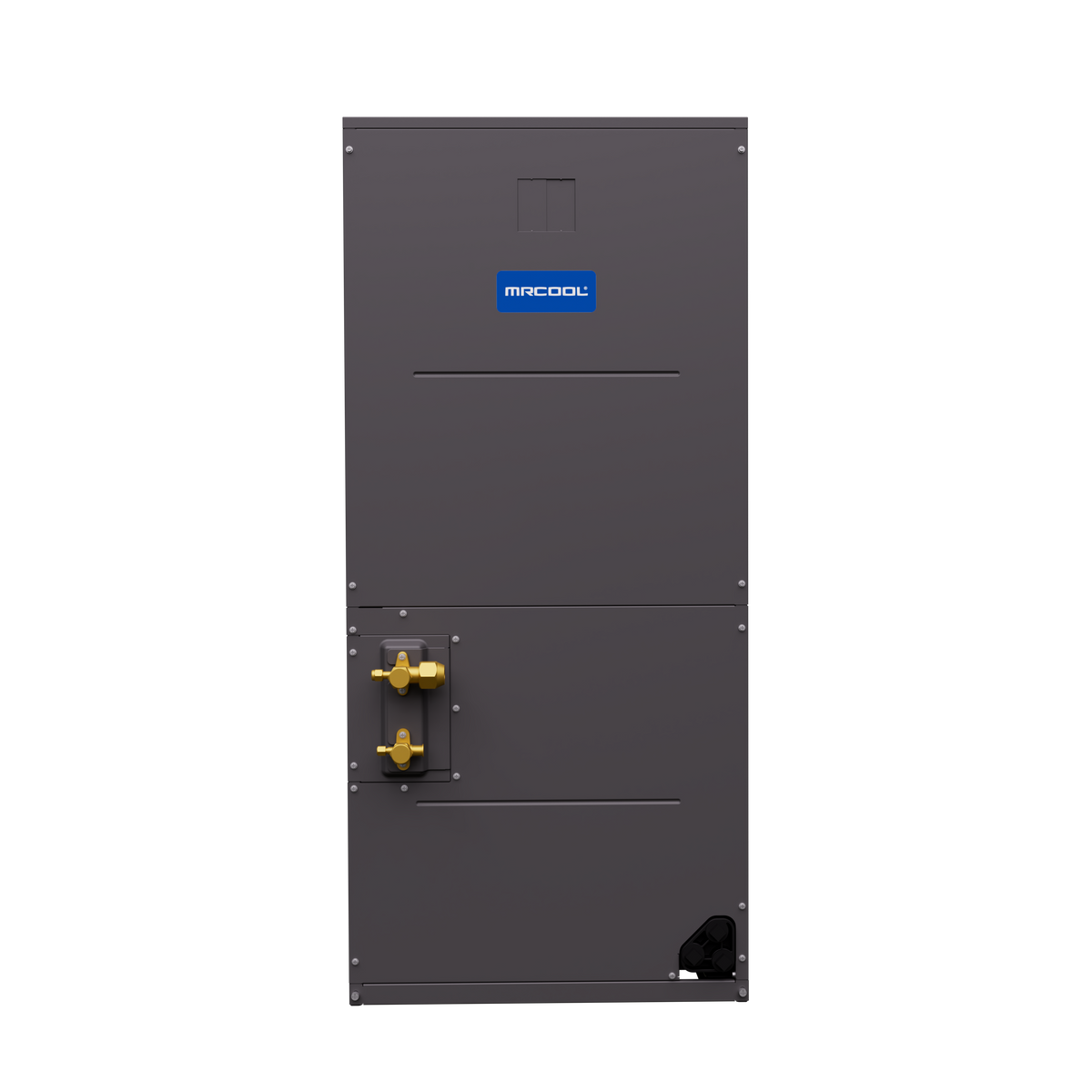

MRCOOL 2 Ton TruInverter Air Handler
2 Ton | R-454B | 208/230V
- 2 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® Signature Series TruInverter™ 24K BTU 230V Multi-Position Air Handler is engineered to deliver dependable, high-efficiency comfort for homes and light-duty applications. Built with advanced TruInverter™ variable-speed technology and next-generation R-454B refrigerant, this system provides smooth, precise temperature control while using significantly less energy than conventional fixed-speed systems. The result is quieter operation, improved humidity control, and lower monthly energy costs.
Designed with maximum flexibility in mind, this air handler supports upflow, downflow, and horizontal installation, making it easy to fit into attics, crawl spaces, closets, or mechanical rooms. Its compact, modern cabinet allows it to install where bulkier systems won’t, without sacrificing airflow or performance. When paired with a compatible TruInverter™ heat pump condenser, the system delivers reliable heating and cooling across all seasons.
Installation is simplified through compatibility with MRCOOL® No-Vac® Quick Connect® line sets, which come factory-charged with R-454B refrigerant. This eliminates the need for vacuum pumps, refrigerant handling, or specialized HVAC tools, reducing labor time and installation risk while ensuring a clean, accurate setup.
For everyday control, the air handler works with most third-party smart thermostats, allowing homeowners to choose their preferred app-based, voice-activated, or automated control system. Optional TruInverter™ electric heat kits provide added heating support for cold climates or emergency backup.
Backed by a limited lifetime compressor warranty and a 10-year parts warranty, the MRCOOL® TruInverter™ 24K offers long-term reliability, flexible installation, and energy-saving performance.
Additional specifications
| UPC | 840433617198 |
|---|---|
| Series | TruInverter |
| Refrigerant charge (oz) | 3.52 |
| Airflow (CFM) | 850 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 5 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | DC |
| Blower motor HP | 1/2 |
| Blower speeds | 5 |
| Metering device | TXV |
| Max line set length (ft) | 100 |
| Drain connection (in) | 3/4 |
| Mount type | Multi-Position |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 10kW |
| Parts warranty (years) | 10 Year |
| Shipping W x H x D (in) | 22.75 x 52.5 x 26.33 |
| Shipping weight (lbs) | 162 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 57 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 21 x 46.5 x 21 |
|---|---|
| Weight | 126.8 lb |
| Color / Finish | Gunmetal |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
