MRCOOL

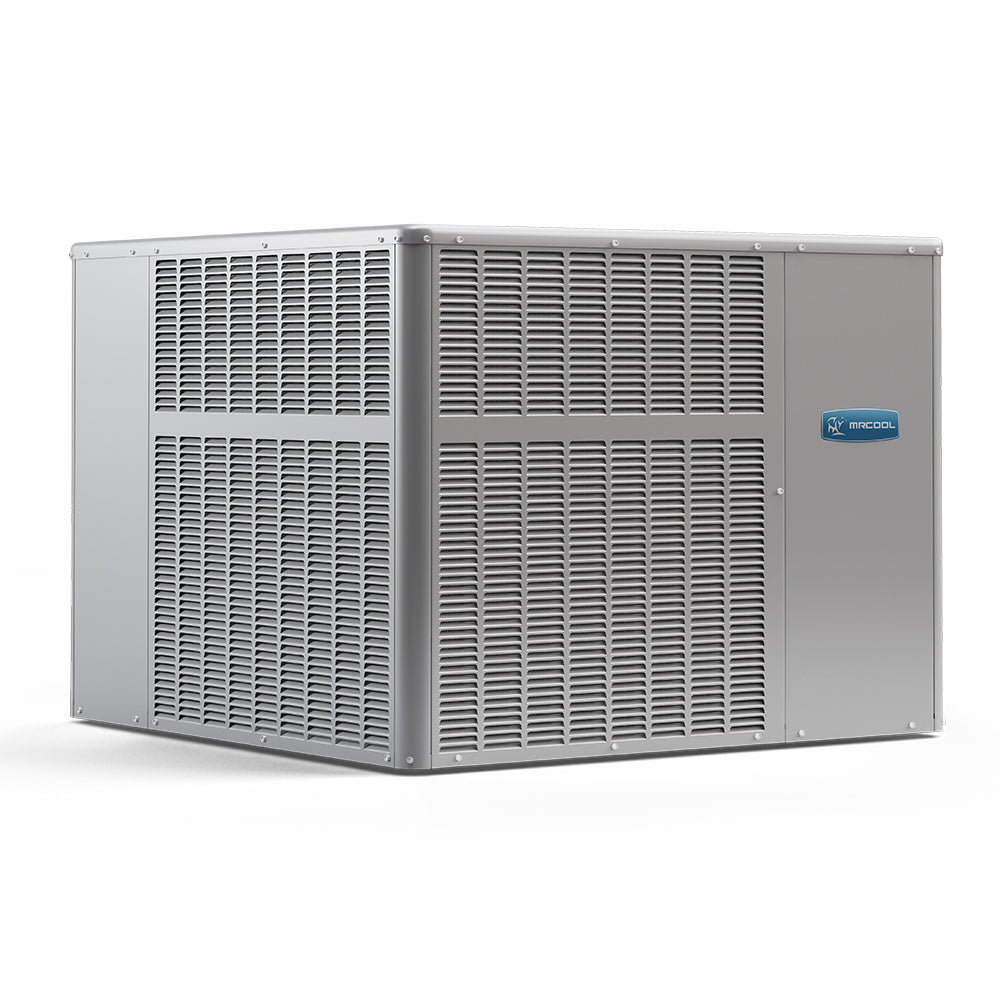

MRCOOL 2.5 Ton 30,000 BTU 14 SEER R-410A Multi-Postion Packaged Heat Pump
2.5 Ton | SEER2 13.4 | R-410A | 208-230V
- 28600 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Single compressor
- Uses R-410A refrigerant
Key Specifications
Product Overview
A MRCOOL packaged heat pump combines high performance cooling and powerful heating in one convenient, easy-to-install system. These units are competitively priced and operate at 14 SEER efficiency. A MRCOOL packaged heat pump will be a great solution for tough air comfort problems in a suburban home, commercial office space, condominium, seaside villa, or wherever you desire. MRCOOL packaged heat pumps combine superior product quality, energy efficiency, quiet operation, and financial value. The units come standard with a high performance compressor and eco-safe, chlorine-free R-410A refrigerant. This is truly an all-in-one packaged unit that will deliver energy efficient air comfort with minimal environmental impact.
Features
- Warranty is 10 years on all parts if registered, 5 years if not (no licensed tech required)
- 14 SEER efficiency
- Designed for easy and convenient installation
- Optional electric heat available
- R-410A environmentally friendly refrigerant
- Built in short cycle protection to protect the compressor
- One piece "no leak" top design
- Sloped drain for improved indoor air quality
- Louvered panel coil protection
- Insulation to minimize heat loss plus reduce sound
- Built in "quiet shift" operation during defrost on select models
- Efficient constant torque motor for wide airflow range
Additional specifications
| UPC | 810512031382 |
|---|---|
| Series | Signature Packaged Heat Pump |
| Refrigerant charge (oz) | 96 |
| Heating capacity (BTU/h) | 27000 |
| SEER | 14 |
| EER | 11 |
| Airflow (CFM) | 1050 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 21.9 |
| Max fuse / breaker (A) | 35 |
| Blower motor type | ECM |
| Blower motor HP | 1/3 |
| Blower speeds | Multi-speed |
| Metering device | TXV |
| Filter type | Replacable |
| Filter size | 14x20x1 |
| Max coverage area | 1250 |
| Min ambient heating (F) | 0 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kw, 7.5kw |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | No |
| Shipping W x H x D (in) | 48.75 x 42.50 x 48.00 |
| Freight class | 125 |
| Country of origin | USA |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Package Heat Pump |
|---|---|
| Capacity | 28600 BTU |
| Tonnage | 2.5 Ton |
| Compressor / Stages | Single |
| SEER2 | 13.4 |
| EER2 | 10.6 |
| HSPF2 | 6.7 |
| Sound Level | 78 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
Physical & Certifications
| Dimensions (W x H x D) | 47.66 x 40.89 x 47.66 |
|---|---|
| Weight | 379.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
