MRCOOL

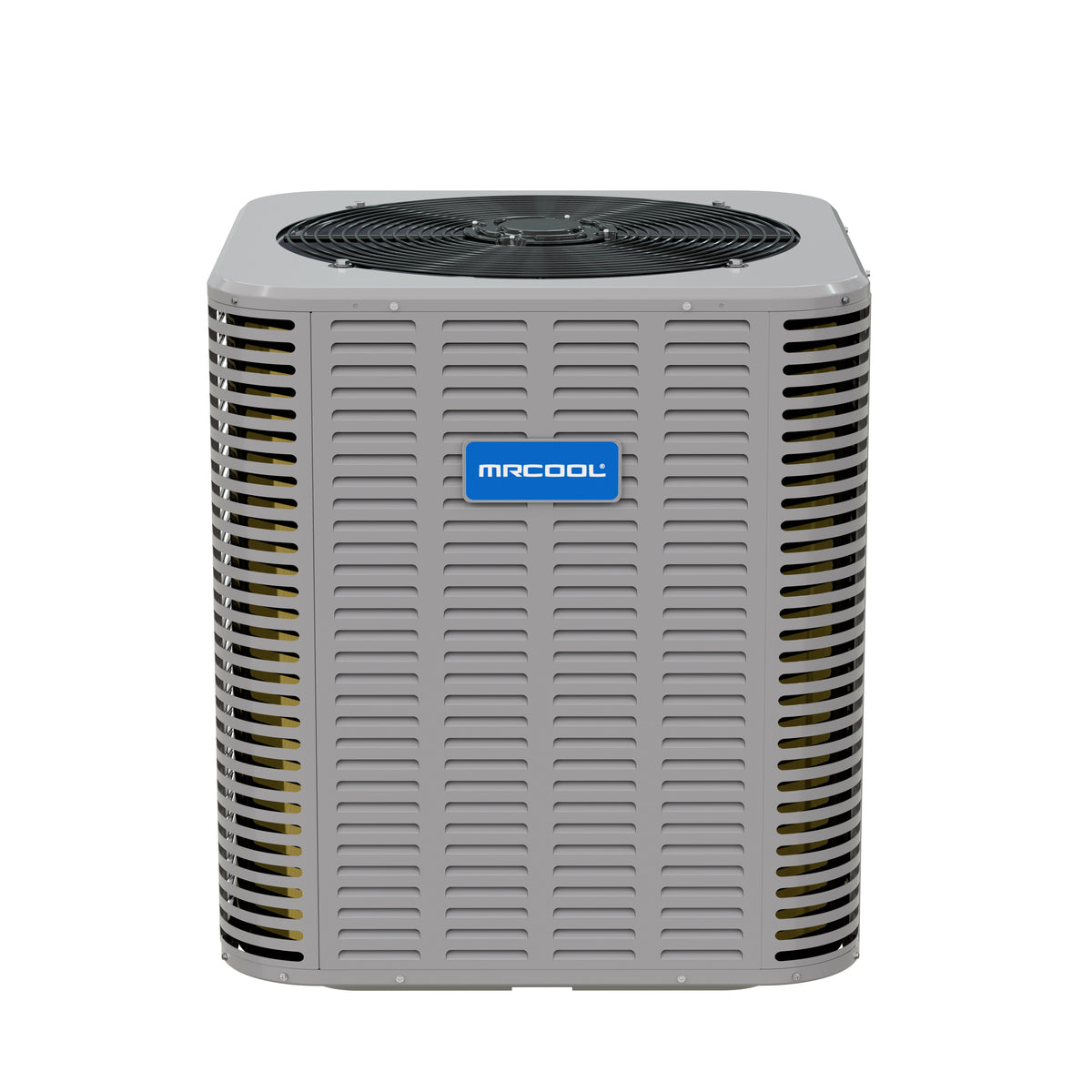

MRCOOL Signature 3 Ton up to 14.3 SEER2 36,000 BTU Split Air Conditioner
3 Ton | SEER2 14.3 | R-454B | 208/230V
- 33000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Signature Series 36k Cooling Only Condenser delivers efficient, reliable cooling designed to meet the demands of modern homeowners. With a 14.3 SEER2 and 11.7 EER2 rating, it offers strong energy savings without sacrificing comfort, making it an excellent solution for both system upgrades and new installations.
Factory pre-charged with R-454B refrigerant, this unit supports updated environmental regulations while maintaining the high-performance standards MRCOOL® is known for. The pre-charged design allows for quicker, simpler installation, helping save on time and labor.
At the heart of the system is a dependable scroll compressor built for consistent operation and long-term durability. Inner-groove copper tubing improves heat transfer, while integrated sensors monitor pressure and temperature to help protect the system from extreme conditions.
Designed with homeowners in mind, this unit operates at a quiet 63 decibels, comparable to a typical household appliance. A specially engineered sound-control top keeps operation discreet, even during high-demand periods. Meanwhile, a steel louver coil guard and wire fan discharge grille offer added protection to internal components.
Installation and maintenance are straightforward, with accessible service valves and a convenient gauge port. And MRCOOL®’s industry-leading standard 10-year limited parts warranty and limited lifetime compressor warranty, making the MRCOOL® Signature Series 36k Cooling Only Condenser a dependable, efficient choice for cooling comfort.
Additional specifications
| UPC | 840255595742 |
|---|---|
| Series | Signature Series Air Conditioner Condenser |
| Refrigerant charge (oz) | 98.1 |
| Airflow (CFM) | 2750 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 22.2 |
| Max fuse / breaker (A) | 30 |
| Inverter | No |
| Max line set length (ft) | 150 |
| Min ambient cooling (F) | 59 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 30.3 x 26.2 x 30.3 |
| Shipping weight (lbs) | 160 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System AC Condenser |
|---|---|
| Capacity | 33000 BTU |
| Tonnage | 3 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 25 x 29.14 |
|---|---|
| Weight | 152 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
