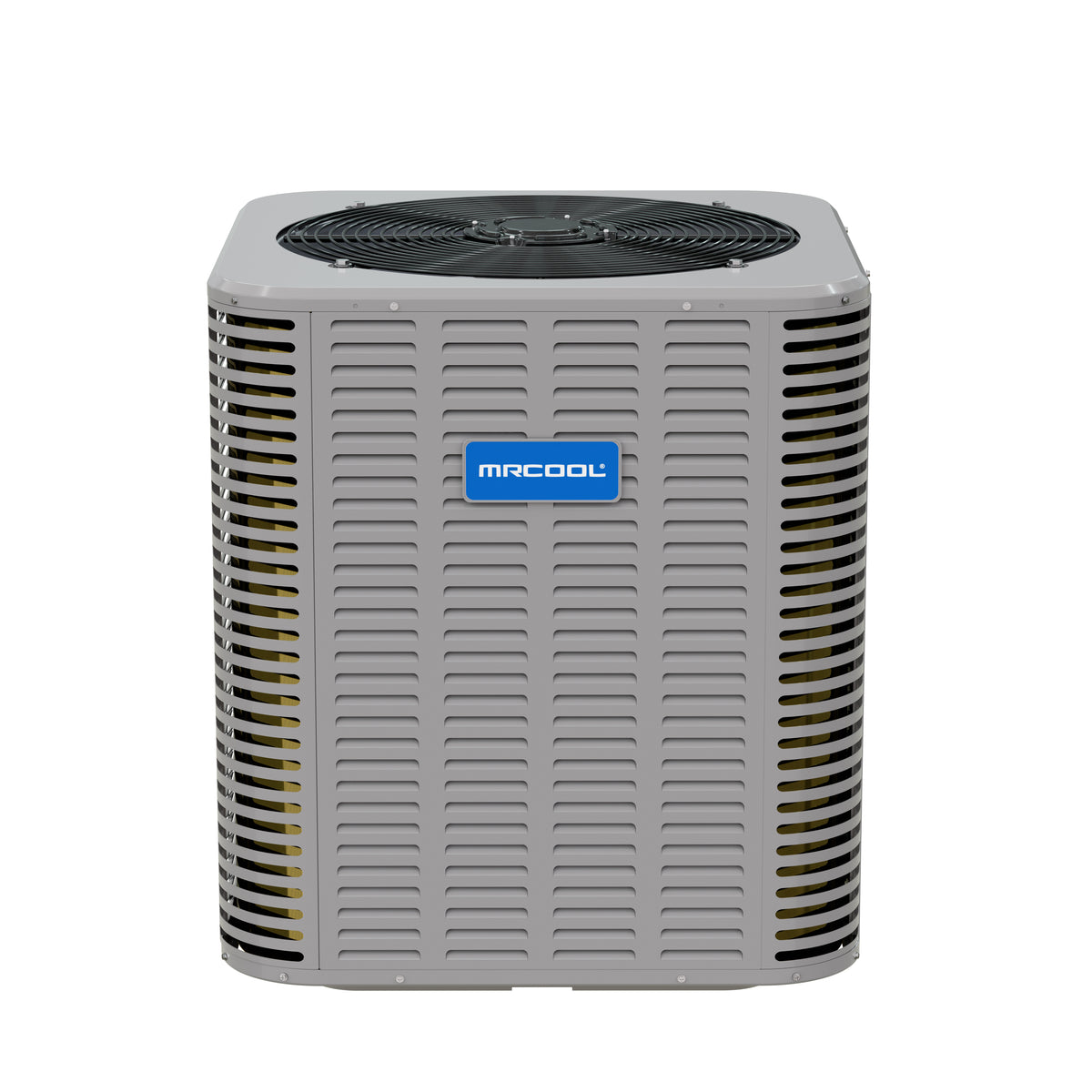

MRCOOL Signature 5 Ton up to 13.8 SEER2 60,000 BTU Split Air Conditioner
5 Ton | SEER2 13.8 | R-454B | 208/230V
- 55000 BTU cooling capacity
- Up to 13.8 SEER2 rated efficiency
- Scroll compressor
- Uses R-454B refrigerant
Key Specifications
Product Overview
The MRCOOL® Signature Series 60k Cooling Only Condenser is a high-efficiency system designed to deliver reliable, long-lasting comfort. With a 13.8 SEER2 and 11.2 EER2 rating, this unit offers strong cooling performance while helping reduce energy usage.
This unit comes pre-charged with R-454B refrigerant, a modern, low-GWP solution that aligns with current environmental standards while maintaining excellent cooling performance. This eco-conscious refrigerant helps reduce the system’s environmental footprint without sacrificing power or efficiency.
At the heart of the system lies a durable scroll compressor, specifically engineered to provide consistent, reliable performance under a variety of operating conditions. Meanwhile, the use of inner-groove copper tubing increases surface area and enhances heat transfer for improved energy efficiency and faster temperature regulation.
Despite its strong output, the unit maintains a quiet operational level of just 65 decibels, comparable to the hum of a standard dishwasher. A sound-dampening top is integrated into the design to further reduce noise, making the system ideal for homes in noise-sensitive areas. To protect internal components from debris, weather, and potential impacts, the unit is equipped with a steel louver coil guard and a wire fan discharge grille, adding to its overall durability.
For additional peace of mind, the system includes an industry-leading 10-year limited parts warranty and a limited lifetime compressor warranty, ensuring long-term support and reliability for homeowners.
The MRCOOL® Signature Series 60k Cooling Only Condenser delivers reliable cooling, long-term durability, and quiet operation in a compact, installer-friendly design.
Additional specifications
| UPC | 840255595766 |
|---|---|
| Series | Signature Series Air Conditioner Condenser |
| Refrigerant charge (oz) | 121.7 |
| Airflow (CFM) | 4000 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 37 |
| Max fuse / breaker (A) | 60 |
| Inverter | No |
| Max line set length (ft) | 150 |
| Min ambient cooling (F) | 59 |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 30.3 x 34.8 x 30.3 |
| Shipping weight (lbs) | 216 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System AC Condenser |
|---|---|
| Capacity | 55000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | Scroll |
| SEER2 | 13.8 |
| EER2 | 11.2 |
| Sound Level | 65 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 32.875 x 29.14 |
|---|---|
| Weight | 206 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
