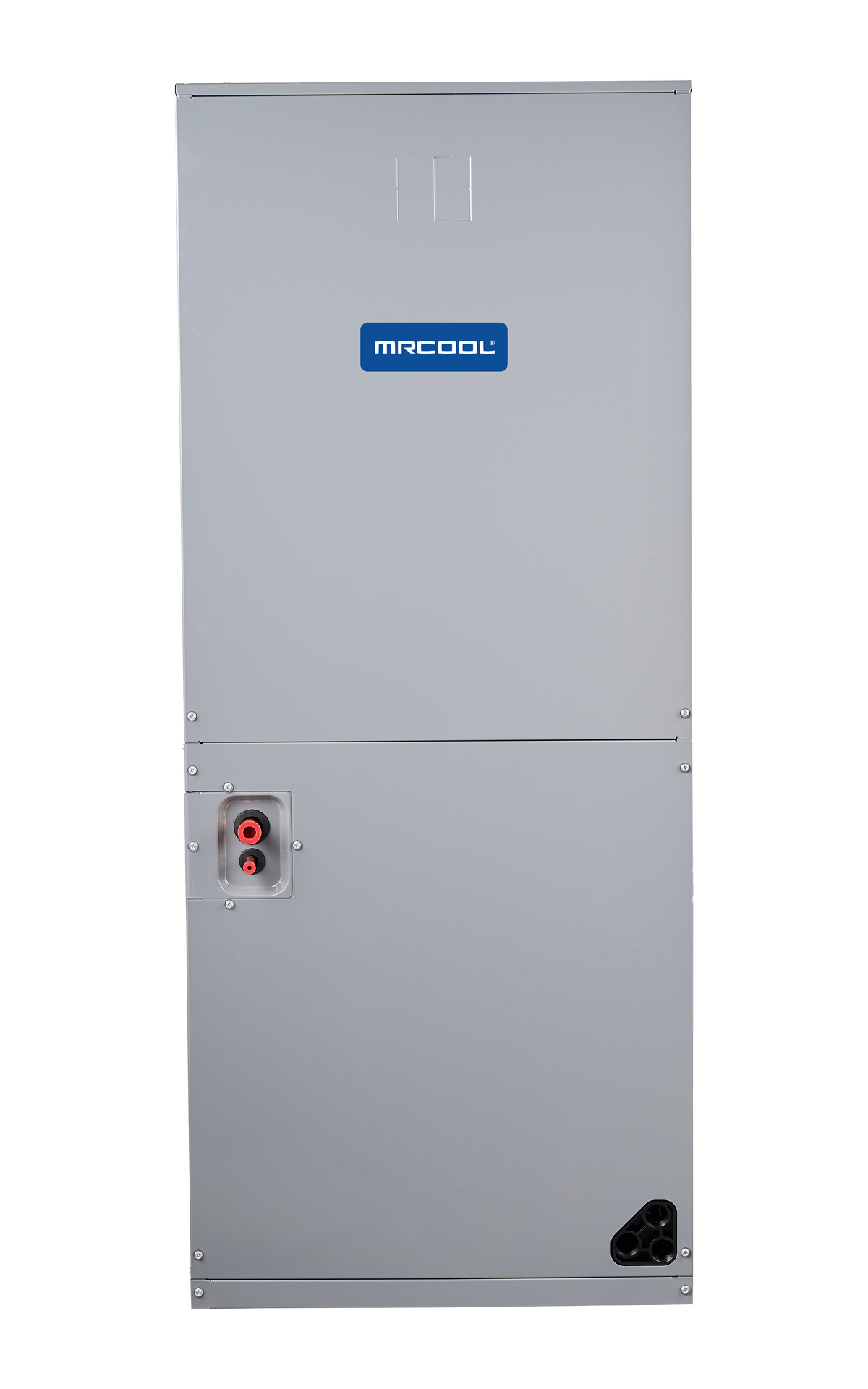

MRCOOL Signature 24,000 BTU Split System Air Handler Multi-Position
2 Ton | R-454B | 208/230V
- 2 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® Signature Series 24k Multi-Position Air Handler is built for reliable, year-round performance and is now enhanced with R-454B refrigerant for improved energy efficiency and reduced environmental impact. Designed for versatility, it can be installed in upflow, downflow, or horizontal configurations, making it ideal for tight spaces like closets, attics, or crawl spaces.
Its slim, compact design allows for seamless integration in space-constrained areas, while still delivering full-capacity heating and cooling when paired with a compatible heat pump or condenser. The galvanized steel cabinet ensures durability.
Inside, copper “A” coils with enhanced aluminum fins offer excellent heat transfer and humidity control, while thermal insulation minimizes energy loss and reduces condensation. This translates to lower utility bills and more effective indoor comfort.
Installation is quick and straightforward, helping reduce labor time and costs. An air filter rack makes change-outs a breeze, and an optional electric heat kit extends heating performance in colder climates.
The system is smart home compatible, working with most third-party thermostats to give homeowners flexible control without locking them into a proprietary platform.
Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 24k Multi-Position Air Handler offers peace of mind along with powerful performance.
With its durable build, energy-saving features, and flexible installation options, this air handler is the ideal solution for dependable, efficient home comfort.
Additional specifications
| UPC | 840255595858 |
|---|---|
| Series | Signature Series Multi-Position Air Handler |
| Configuration | Multi-Position |
| Airflow (CFM) | 761 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 2.4 |
| Max fuse / breaker (A) | 3 |
| Blower motor type | PSC |
| Blower motor HP | 1/3 |
| Blower speeds | 3 |
| Metering device | Orifice |
| Drain connection (in) | 3/4 |
| Filter type | Replaceable |
| Filter size | 18 * 21 * 1 |
| Mount type | Multi-Position |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 5kW, 7.5kW, 10kW |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Compressor warranty (yrs) | Limited Lifetime |
| Shipping W x H x D (in) | 22.83 x 47.625 x 25.6 |
| Shipping weight (lbs) | 141 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Air Handler |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 53 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 19.625 x 45.75 x 22 |
|---|---|
| Weight | 128 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
