MRCOOL

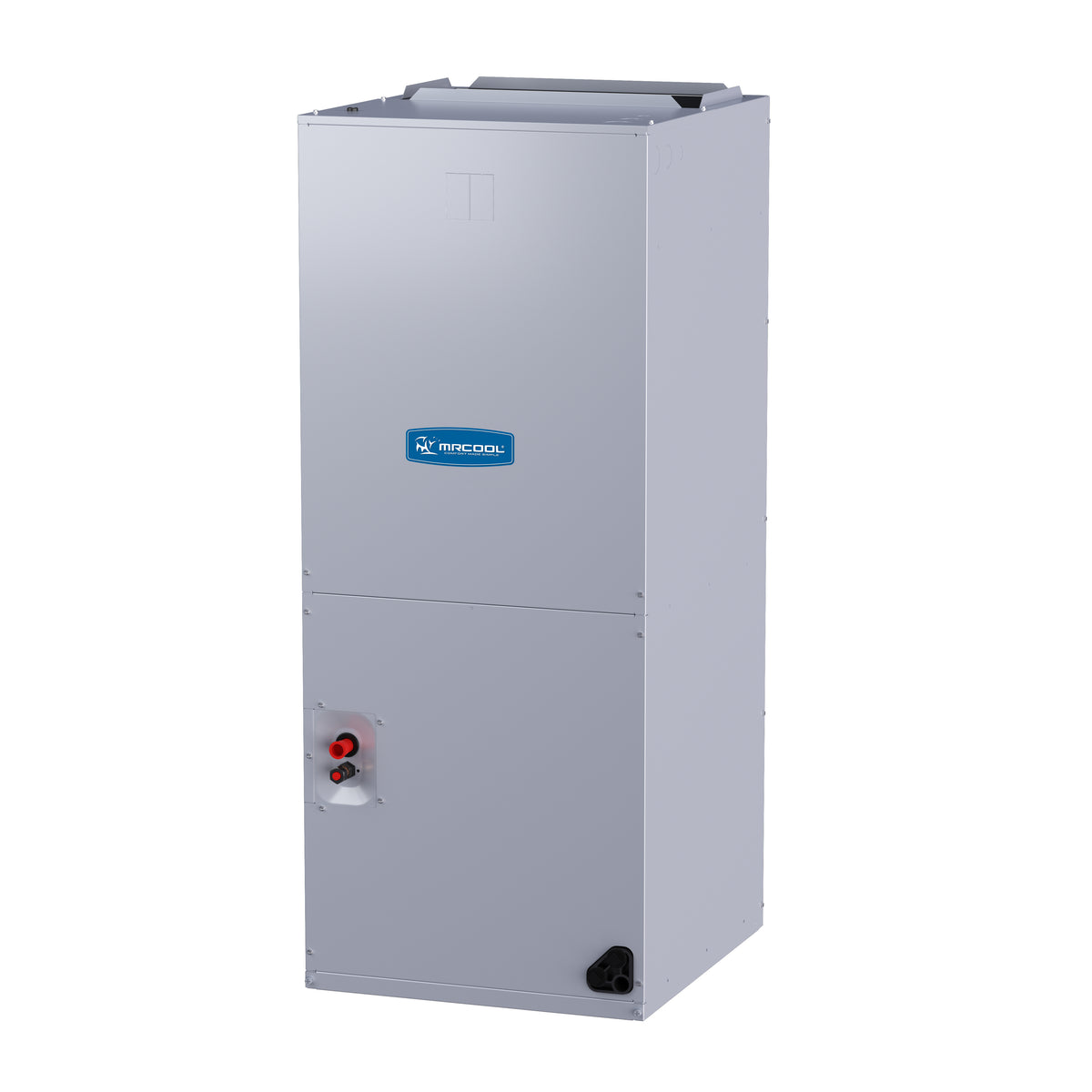

MRCOOL PRODIRECT Series 3 Ton BTU PSC Air Handler
R410a | 208/230V
- 36000 BTU cooling capacity
- Uses R410a refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The 3 Ton PRODIRECT™ Series PSC Air Handler offers exceptional reliability and efficiency for your home’s HVAC needs. Designed for smooth compatibility with both cooling and heat pump systems, it adapts easily to various home configurations. With a SEER2 rating of 15.2, this model ensures strong energy efficiency. Constructed with all-aluminum tubes and fins, the air handler is built for durability and corrosion resistance, supporting long-lasting performance. The 36K PRODIRECT™ Air Handler features a factory-sealed cabinet that minimizes air leakage to 2% or less at 1.0 inch water column pressure, enhancing energy efficiency. Its versatile design allows for multi-positional installation, easily accommodating different setups. Both horizontal and vertical condensate drain pans are included, simplifying installation in various spaces. Maintenance is hassle-free due to the slide-out blower and coil components. You can customize the heating capacity with optional heat kits ranging from 5 to 20 kW, giving you greater control over your comfort levels. This unit meets high industry standards, holding both AHRI certification and ETL-listed to ensure quality and reliability. Backed by MRCOOL®’s standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration., the 3 Ton PRODIRECT™ Series PSC Air Handler is an excellent choice for year-round home comfort.
Features
- Multiposition installation
- Blower and coil easy slide out for ease of maintenance
- Evaporator Coil Tube Material: Aluminum
- Evaporator Coil Tube Size(in.): 9/32
- AHRI Listed & ETL Certified.
Additional specifications
| UPC | 840255585736 |
|---|---|
| Series | PRODIRECT Series PSC Air Handler |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3.3 |
| Max fuse / breaker (A) | 15 |
| Blower motor type | PSC |
| Blower motor HP | 1/2 |
| Aux heater included | N |
| Aux heater available | Y |
| Aux heater sizes (kW) | 5,7.5,10,15,20 |
Documents
Technical Specifications
Performance
| System Type | Mini Split Air Handler |
|---|---|
| Capacity | 36000 BTU |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410a |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 19 5/8 x 46 1/2 x 21 5/8 |
|---|---|
| Weight | 128 lb |
| Color / Finish | Silver |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
