MRCOOL

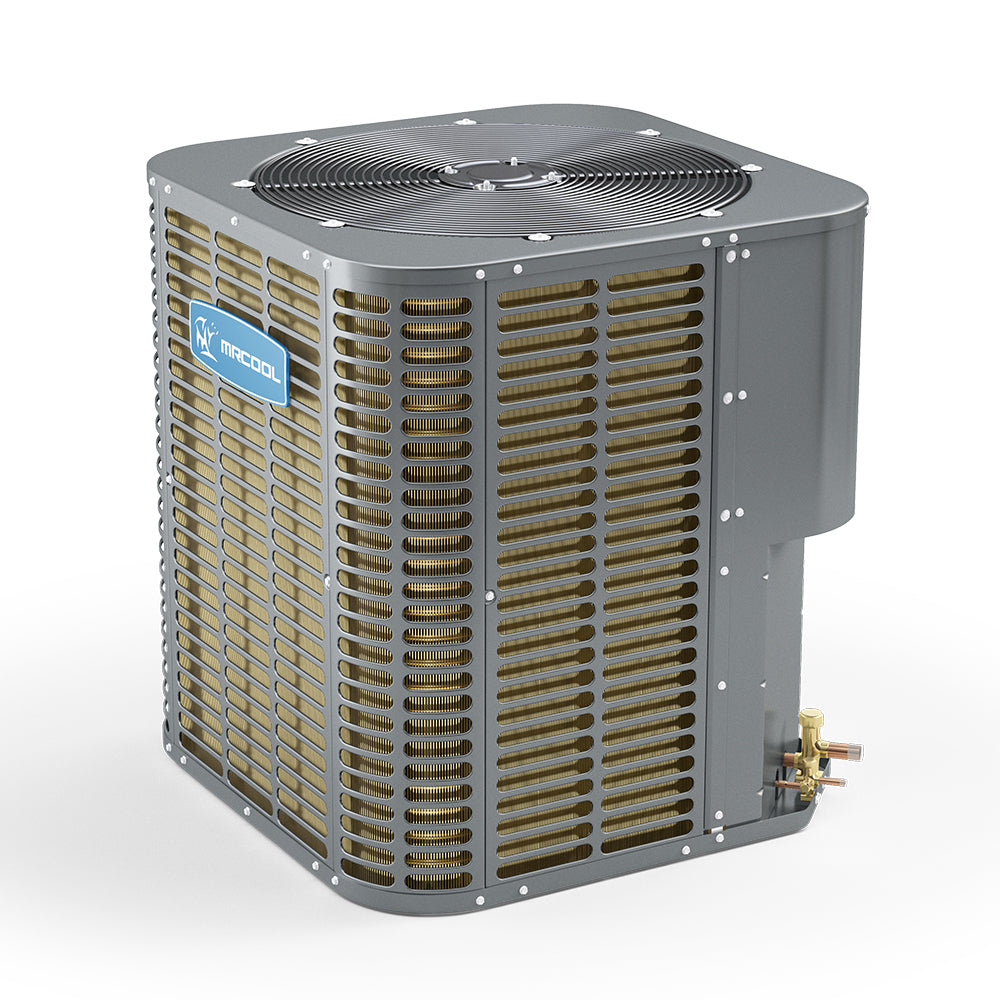

MRCOOL ProDirect 5 Ton up to 15 SEER2 Split System A/C Condenser
5 Ton | SEER2 13.8 | 230V
- 56000 BTU cooling capacity
- Up to 13.8 SEER2 rated efficiency
- scroll compressor
- Runs on 230V power
Key Specifications
Product Overview
Keeping your home at a comfortable temperature is no trouble at all with the cooling power of this ProDirect 5 Ton 15 SEER Split System A/C Condenser, even in the blazing temperatures of summer. This system’s scroll compressor works hard to help the R-410A refrigerant release the heat it’s absorbed from your home. The speed and volume of the refrigerant is also managed by the piston flow control device, which aids in boosting efficiency. This system takes comfort seriously, which is why it uses a galvanized steel cabinet to protect itself from damage, as well as a Gold Fin® coating to stop water from sticking to the coils, which ensures that this system won’t rust or corrode. The extra layer of insulation that this environmentally-friendly, non-toxic coating offers the system lets you enjoy better efficiency overall. Make sure to register your ETL listed, AHRI rated unit online to get your well-deserved warranty coverage. The MRCOOL ProDirect 5 Ton split system A/C condenser is the right choice for cost-effective comfort for many years to come.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Additional specifications
| UPC | 840255553810 |
|---|---|
| Series | PRODIRECT AC Condenser |
| Refrigerant charge (oz) | 185.18 |
| Airflow (CFM) | 3820 |
| Cycle (Hz) | 60 |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 29.90 x 34.40 x 29.90 |
| Shipping weight (lbs) | 216 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System AC Condensers |
|---|---|
| Capacity | 56000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | scroll |
| SEER2 | 13.8 |
| EER2 | 11.2 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 32.88 x 29.14 |
|---|---|
| Weight | 207.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
