MRCOOL

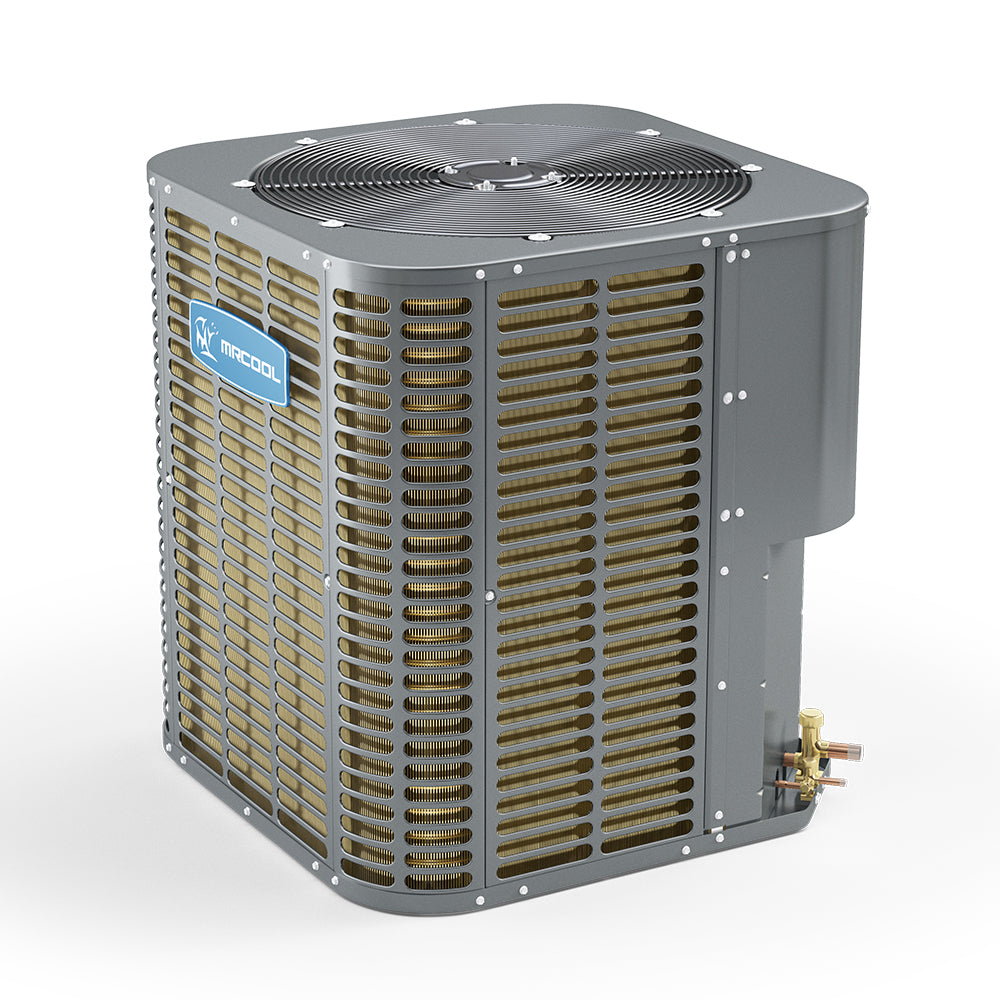

MRCOOL ProDirect 3.5 Ton up to 15 SEER2 Split System A/C Condenser
3.5 Ton | SEER2 14.3 | 230V
- 39000 BTU cooling capacity
- Up to 14.3 SEER2 rated efficiency
- scroll compressor
- Runs on 230V power
Key Specifications
Product Overview
You’re not going to believe how much better your house feels after you scrap your old cooling unit and replace it with the ProDirect 3.5 Ton 15 SEER Split System A/C Condenser. The scroll compressor in this unit is the key to making your home feel comfortable throughout the summer, because it compresses the R-410A refrigerant and releases the absorbed heat so it’s ready to remove more heat from your home. This efficient unit is even more cost-effective with the piston flow control device. You can keep comfortable despite any outdoor conditions you put your condenser through! This system is safeguarded by a galvanized steel cabinet and a Gold Fin® coil coating. The coil coating, which is non-toxic and environmentally friendly, can repel water from the system’s fins, ensuring that the unit will be without rust and corrosion. It also offers extra insulation. When this unit is installed, you can register it online to benefit from a superior warranty. When you need a new unit to bring you comfort, choose the ETL listed and AHRI certified MRCOOL ProDirect 3.5 ton split system A/C condenser.
Features
- Equipment should be installed by a qualified professional
- 10 Year Registered Warranty
- 15 SEER
- R-410A environmentally friendly refrigerant
- AHRI Certified & ETL listed
- Pressure and Temperature protection sensors help prevent damage
- A shape coils, constructed with copper tubing and enhanced aluminum fins.
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Additional specifications
| UPC | 840255553797 |
|---|---|
| Series | PRODIRECT AC Condenser |
| Refrigerant charge (oz) | 137.56 |
| Airflow (CFM) | 3820 |
| Cycle (Hz) | 60 |
| AHRI certified | Yes |
| ETL listed | Yes |
| Shipping W x H x D (in) | 29.90 x 34.40 x 29.90 |
| Shipping weight (lbs) | 196 |
Documents
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System AC Condensers |
|---|---|
| Capacity | 39000 BTU |
| Tonnage | 3.5 Ton |
| Compressor / Stages | scroll |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| Sound Level | 63 dBA |
Electrical & Fuel
| Voltage | 230V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29.14 x 32.88 x 29.14 |
|---|---|
| Weight | 187.00 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
