MRCOOL

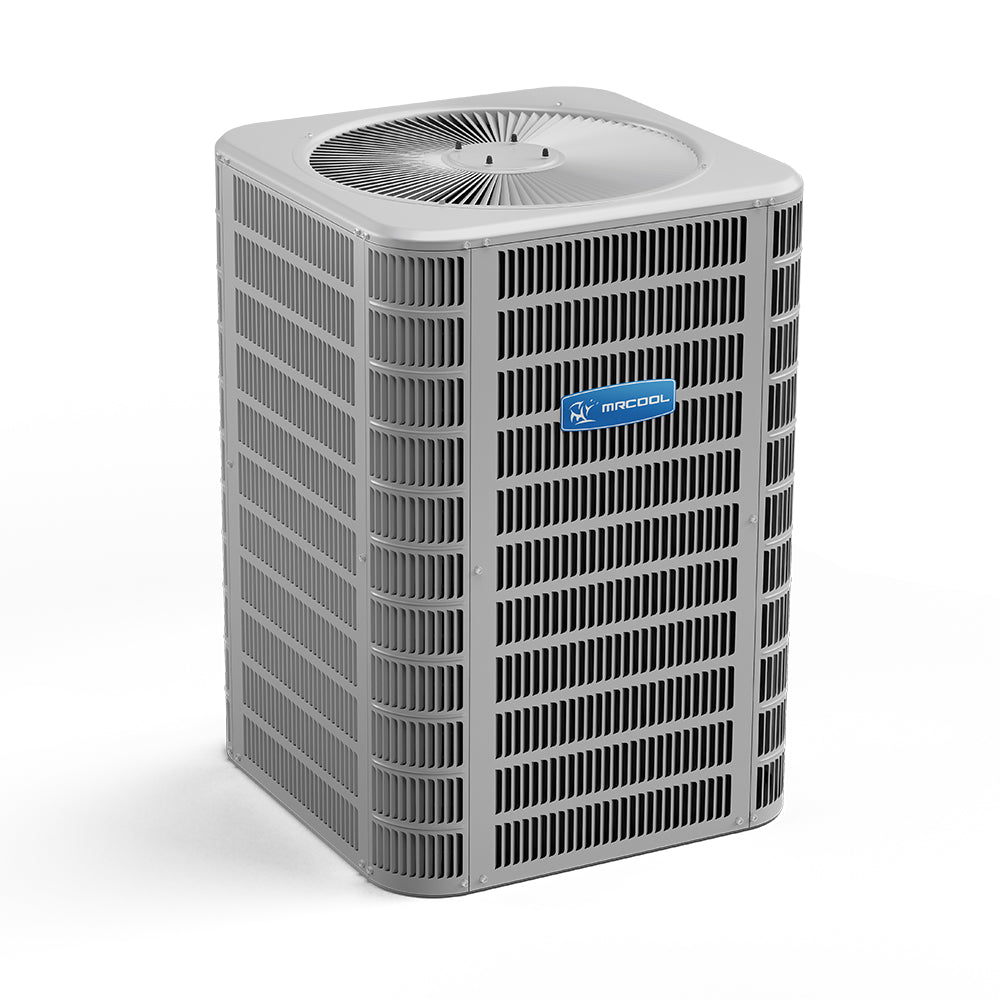

MRCOOL 3 Ton up to 16 SEER Split System A/C Condenser
3 Ton | R-410A | 208-230V
- 33000-34000 BTU cooling capacity
- Single compressor
- Uses R-410A refrigerant
- Runs on 208-230V power
Key Specifications
Product Overview
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 3 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Features
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set
- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- All units ETL and ETLC approved and AHRI Certified
- Internally protected against high temperature motor overload conditions
Additional specifications
| UPC | 810512030965 |
|---|---|
| Series | Signature Split Air Conditioner |
| Refrigerant charge (oz) | 113 |
| SEER | up to 16 |
| EER | 12.2 |
| Airflow (CFM) | 1110-1275 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 18 |
| Max fuse / breaker (A) | 30 |
| Inverter | No |
| Metering device | TXV |
| Line set included (ft) | 15, 25, 35, 50 |
| Max line set length (ft) | 50 |
| Line set fitting | Sweat |
| Max coverage area | 1500 |
| Min ambient heating (F) | -20 |
| Aux heater included | No |
| Aux heater available | Yes |
| Aux heater sizes (kW) | 7.5kw, 10kw, 15kw |
| AHRI certified | Yes |
| ENERGY STAR certified | No |
| UL listed | No |
| ETL listed | Yes |
| Parts warranty (years) | 5 Year Parts Warranty |
| Shipping W x H x D (in) | 30.50 x 29.50 x 31.00 |
| Country of origin | Mexico |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Split System AC Condensers |
|---|---|
| Capacity | 33000-34000 BTU |
| Tonnage | 3 Ton |
| Compressor / Stages | Single |
| Sound Level | 76 dBA |
Electrical & Fuel
| Voltage | 208-230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-410A |
| Connection Size | Liquid 3/8" / Suction 7/8" |
Physical & Certifications
| Dimensions (W x H x D) | 28.25 x 28.25 x 37.00 |
|---|---|
| Weight | 181.00 lb |
| Color / Finish | Gray |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
