MRCOOL

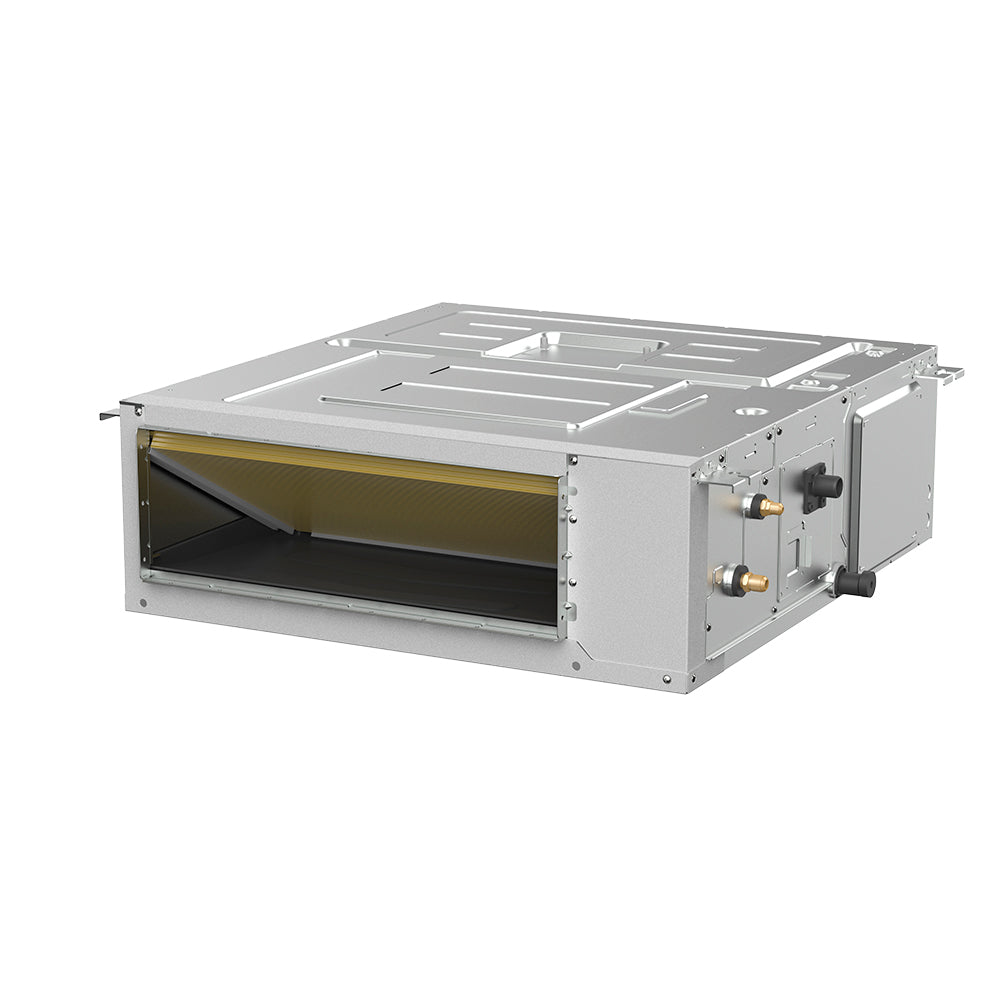

MRCOOL Olympus 24,000 BTU 2 Ton Ducted Mini-Split Air Handler - 230V/60Hz
2 Ton | R-454B | 208/230V
- 2 Ton capacity
- Uses R-454B refrigerant
- Runs on 208/230V power
Key Specifications
Product Overview
The MRCOOL® OLYMPUS 24K DUCT Air Handler offers powerful and efficient heating and cooling for areas up to 1,050 square feet, making it an excellent choice for larger bedrooms, home offices, and compact commercial spaces. Its low-profile ceiling-mounted design allows for a flush installation that blends effortlessly into any space, maintaining a clean and contemporary look.
Ideal for both residential and light commercial use, this air handler is engineered for flexibility and style—delivering high performance while preserving valuable floor and wall space. Whether you're outfitting a modern home or a small office, it’s designed to meet your comfort needs without disrupting your room’s layout or design.
For convenient operation, the unit includes both a wired wall controller and a handheld remote, offering flexible options for temperature control whether you're working, relaxing, or entertaining. No need to interrupt your day to adjust the settings—just set your ideal climate with ease.
Environmentally responsible, the system uses R-454B refrigerant, which offers strong performance with a significantly lower global warming potential. This helps reduce your carbon footprint while keeping energy efficiency and indoor comfort at the forefront.
The MRCOOL® OLYMPUS 24K DUCT Air Handler is supported by 7-year compressor coverage and a 5-year parts warranty, providing long-term reliability and peace of mind. For those seeking an energy-efficient, discreet, and modern comfort solution, this system delivers performance without compromise.
Additional specifications
| UPC | 840255587693 |
|---|---|
| Series | Olympus Duct |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Blower speeds | 853.5/706.3/618/500.3/500.3 |
| Line set fitting | Flare |
| Mount type | Ducted |
| Max coverage area | Up to 1050 |
| Sound level low (dBA) | 29.5 |
| Sound level high (dBA) | 40 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | No |
| Remote included | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5-Year |
| Shipping weight (lbs) | 91.93 |
Documents
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini-Split |
|---|---|
| Tonnage | 2 Ton |
| Sound Level | 40/40/37/35/29.5 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Connection Size | Liquid 3/8" / Suction 5/8" |
Physical & Certifications
| Dimensions (W x H x D) | 39.37 x 9.65 x 29.53 |
|---|---|
| Weight | 80.47 lb |
| Color / Finish | Metal |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
