MRCOOL

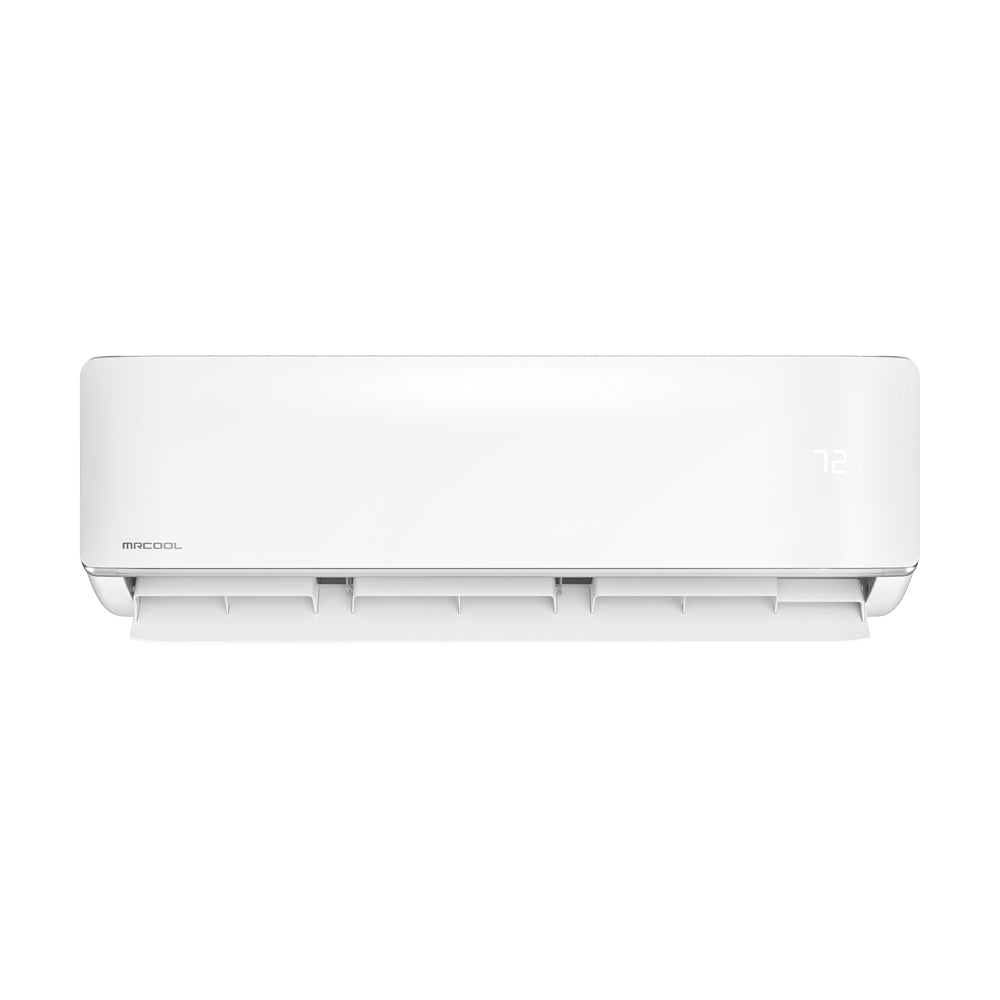

MRCOOL® 9k DIY 5th Generation Mini-split Air Handler 115v
0.75 Ton | 115V
- 0.75 Ton capacity
- Runs on 115V power
Key Specifications
Product Overview
Check out the new 5th Generation MRCOOL® DIY® 9k BTU Ductless Heat Pump Single Zone Mini-Split Air Handler. Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 400 sq. ft.
The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife.
Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions.
Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me® function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room. Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation.
Backed by an industry-leading warranty that includes 7-year compressor and 5-year parts coverage and is eligible for the MRCOOL® Care Program—the 5th Generation MRCOOL® DIY® 9k BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Additional specifications
| UPC | 840255586993 |
|---|---|
| Series | DIY 5th gen Single-Zone Mini-splits |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 3 |
| Max fuse / breaker (A) | 15 |
| Filter type | Reusable |
| Mount type | Wall |
| Max coverage area | 400 sqft |
| Sound level low (dBA) | 18 |
| Sound level high (dBA) | 43 |
| Aux heater included | No |
| Aux heater available | No |
| Wi-Fi capable | Yes |
| Remote included | Yes |
| AHRI certified | Yes |
| ENERGY STAR certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 5 |
| Compressor warranty (yrs) | 7 |
| Shipping W x H x D (in) | 36.02 x 14.37 x 16.34 |
| Shipping weight (lbs) | 35.49 |
Documents
- Installation manual (PDF)
- Owner's manual (PDF)
- Service manual (PDF)
- Remote manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Mini Split Air Handler |
|---|---|
| Tonnage | 0.75 Ton |
| Sound Level | 18-43 dBA |
Electrical & Fuel
| Voltage | 115V |
|---|---|
| Phase | Single Phase |
| Connection Size | Liquid 1/4" / Suction 3/8" |
Physical & Certifications
| Dimensions (W x H x D) | 31.57 x 11.69 x 7.44 |
|---|---|
| Weight | 24.91 lb |
| Color / Finish | White |
Shipping & Delivery
Installation video
Published by MRCOOL. Watch the full walkthrough before you start, and follow the installation manual for this model — the video is a guide, not a substitute for it.
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
