MRCOOL

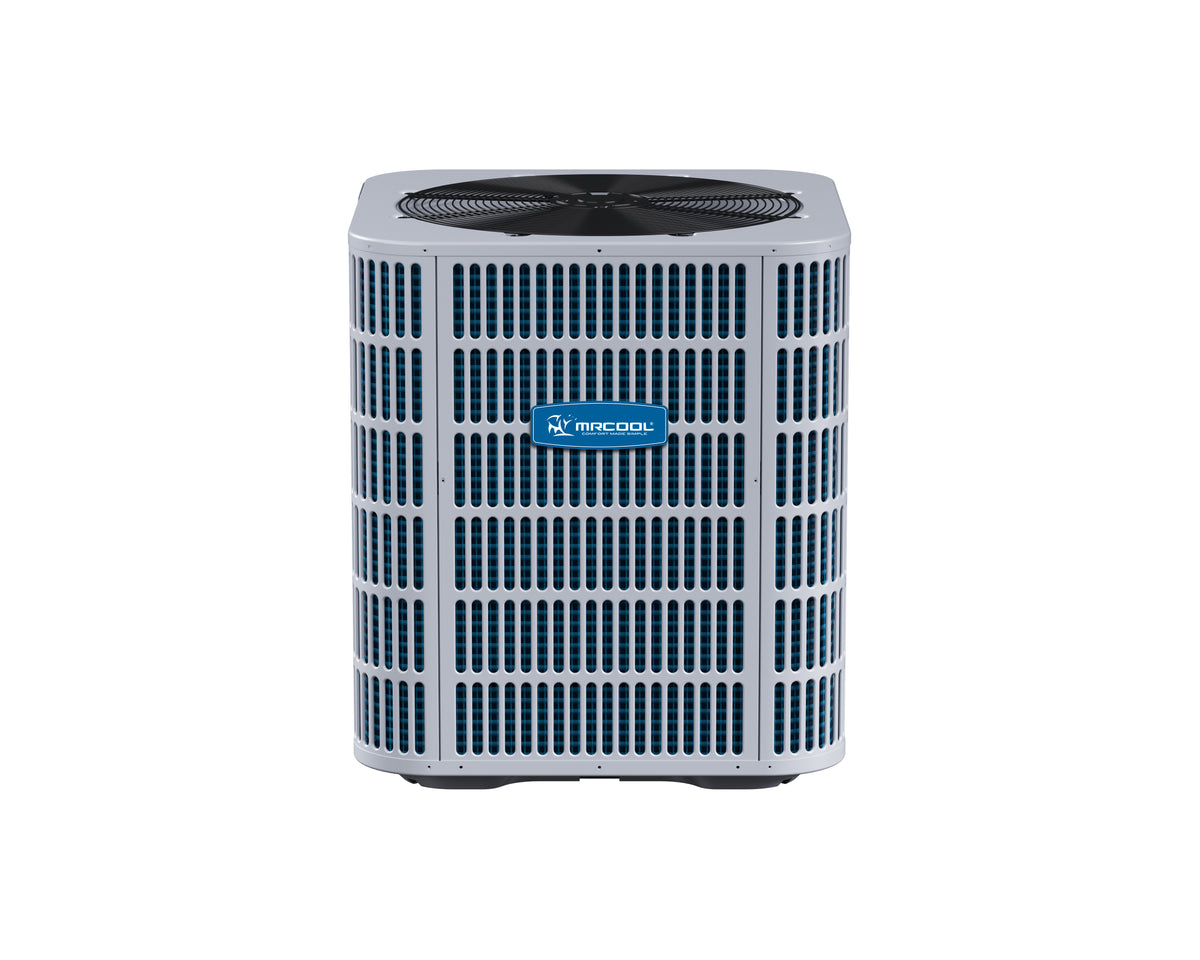

MRCOOL 5 Ton 13.4 SEER2 PRODIRECT Series Air Conditioner
SEER2 13.4 | R410A | 208/230V
- 60000 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
Elevate your home cooling experience with the 5 Ton PRODIRECT™ Series Air Conditioner, designed for exceptional comfort. This system utilizes R410A, a chlorine-free refrigerant, which enhances cooling performance while achieving a SEER2 rating of up to 13.4, effectively balancing comfort and energy efficiency. The condenser features inner-groove copper tubing and aluminum fins, making maintenance streamlined with easily accessible gauge ports and service valves that have sweat connections. You can also add an optional drier filter for further customization. Operating at just 81 decibels, similar to the hum of a vacuum, this 60K PRODIRECT™ Air Conditioner allows for a quiet indoor atmosphere. Its wire fan discharge grille, steel louver coil guard, and high-pressure switch provide added durability to withstand wear and tear. Moreover, its compact design simplifies both installation and transportation. This model is both AHRI-certified and ETL-listed, ensuring superior performance and reliability. When you choose the 5 Ton PRODIRECT™ Series Air Conditioner, you benefit from MRCOOL®’s commitment to lasting comfort. The unit is protected by a standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration. With MRCOOL®, you can enjoy a dependable cooling experience designed for years of reliable performance and peace of mind.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585576 |
|---|---|
| Series | PRODIRECT Series 13 SEER2 Air Conditioner |
| Refrigerant charge (oz) | 131 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 38.6 |
| Max fuse / breaker (A) | 60 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 60000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 13.4 |
| Sound Level | 81 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 11/8" |
Physical & Certifications
| Dimensions (W x H x D) | 29 1/8 x 33 3/16 x 29 1/8 |
|---|---|
| Weight | 200 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
