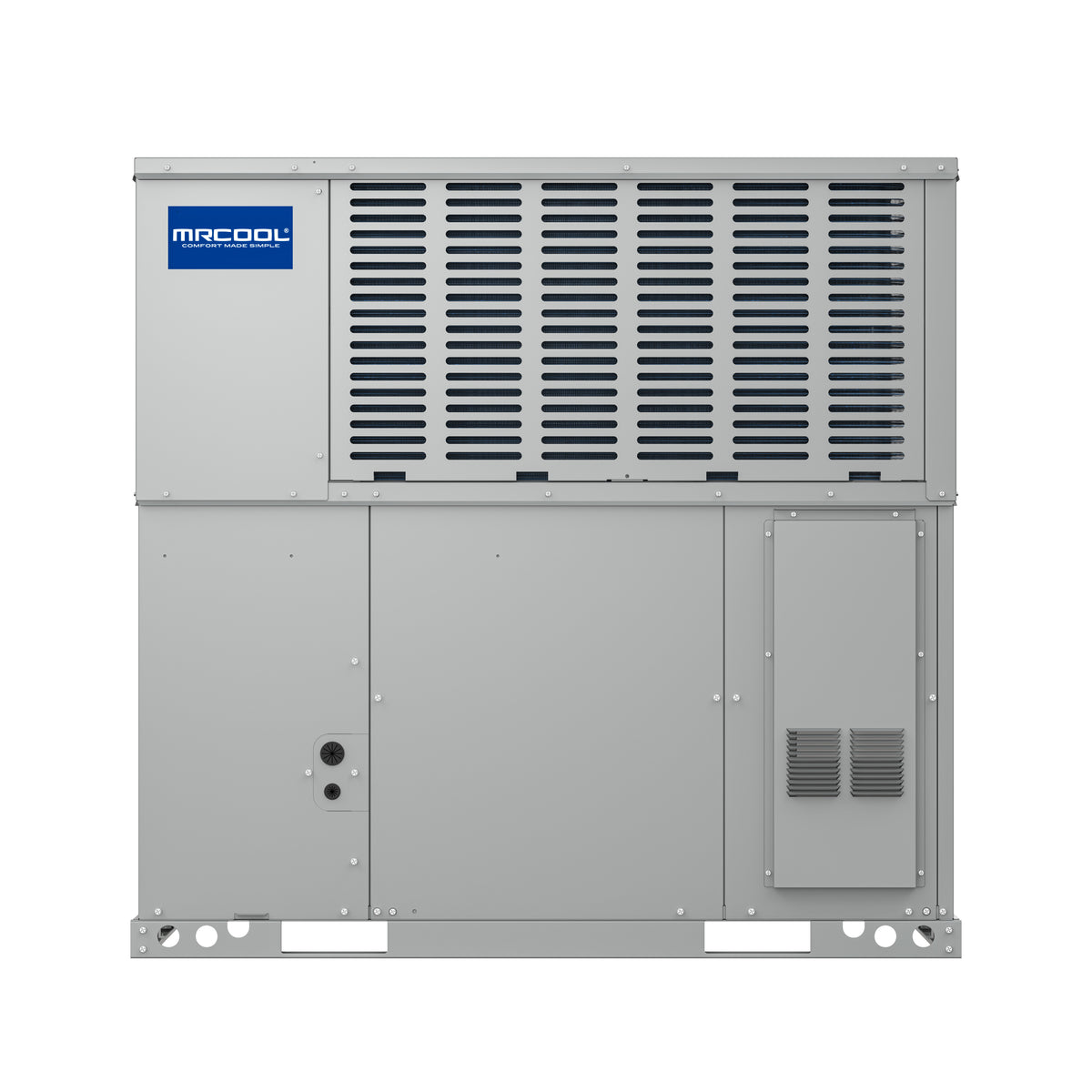

MRCOOL 5 Ton 110K BTU Downflow/Horizontal VersaPro® Packaged A/C & Gas - R454B
5 Ton | SEER2 13.4 | R-454B | 208/230V
- 57000 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- 81 AFUE heating efficiency
- 1 compressor
Key Specifications
Product Overview
The MRCOOL® VersaPro® Series 60K 110,000 BTU Gas Package Unit is a complete HVAC solution designed to deliver dependable heating and cooling in a single, efficient system. By integrating a 13.4 SEER2 air conditioner with an 81% AFUE gas furnace, this hybrid unit ensures powerful cooling in the summer and steady, reliable heat in the winter. It’s an ideal choice for homeowners seeking a long-term upgrade that balances performance, efficiency, and cost savings.
This model runs on R-454B refrigerant, an advanced low-GWP formula that significantly reduces environmental impact compared to older refrigerants, while still delivering exceptional temperature control year-round.
Built for durability, the power-painted galvanized steel cabinet offers protection against corrosion, harsh weather, and daily wear. The horizontal discharge design promotes quieter operation, making it perfect for residential settings. Inside, aluminum tubing paired with microchannel coils improves heat transfer, resists corrosion, and helps lower maintenance needs.
The VersaPro® 60K 110,000 BTU high-efficiency compressor works in tandem with an ECM blower motor to deliver consistent airflow while reducing energy use. Integrated safety features monitor pressure levels and coil temperature, ensuring reliable operation even during fluctuating temperatures.
Its compact footprint and ability to support both horizontal and downflow installations allow for flexible placement in tight spaces. A built-in LP conversion kit makes switching to propane quick and simple.
Backed by a 10-year limited parts warranty and a lifetime heat exchanger warranty, the MRCOOL® VersaPro® 60K 110,000 BTU is more than just an HVAC system; it's a smart investment in comfort, energy efficiency, and long-lasting performance.
Additional specifications
| UPC | 840255588768 |
|---|---|
| Series | VersaPro® R-454B Package Gas |
| Refrigerant charge (oz) | 60 |
| Input (BTU/h) | 110,000 |
| Output (BTU/h) | 88,000 |
| Airflow (CFM) | 1800 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 41.4 |
| Max fuse / breaker (A) | 60 |
| Inverter | No |
| Blower motor type | ECM |
| Blower motor HP | 3/4 |
| Blower speeds | 4 |
| Metering device | Piston |
| Drain connection (in) | 3/4 |
| Gas connection (in) | 1/2 |
| Min ambient cooling (F) | 64.4 |
| AHRI certified | Yes |
| UL listed | Yes |
| ETL listed | Yes |
| Parts warranty (years) | 10 Year |
| Heat exchanger warranty | Lifetime |
| Shipping W x H x D (in) | 52.125 x 45.25 x 52.375 |
| Shipping weight (lbs) | 584 |
Documents
- Specification sheet (PDF)
- Installation manual (PDF)
- Service manual (PDF)
- Brochure (PDF)
- Warranty (PDF)
- AHRI certificate (PDF)
- EnergyGuide label (PDF)
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Technical Specifications
Performance
| System Type | Packaged Gas |
|---|---|
| Capacity | 57000 BTU |
| Tonnage | 5 Ton |
| Compressor / Stages | 1 |
| SEER2 | 13.4 |
| EER2 | 11 |
| AFUE | 81 |
| Sound Level | 80 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R-454B |
| Fuel Type | Natrual Gas / Propane |
Physical & Certifications
| Dimensions (W x H x D) | 51.56 x 44.81 x 49.75 |
|---|---|
| Weight | 562 lb |
| Color / Finish | Grey |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
