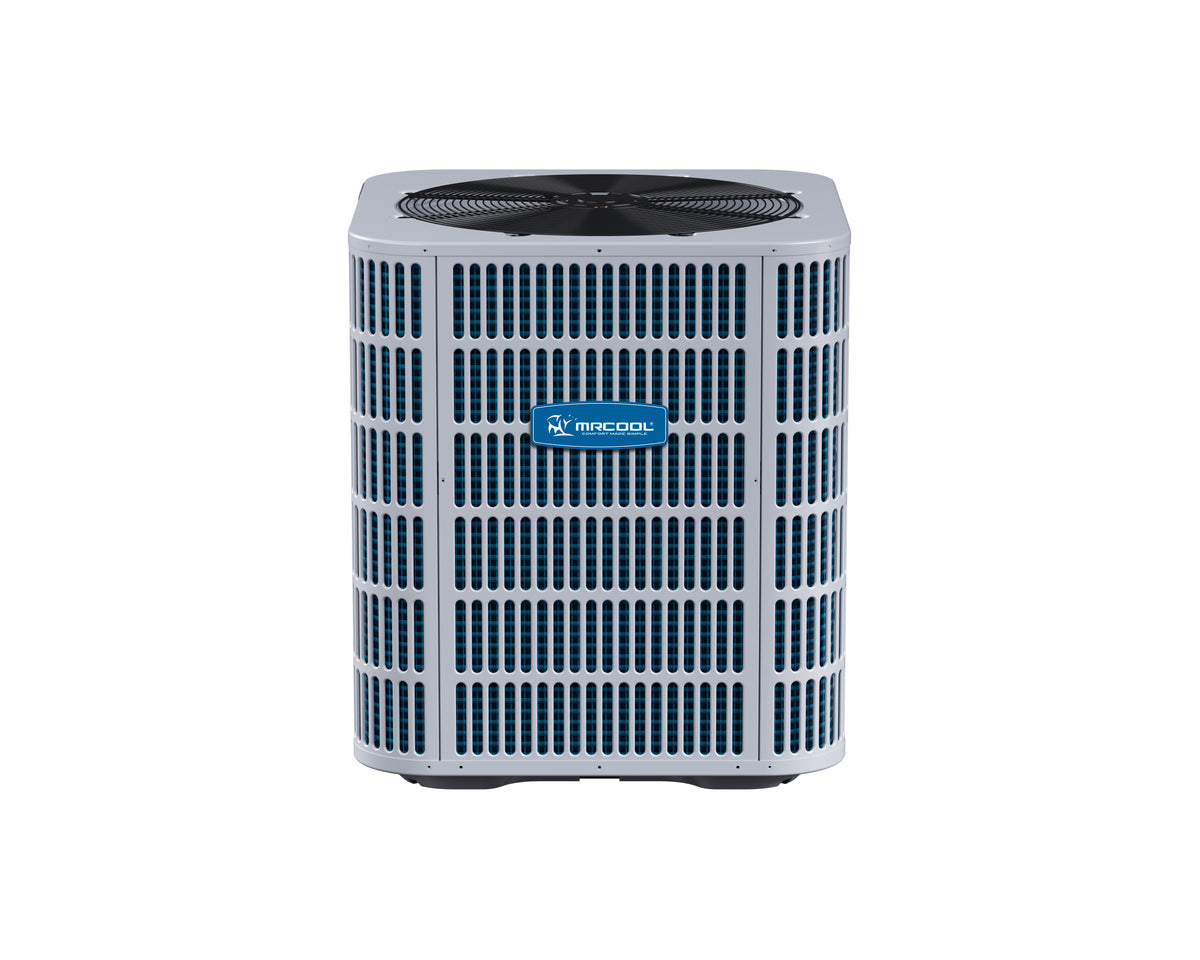

MRCOOL 3 Ton 15 SEER PRODIRECT Series Air Conditioner
SEER2 15.2 | R410A | 208/230V
- 36000 BTU cooling capacity
- Up to 15.2 SEER2 rated efficiency
- Scroll compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
If you’re in the market for an air conditioner that excels in both efficiency and performance, the 3 Ton PRODIRECT™ Series Air Conditioner is your perfect solution. Equipped with an energy-efficient compressor and using R410a chlorine-free refrigerant, it delivers enhanced performance while being environmentally conscious. The system’s reliability is further ensured with a durable condenser featuring inner-groove copper tubing and an aluminum fin. For added convenience, it includes service valves with sweat connections and an easy-access gauge port. You can also add an optional drier filter as an accessory. Designed for both comfort and ease, the 36K condenser operates quietly at just 75 decibels, similar to the sound of a dishwasher, thanks to its unique sound control top design. Its compact size simplifies transportation and installation, while the wire fan discharge grille and steel louver coil guard provide lasting durability and protection for reliable long-term use. Certified by both ETL and AHRI, it has passed rigorous testing to meet the highest quality standards in the HVAC industry. MRCOOL® offers standard 5-year plus an additional 5-year extended parts and compressor warranty upon registration, ensuring dependable performance and peace of mind for years to come.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Service valves with sweat connections and easy-access gauge ports
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585477 |
|---|---|
| Series | PRODIRECT Series 15 SEER2 Air Conditioner |
| Refrigerant charge (oz) | 89 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 21 |
| Max fuse / breaker (A) | 35 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Compressor / Stages | Scroll |
| SEER2 | 15.2 |
| Sound Level | 72 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29 1/8 x 24 15/16 x 29 1/8 |
|---|---|
| Weight | 154 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
