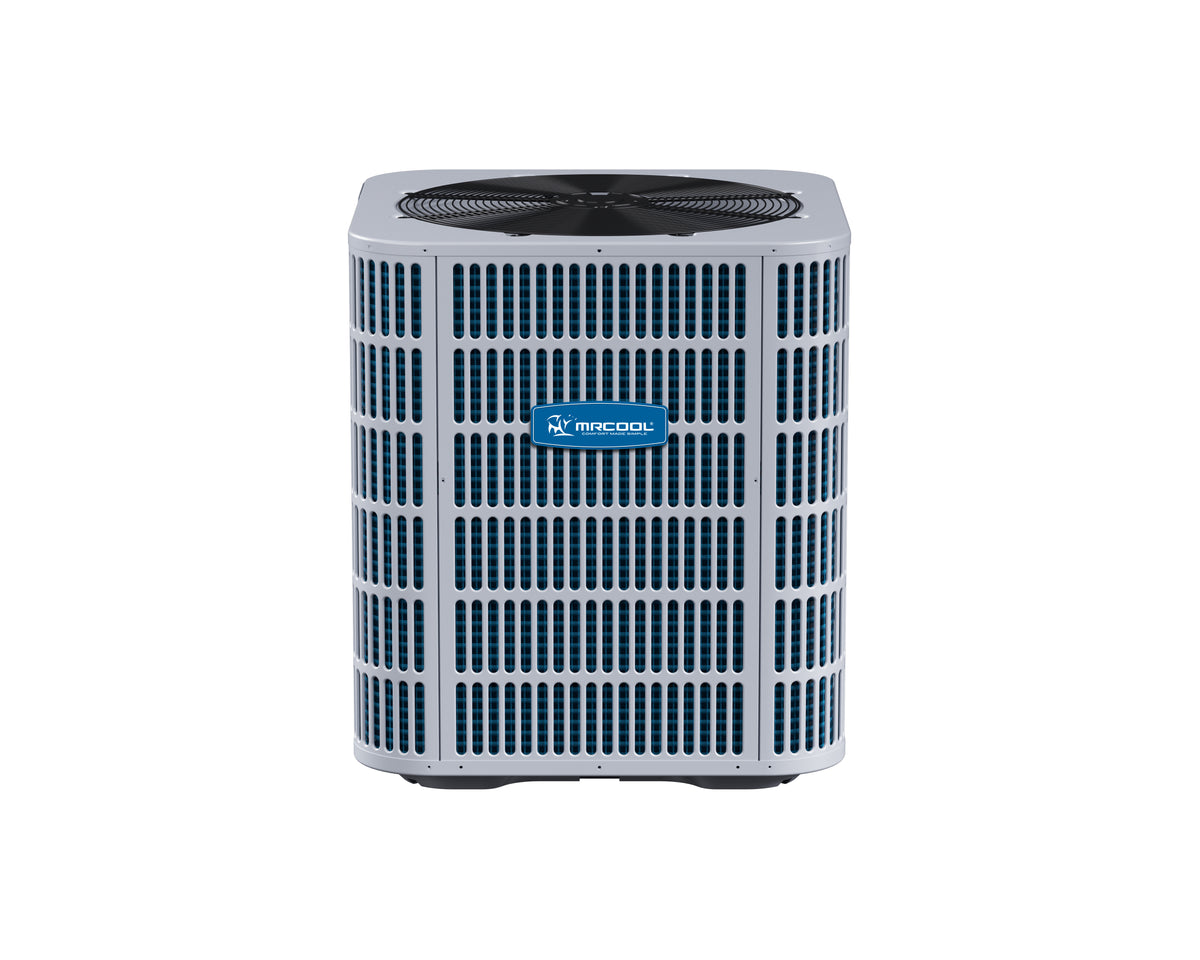

MRCOOL 3 Ton 13.4 SEER2 PRODIRECT Series Air Conditioner
SEER2 13.4 | R410A | 208/230V
- 36000 BTU cooling capacity
- Up to 13.4 SEER2 rated efficiency
- Rotary compressor
- Uses R410A refrigerant
Key Specifications
Product Overview
The 3 Ton PRODIRECT™ Series Air Conditioner provides reliable performance and durable construction for efficient home cooling. It uses chlorine-free R410A refrigerant and achieves a SEER2 rating of up to 13.4, which helps to lower energy costs while maintaining comfort. The condenser features robust inner-groove copper tubing and aluminum fins, ensuring years of dependable operation. Maintenance is straightforward with easy-access gauge ports and service valves with sweat connections, and there is an option to add a drier filter as an accessory. The 36K PRODIRECT™ Air Conditioner combines convenience with quiet operation. It is equipped with a sound-control top, allowing it to operate at just 76 decibels, comparable to a dishwasher, creating a calm and peaceful home environment. Its compact design simplifies transportation and installation, while wire fan discharge grille, steel louver coil guard, and high pressure switch provides long-lasting protection from wear and tear. Certified by AHRI and ETL-listed, this air conditioner meets the highest standards for quality and performance. It is backed by MRCOOL®’s standard 5-year warranty plus an additional 5-year extended parts and compressor warranty upon registration, ensuring that the 3 Ton PRODIRECT™ Series Air Conditioner delivers efficient and reliable cooling you can trust for years to come.
Features
- R410A chlorine-free refrigerant
- Energy-efficient compressor
- Internal protection against high temperature motor overload conditions
- AHRI certified and ETL listed
- Unique sound control top design
- Compact design, easy installation and transportation
- High quality condenser with inner-groove copper tube and aluminum fins
- Wire fan discharge grille
Additional specifications
| UPC | 840255585545 |
|---|---|
| Series | PRODIRECT Series 13 SEER2 Air Conditioner |
| Refrigerant charge (oz) | 92 |
| Cycle (Hz) | 60 |
| Min circuit ampacity (A) | 21.1 |
| Max fuse / breaker (A) | 35 |
Documents
Technical Specifications
Performance
| System Type | Split System Heat Pump |
|---|---|
| Capacity | 36000 BTU |
| Compressor / Stages | Rotary |
| SEER2 | 13.4 |
| Sound Level | 76 dBA |
Electrical & Fuel
| Voltage | 208/230V |
|---|---|
| Phase | Single Phase |
| Refrigerant | R410A |
| Connection Size | Liquid 3/8" / Suction 3/4" |
Physical & Certifications
| Dimensions (W x H x D) | 29 1/8 x 24 15/16 x 29 1/8 |
|---|---|
| Weight | 147 lb |
Shipping & Delivery
Manufacturer Warranty
Covered by MRCOOL's limited warranty. Warranty terms are set by MRCOOL and differ by product line — whether registration is required, and whether the installation has to be performed by a state-licensed HVAC contractor, is not the same across the range. In every case coverage depends on the unit being installed according to MRCOOL's instructions and all applicable codes and permits. MRCOOL's warranty document for this model is the controlling source; ask us and we'll send you the one that applies.
Professional Installation Recommended
Most HVAC equipment must be installed and connected by a licensed professional to remain safe, code-compliant, and eligible for manufacturer warranty coverage. If you're unsure about installation requirements, contact us before you order.
